Kolink Mini ITX/Micro ATX Case Satellite Black

Preces apraksts angļu valodā:
The first impression of the Satellite by Kolink may deceive, but in this small and discreet case of the Hungarian manufacturer can be mixed with a hardware hardware ATX power supply. A pre-installed fan and many mesh and mesh surfaces ensure sufficient cooling of the components.

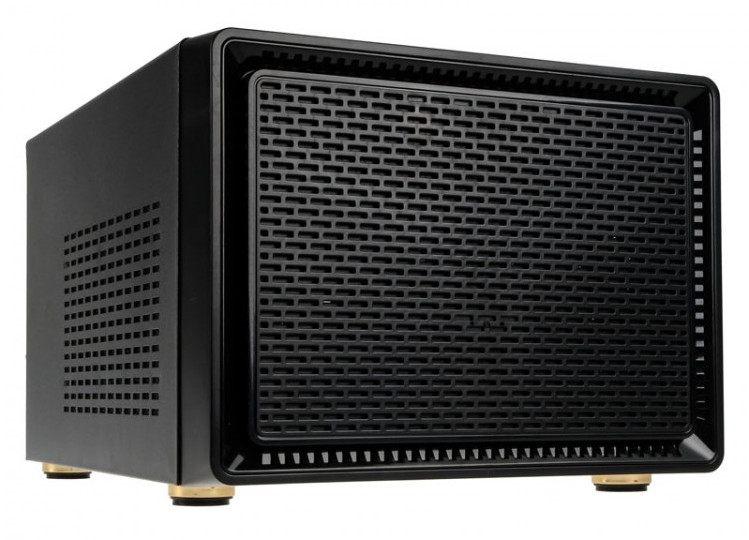

The complete front is in principle a large black mesh surface, which makes the case look very subtle. The I / O panel in the front edge of the lid comes with two USB 3.0 portsequipped with two audio ports (In / Out), status LED indicators and power and reset button. In the rear area of ​​the lid there is another mesh grid, which is mounted slightly raised on the housing and on both sides of the housing there are ventilation grills for cooling the components or as an exhaust opening for the power supply.
More space than you think: gaming hardware and up to 4 SSDs Depending on the size of the built-in ATX power supply , dual-slot graphics cards up to 280mm in length can be installed in this small case. An up to 220 mm long power supply restricts the GPUs to 190 mm, with a PSU up to 140 mm, a graphics card up to 280 mm can be installed. For CPU coolers, an impressive 165 mm in height are possible, which can be mounted on a Mini-ITX motherboard or certain Micro-ATX motherboards.

Attention: Only very compact Micro ATX motherboards with a maximum of three expansion slots and the dimensions of 22,6 cm x 18,0 cm can be installed!

Up to four fast 2.5-inch SSDscan be found on two brackets at home, but can also give way to up to two 3.5-inch hard drives. One of these brackets is located underneath the lid and hangs down either two SSDs or two HDDs, while the right side mounted bracket can accommodate two 2.5 "drives.

A single 120 mm case fan is installed in the back and for external water cooling there are two hose passages above the two PCI panels. The combination of subtle design and extensive hardware support makes the Satellite an insider's tip among mini-performance enclosures.

Technical details:

• Dimensions: 260 x 190 x 280 mm (W x H x D)
• Material: steel (body), plastic (front)
• Weight: approx. 2 kg
• Color: Black
• Form factor: Mini-ITX, Micro-ATX ( Attention: maximum 22,6 x 18,0 cm!)
• Total possible fan:
  1x 120 mm (back)
• Pre-installed:
  1x 120 mm (back)
• Drive bays:
  2x 3.5 inches (internal)
  4x 2.5 inches (internal)
• Power supply: 1x standard ATX (optional)
• Expansion Slots: 2
• I / O Panel:
  2x USB 3.0
  2x Audio In / Out
  1x Power Button
• Maximum graphics card length: 280 mm
• Maximum CPU cooler height: 165 mm
• Maximum network part length: 140 mm (with GPU up to 190 mm) / 220 mm (with GPU over 190 mm)
