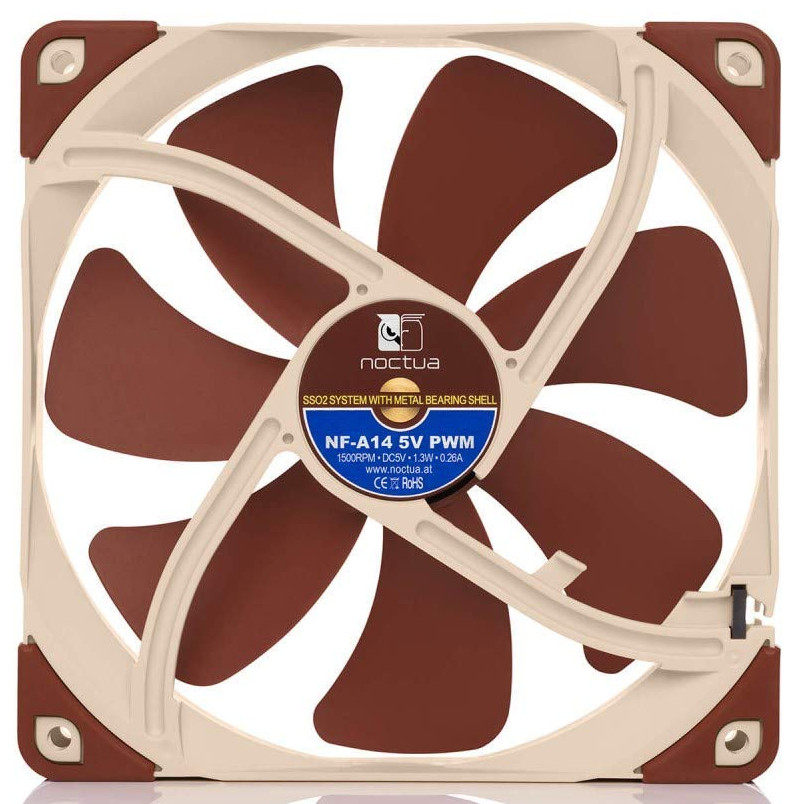

Noctua Fan NF-A14 5V 140mm PWM

Код товара: 522373

24,00 / шт.
Услуга курьера начиная от 3,99 €*. Предполагаемая доставка 15 декабря
* Стоимость доставки рассчитывается на базе платы за обслуживание и веса товара: 0.10 кг
Заберите бесплатно. Заказ будет выполнен предположительно 14 декабря
Доставка в почтовый автомат 0,99–1,99 €. Предполагаемая доставка 15 декабря
Информация о товаре

Свойства изделия

Общие характеристики

Тип продукта Охладители воздуха
Бренд Noctua
Модель NF-A14 5V 140mm PWM
Цель применения
У кулер есть несколько видов применения - процессору, видеокарте, корпусу, и др.
Для корпуса

Дополнительно

Гарантия 24 месяц
Дополнительная информация Размеры: 140 x 140 x 25 мм (Ш x В x Г). Материал: пластик. Скорость: 300 - 1500 об/мин. Максим. расход воздуха: 140.2 м³ / ч. Максим. статическое давление: 2.08 мм H2O. Максим. уровень шума: 24.6 дБ (A). Напряжение: 5 В. Потребляемая мощность: 1.3 Вт, 0.26 А. Подключение: 4-контактный PWM. Продолжительность жизни: 150 000 ч. Гарантия производителя: 6 лет. . Комплект: USB адаптер кабеля питания. Комплект адаптеров OmniJoin. 30 см удлинитель кабеля. 4х винты для вентилятора. 4x ингибитор вибрации.
Описание товара на английском языке:

The NF-A14 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-A14 140mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin adaptor set and 6-year manufacturer’s warranty, the NF-A14 5V PWM is a premium choice for demanding 5V applications that require PWM control.



Details

Award-winning NF-A14 design
Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-A14 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.

Flow Acceleration Channels
The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A14 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Polarity protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.

SSO2 Bearing
The NF-A14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A14 sports a CNC milled bearing shell made entirely from brass.

OmniJoin Adaptor Set
Many devices featuring 5V fans use proprietary fan headers, so the NF-A14 5V PWM comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok connectors and you can plug the NF-A14 5V PWM to proprietary fan headers!

USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!

Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.
