Экстракторы Techly 3D Cat 5e/6, черный цв.

Techly HDMI HDbitT Extender with IR 3D Cat 5e/6 120m
Описание на английском языке:

The HDMI extender HDbitT offers all the benefits of the latest transmission technology - HDbitT, allowing you to extend the HDMI audio / video signal with a resolution of 1080p 60Hz up to 120m using a single network cable. It supports IR signal transmission, to control media playback of the source device from the location where the display is located.

Technical specifications
• Transmitter Kit and IR receiver with HDMI HDbitT
• Transmission protocol: HDbitT
• Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
• Network cable: UTP / STP Cat5E / 6
• Transmission distance up to 120m transmission distance for 1080p 60Hz Full HD on a single CAT6 cable
• IR Signal: Supports IR devices 20-60KHz
• Operating Temperature: 0°C - 60°C
• Power supply DC5V / 1A
• TX consumption: 3.5W; RX: 3W

Installation Requirements
• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)
• HDMI screens as SDTV, projector with HDMI port.
• Network cables: Network cables UTP / STP Cat5e / 6, that meet the standards EIA568B
• Transmission length: 80m CAT5 / CAT5E100m / CAT6 120m

Connection

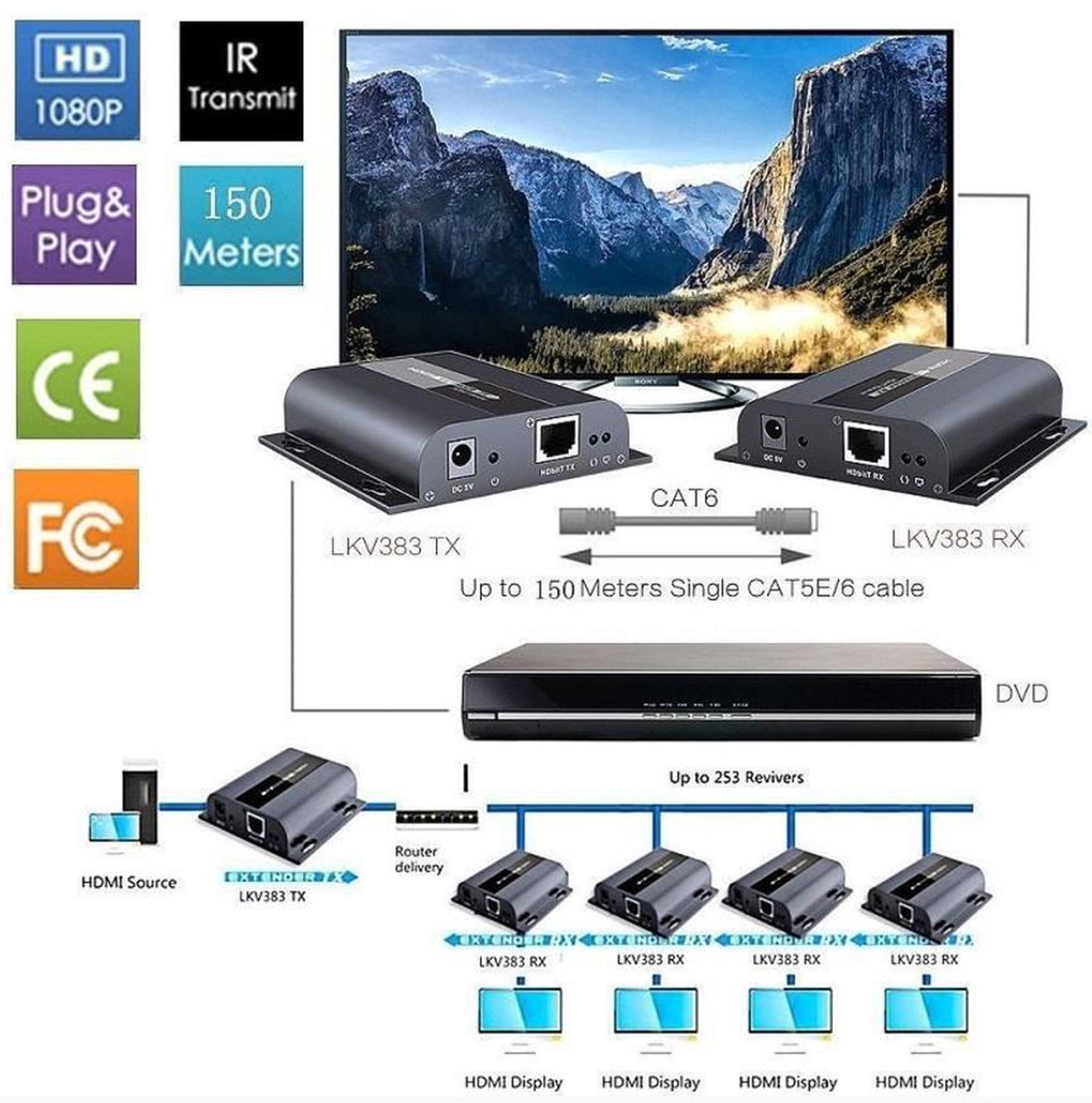

• Point-to-point connection: up to 120 meters transmission distance through single CAT6 cable (with a high quality cable can reach up to 150 meters)
• Connection with Router: Using a router / repeater, you can reach unlimited extensions.
• Point-to-Multipoint Connection: Using a router / switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function.
Note: We recommend the use of a gigabit switch (1000Mbps) for the LAN transmission.

Dimensions
• Width: 96.8 mm
• Depth: 94 mm
• Height: 23.7 mm

Certifications
• EC
• FCC
• RoHS
• WEEE

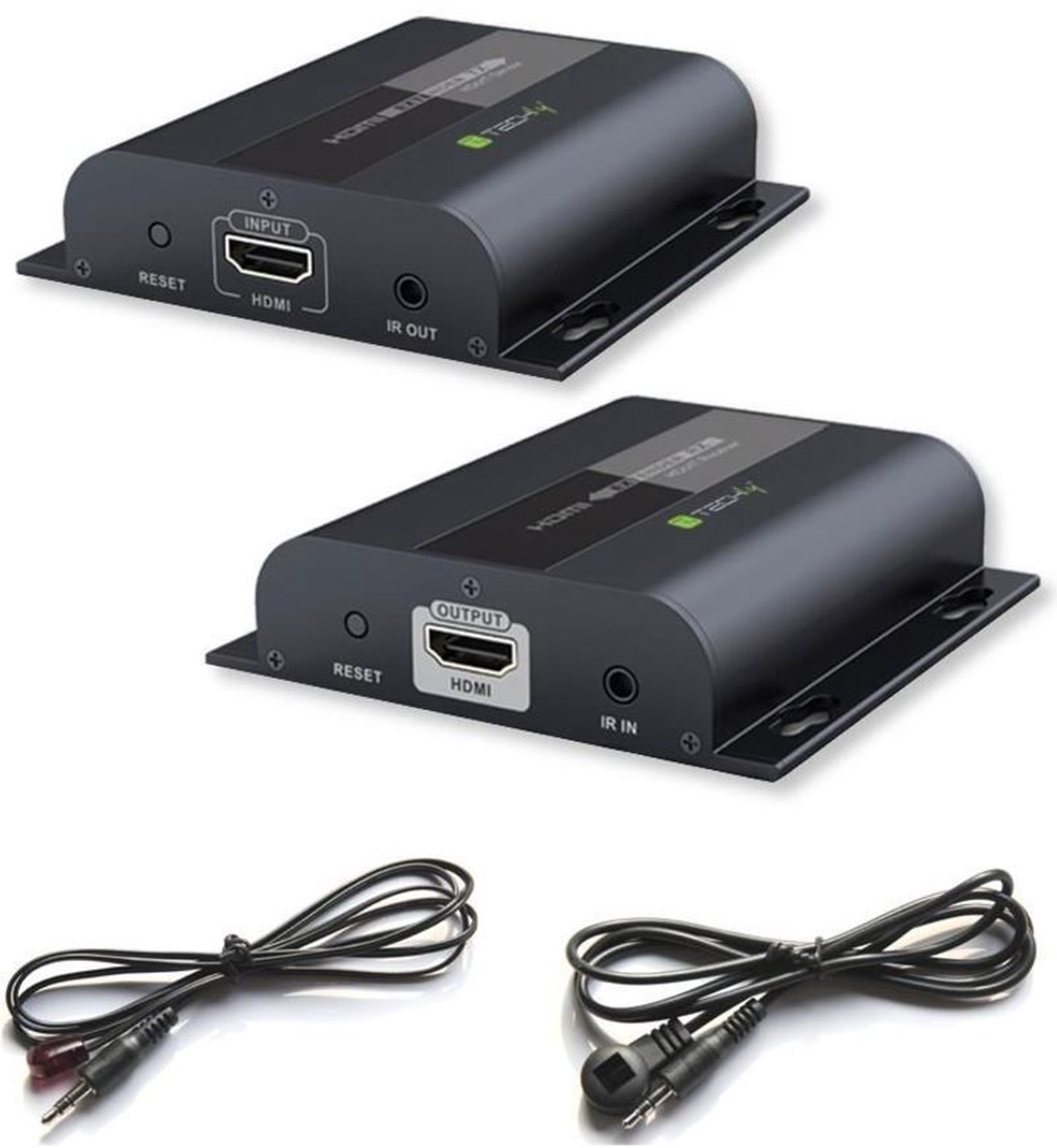

Package Contents

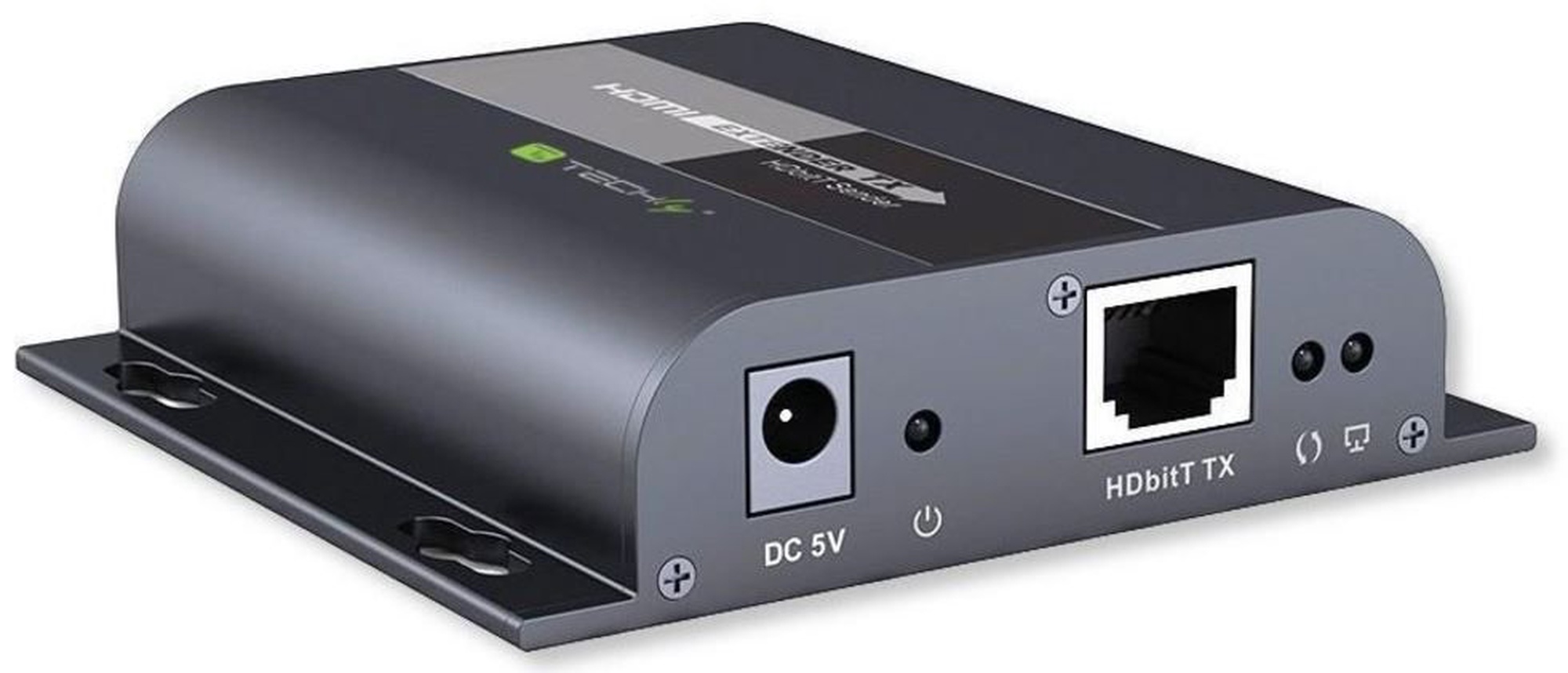

• 1x HDMI Transmitter EXTENDER TX

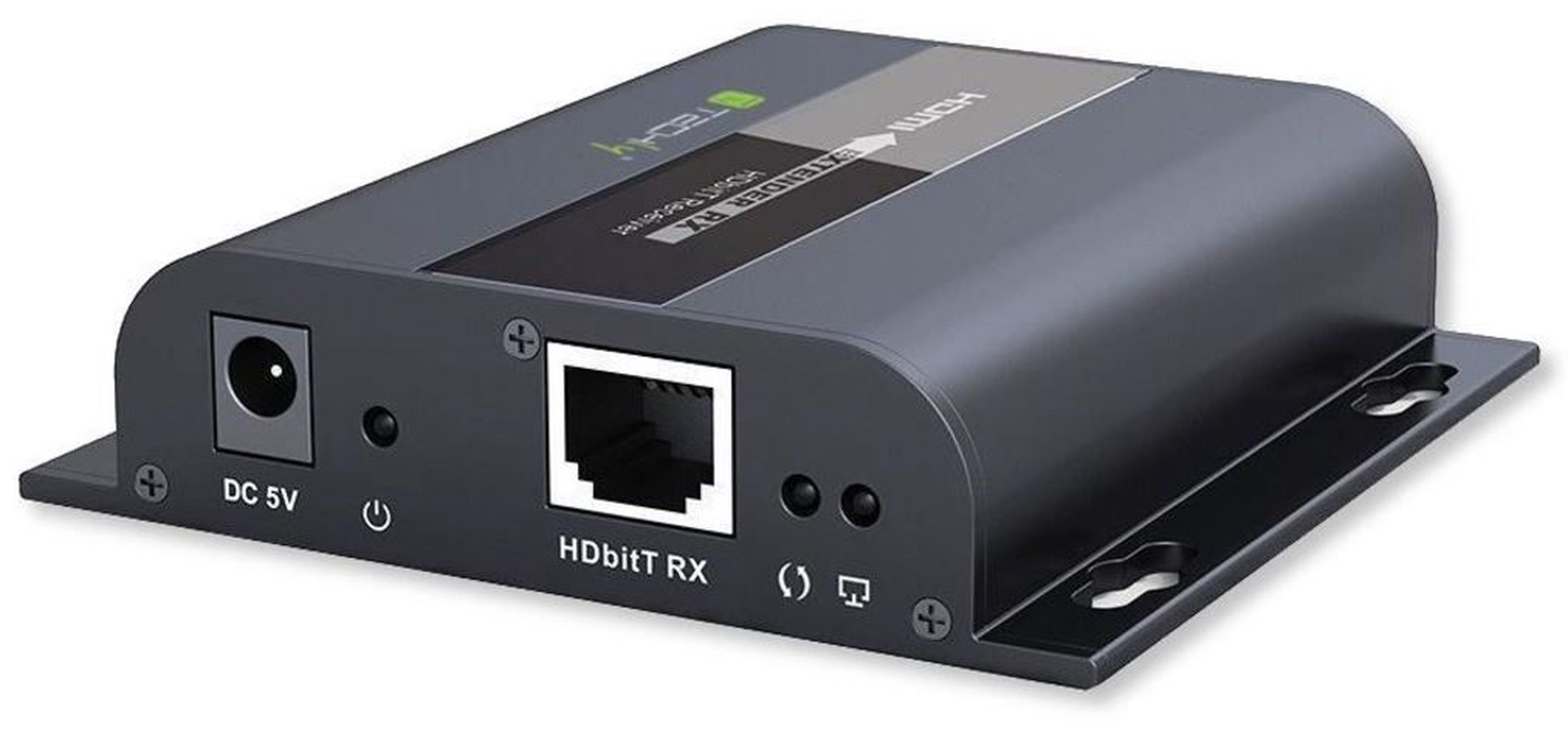

• 1x HDMI EXTENDER RX Receiver
• 2x Power Supply DC5V / 1A
• 1x extension cable IR Blaster
• 1x IR receiver extension cable
• 1x Instruction Manual
