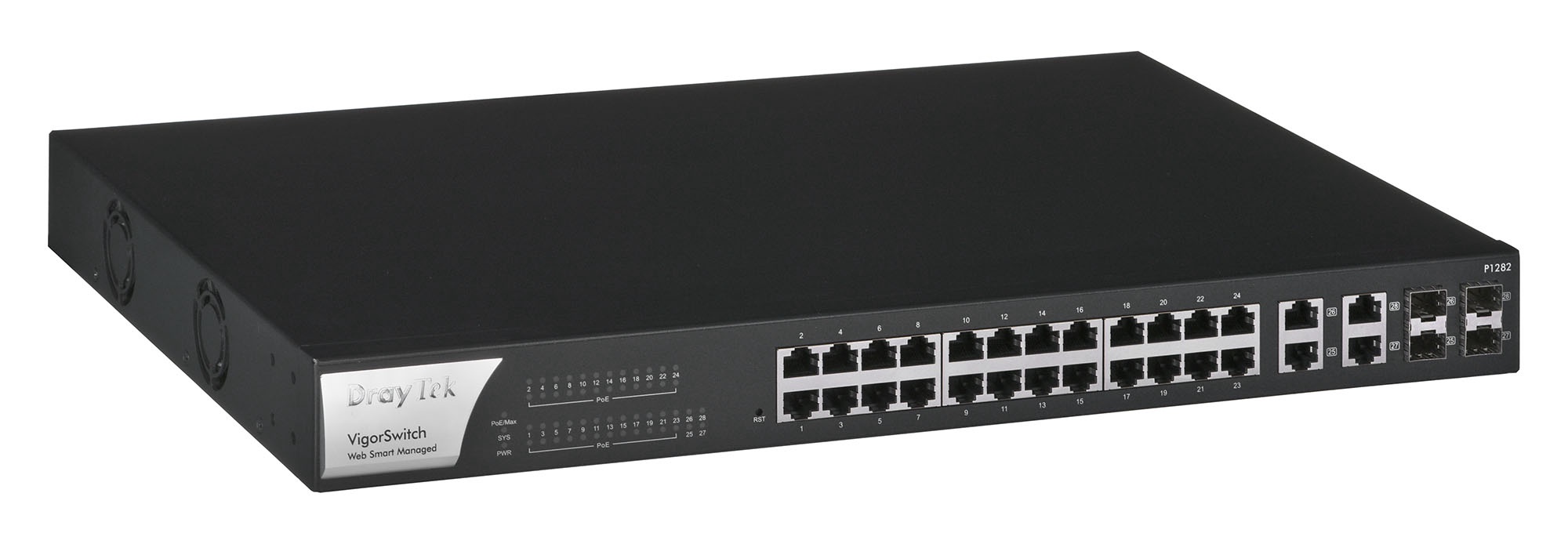

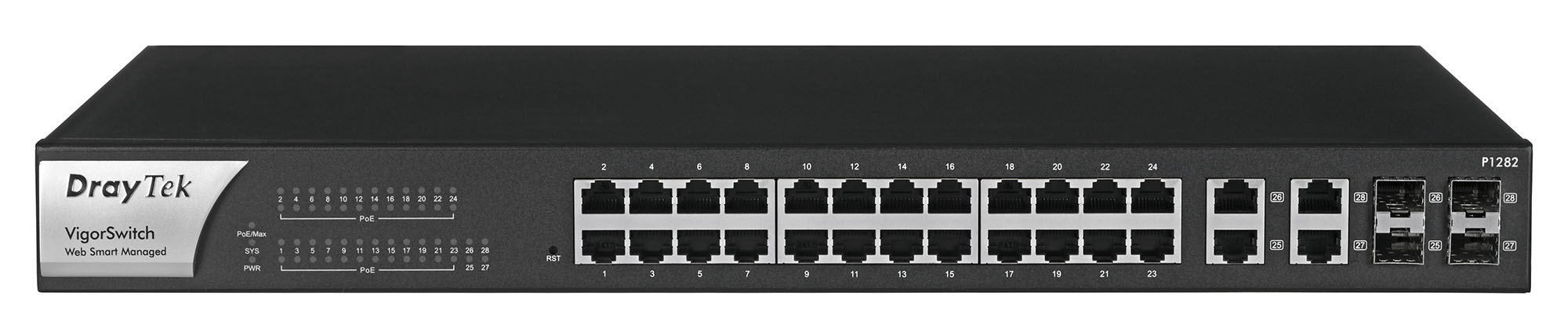

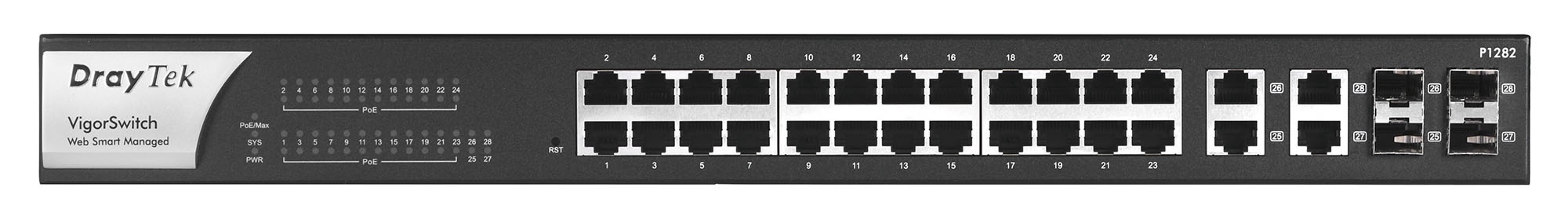

Коммутатор (Switch) DrayTek VigorSwtich P1282

PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.

Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more

Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.

Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.

Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.

Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.

ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy

It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.

To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.

With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.

IP Conflict Detection & Prevention

Conflict Detection
keeps an eye on the environment and notify the administrator of any IP conflicts.

Conflict Prevention
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.

LAN Device Check
Ping Watchdog for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stop responding to the ping, PoE cycle a port or send email alert.

LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.

Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.

Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.

System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
