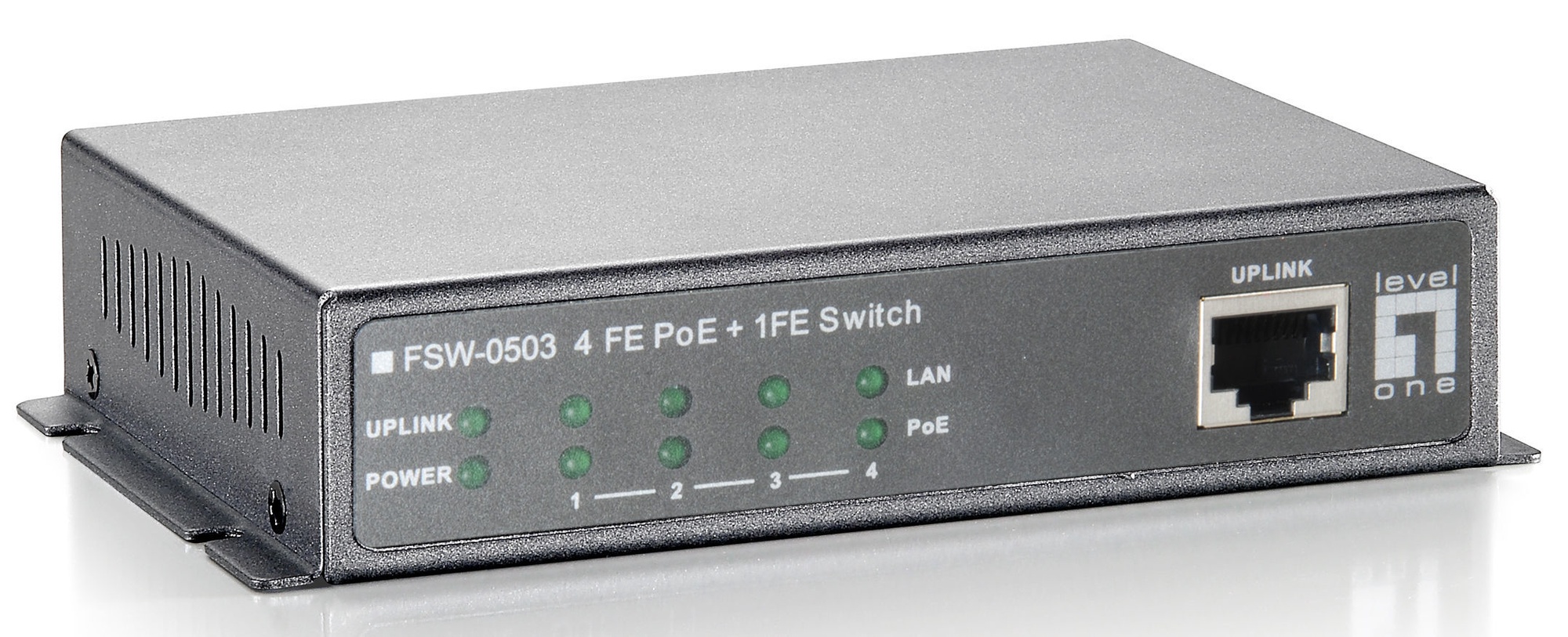

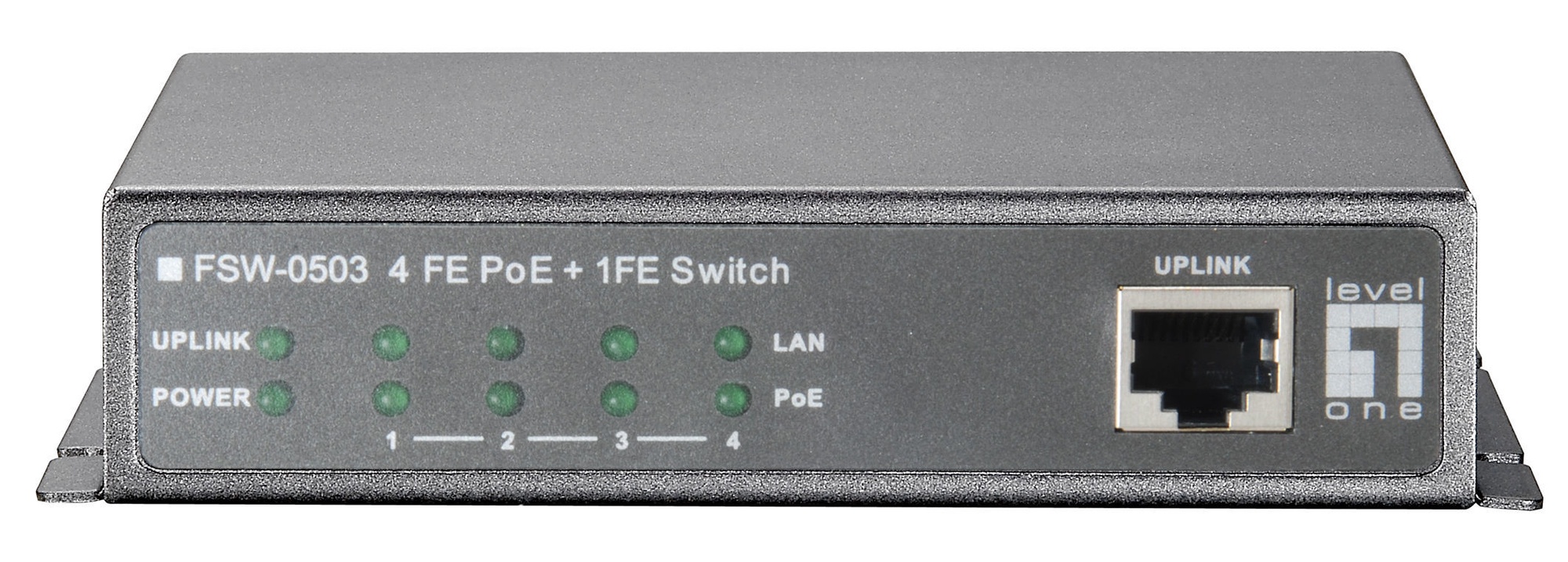

Коммутатор (Switch) LevelOne FSW-0503W65

Key Features
- Provides flexibility of 4 x 10/100BASE-TX PoE ports
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)

Buffer Memory: 48KB

Port:
4 x 10/100Base-TX RJ-45 PoE Ports
1 x 10/100Base-T RJ-45 Uplink Port
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP

Indicator: Power, Uplink, LAN 1~4 port, PoE 1~4 port
Transmission Method: Store-and-Forward
Power Input: 56VDC

Power Consumption:
< 65W (FSW-0503)
< 90W (FSW-0503W90)

MAC Address Table: 1K
Data Rate: 10/100Mbps

Operating Temperature (°C):
Operating: 0°C ~ 45°C
Storage: - 40°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10% ~ 90%

PoE:
Power Budget: Max. 61.6W (FSW-0503)
Max. 87W (FSW-0503W90)
PoE Standard: IEEE 802.3af Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 48V DC, Max. 15.4 watts (802.3af)
Power Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
