Коммутатор (Switch) LevelOne GEL-5261

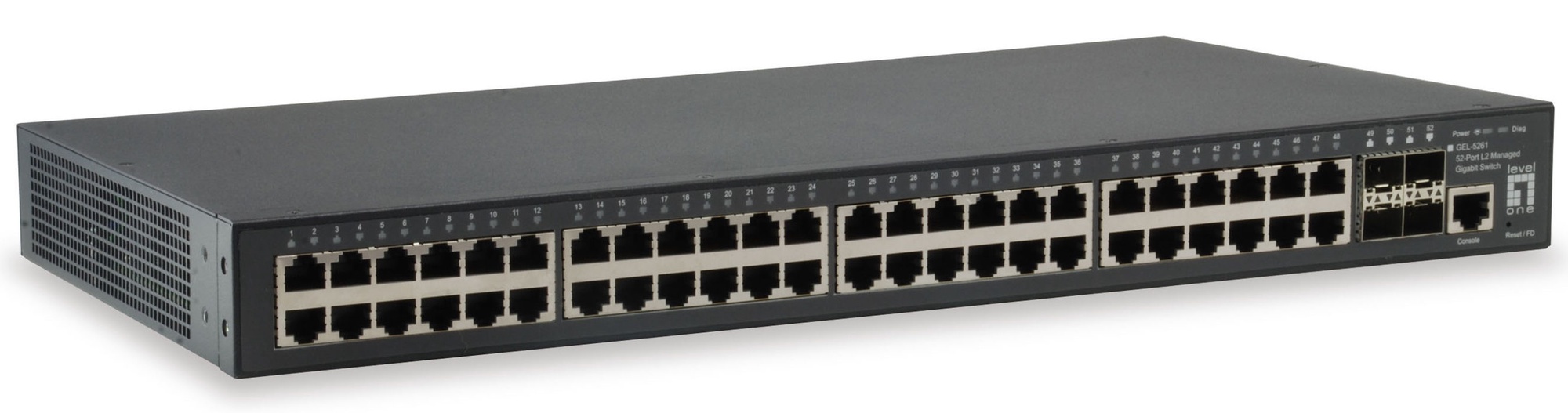

LevelOne KILBY 52-Port L2 Managed Gigabit Switch GEL-5261

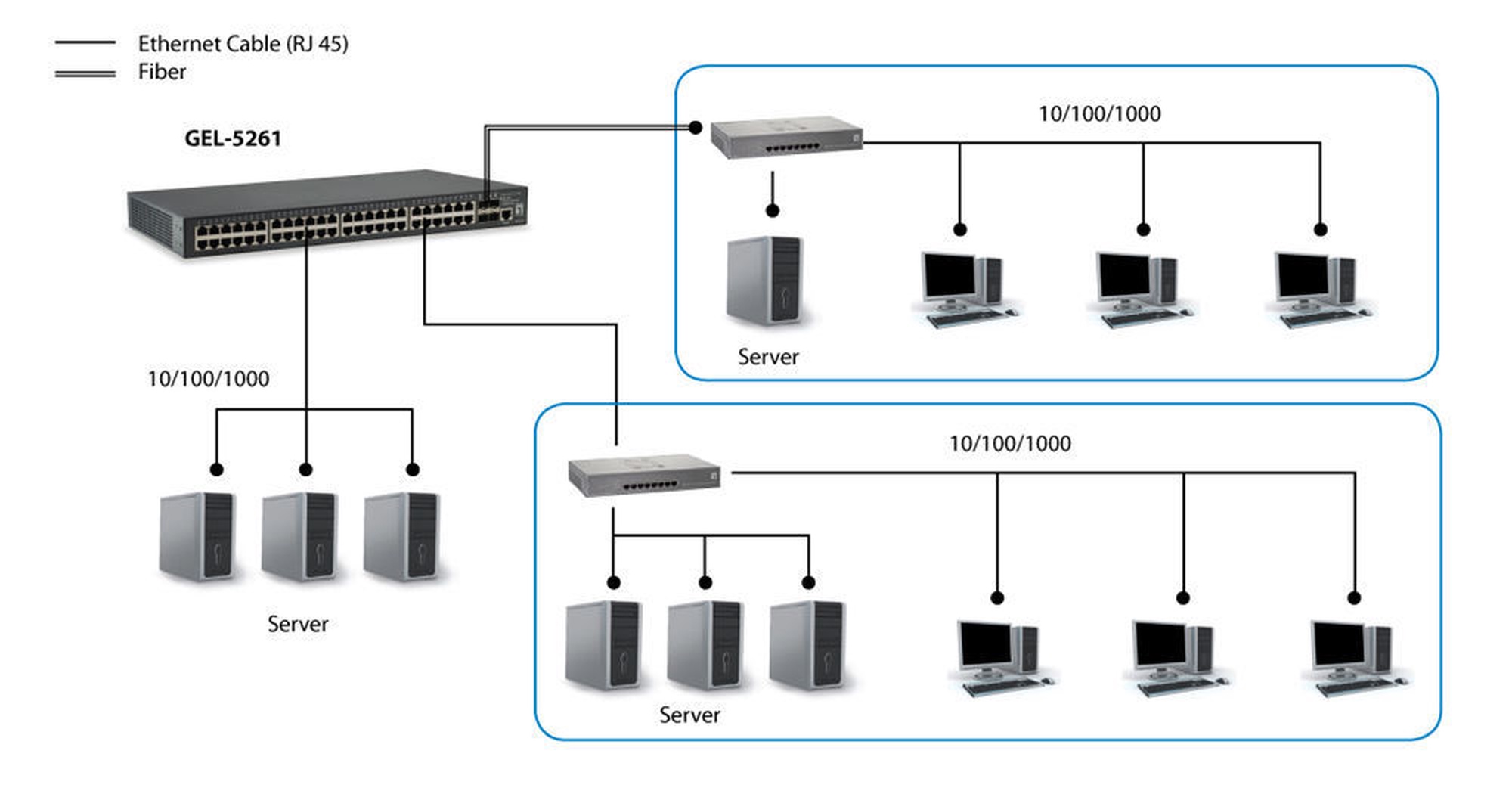

The LevelOne GEL-5261 is an intelligent L2 Managed Gigabit Switch with 48 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-5261 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X,Gigabit Ethernet
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.1D MAC Bridges
IEEE 802.1d Standard Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet

Protocols:
Link Layer Discovery Protocol (LLDP)
Universal Plug and Play (UPnP)

Memory: 32MB
Buffer Memory: 12Mbits

Port:

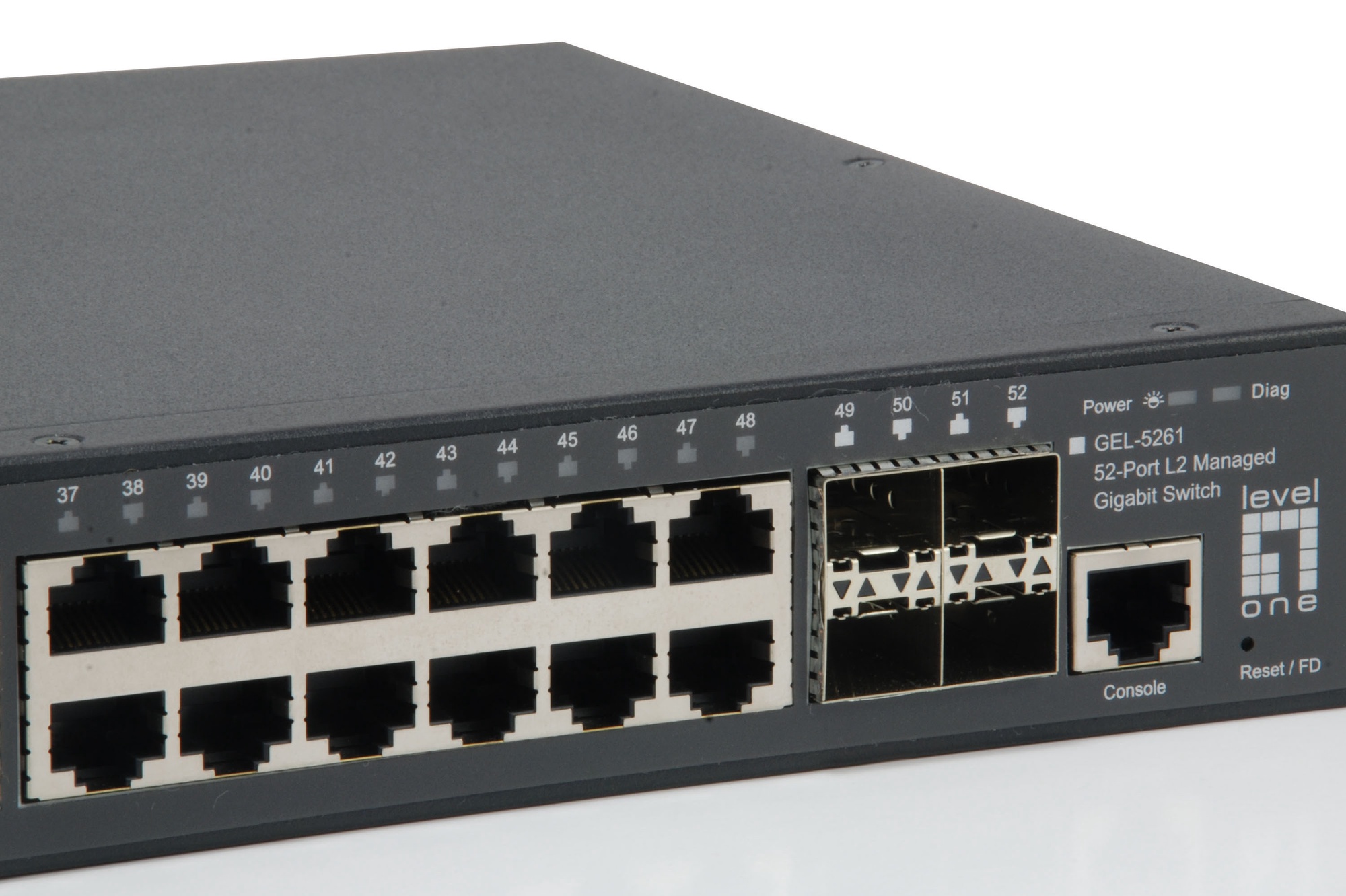

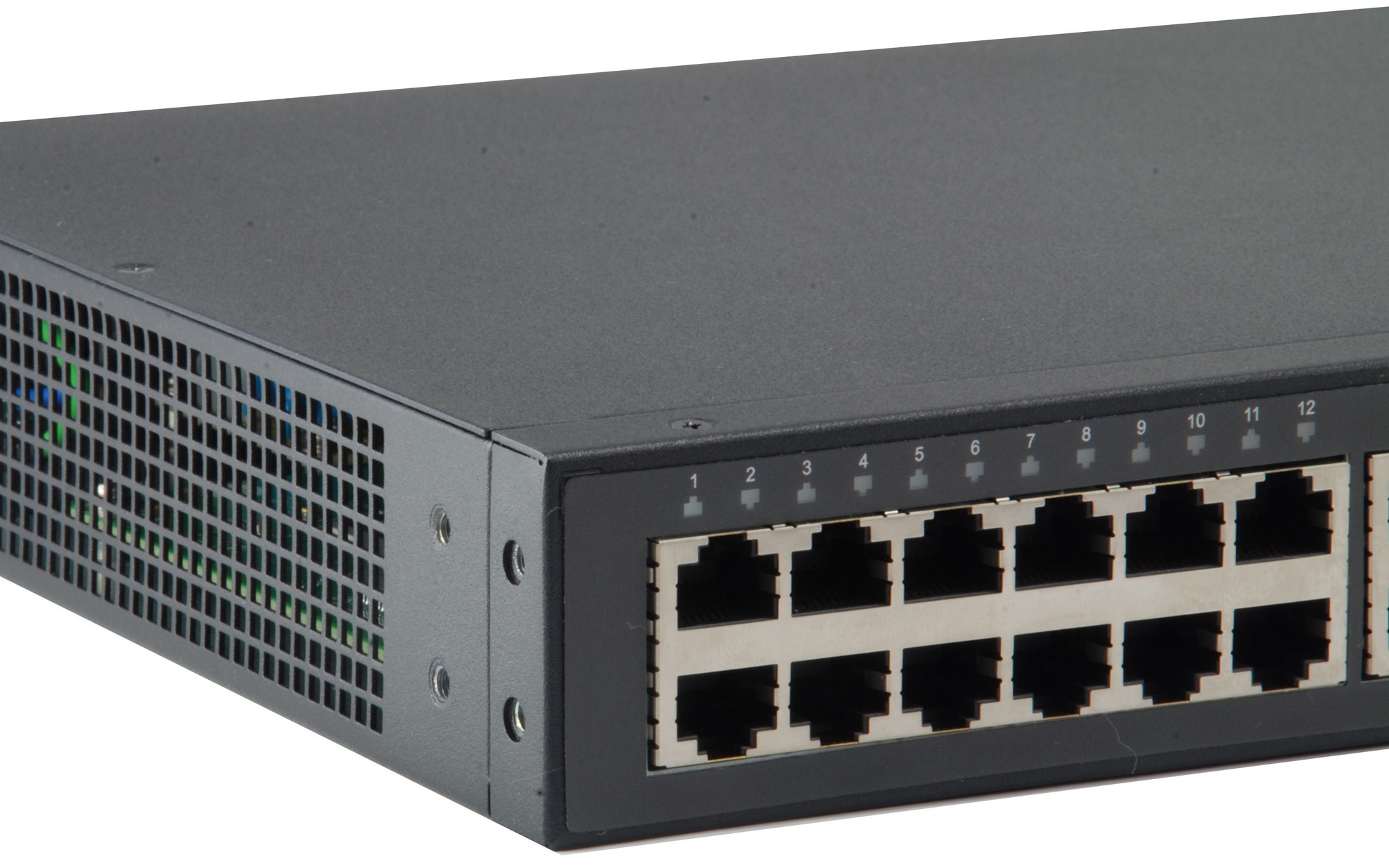

48x RJ-45 10/100/1000BASE-T ports
4 x 100/1000Base-X SFP Slots

Button/Knob: Reset / Factory Default Button
Indicator: Power; Link/Active
Transmission Method: Store-and-Forward

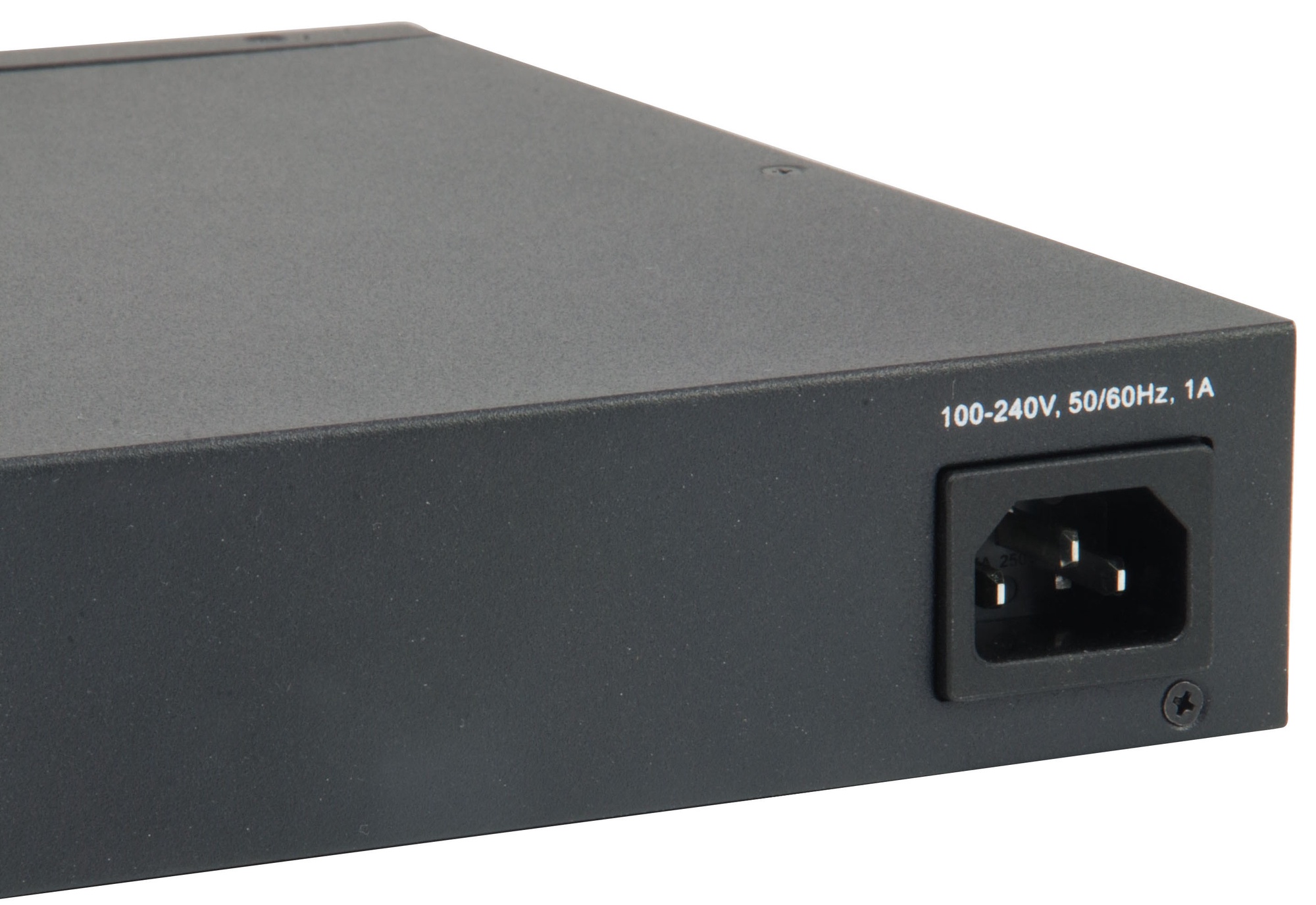

Power Input: 100-240V AC, 50-60 Hz, Internal Power Supply
Power Consumption: 20W
Backplane (Gbps): 104Gbps
MAC Address Table: 16K
Data Rate: 10/100/1000Mbps
Acoustic Noise: 54.2 dB (A)

Power Saving:
IEEE 802.3az Energy Efficient Ethernet:
- Automatically turns power off on RJ-45 port when detecting link down or Idle of client
- Cable length detection: Adjusts the signal strength based on the cable length
- Reduces the power consumption for cables shorter

Heat Dissipation: 136.48 (Btu/H)
Operating Temperature (°C): 0-50°C
Operating Humidity (Non-condensing): 10-90%
Mount: desktop & 19-inch rack-mountable

General:
Quality of Service (QoS):
8 hardware Priority Queues per port
Traffic classification based on IEEE 802.1p CoS
IPv4/IPv6 precedence/ type of service (ToS) / DSCP based
Rate Limiting - Ingress policer egress shaping and rate control
Spanning Tree:
Bridge Protocol Data Units (BPDU)
IEEE 802.1D MAC Bridges
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Virtual Local Area Network (VLAN):
802.1Q tag-based VLAN - up to 4K VLANs and 4K VLAN IDs
Port-based VLAN
MAC-based VLAN
DHCP: DHCP Client; DHCP Relay (Layer 2)
IPv6:
IPv6 Ping / Trace /Telnet / Syslog / TFTP
IGMP:
IGMP v1/v2/v3 snooping; IGMP groups: 511, IGMP Queried; IGMP Filtering /Throtting
Port Mirroring:
One to One /One to Many
IEEE 802.3ad LACP Trunk

Security:
DDOS Protection
CPU Guard
Port Isolation
Port Mirror /Remote Mirror
Broadcast / Multicast / Unknown Storm Control
802.1X
ACL
Port Security
MAC Filter / MAC Authentication
AAA
IP Source Guard
SSH
G.8032
IP clustering

Management:
NTP/SNTP
Dual Image /Configuration
Firmware upgrade /download (HTTP/TFTP/FTP)
RMON/ SNMP
Management Access ( Console / SNMP/ Web / Telent / SSH)
Memory Flash Log
Event /Error Log
DHCP v4/v6 Snooping
DHCP Snooping Option82

L3: Static Routing
Ease of Use: Dashboard
Packet Forwarding Rate: 77.4 Mpps
Jumbo Frame (K): 10K

MTBF:
25 degreeC: 534,057 hrs
45 degreeC: 154,383 hrs
