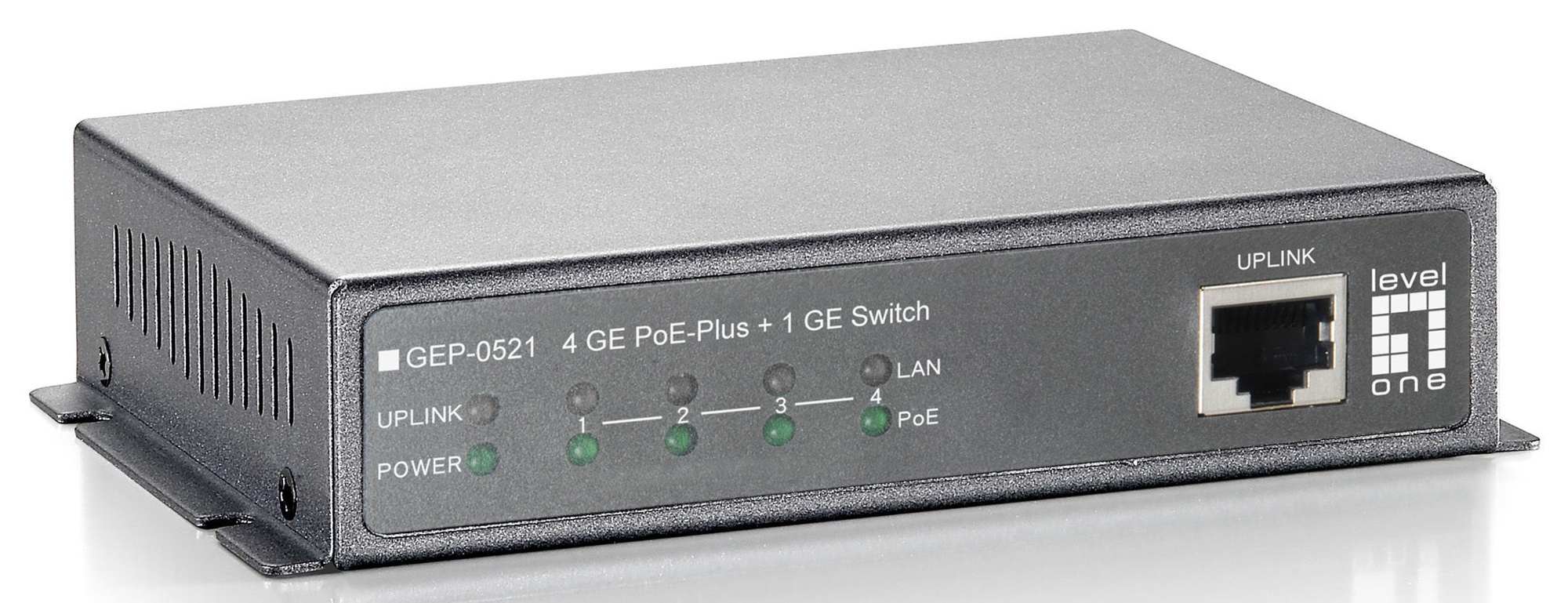

Коммутатор (Switch) LevelOne GEP-0521

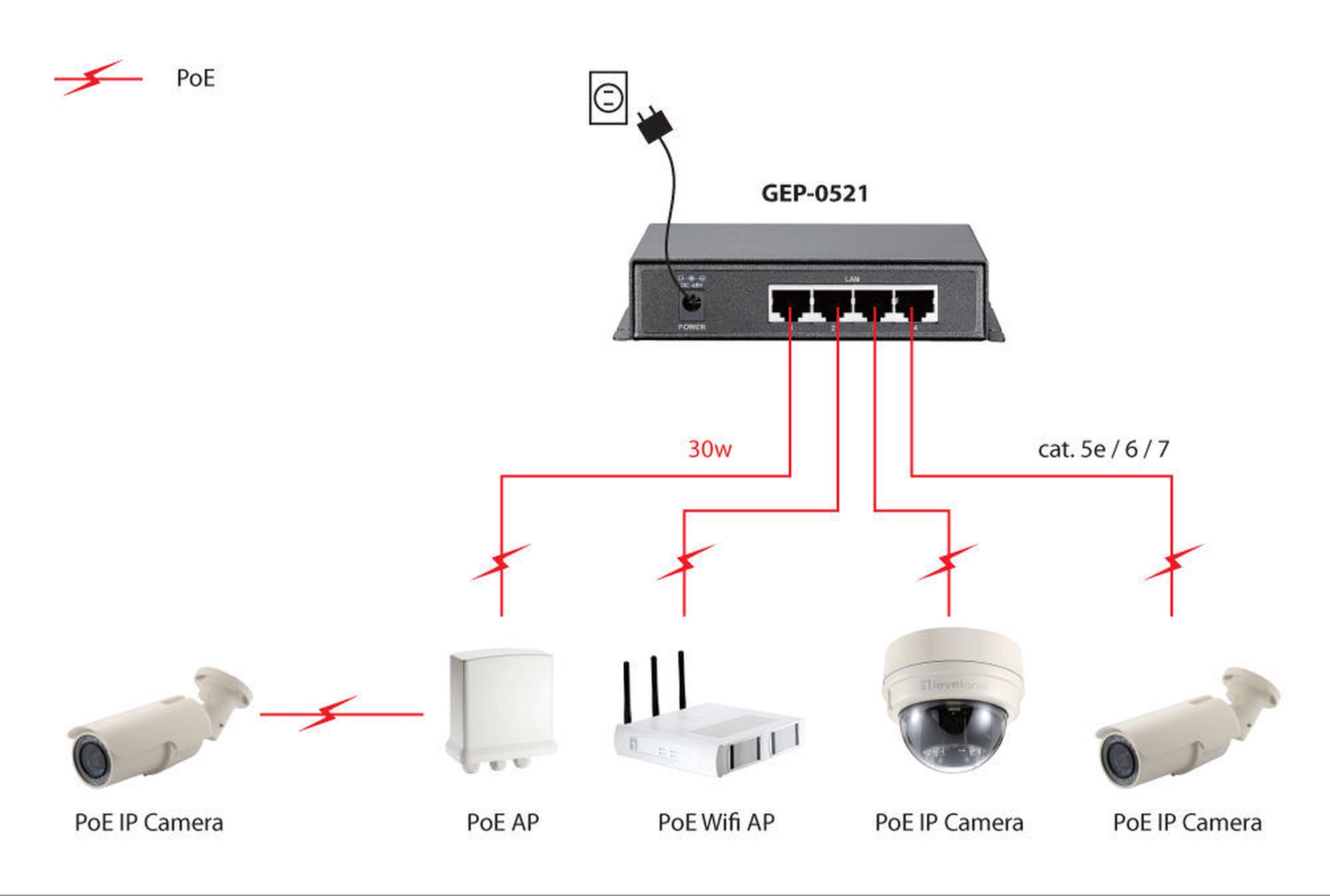

The LevelOne GEP-0521 provides 5 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 115W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefers an inexpensive solution for PoE deploying infrastructure.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet

Buffer Memory: 104KB

Port:

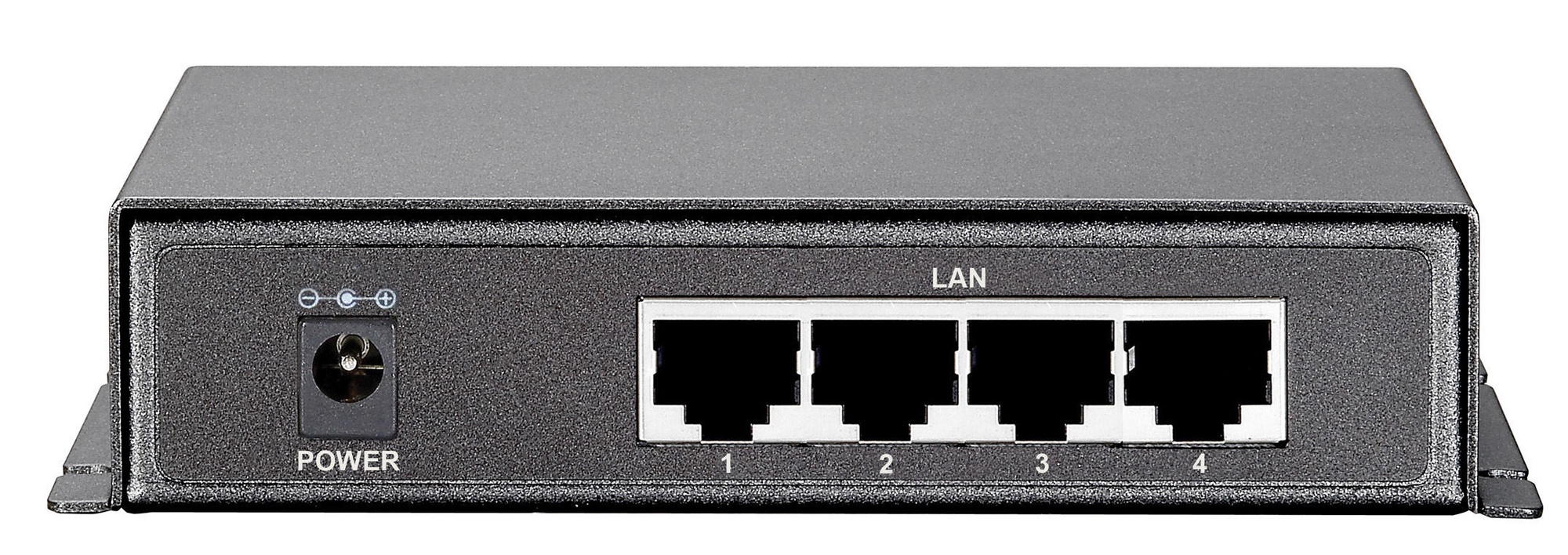

- 4 x 10/100/1000Base-T RJ-45 PoE-Plus Ports
- 1 x 10/100/1000Base-T RJ-45 Port

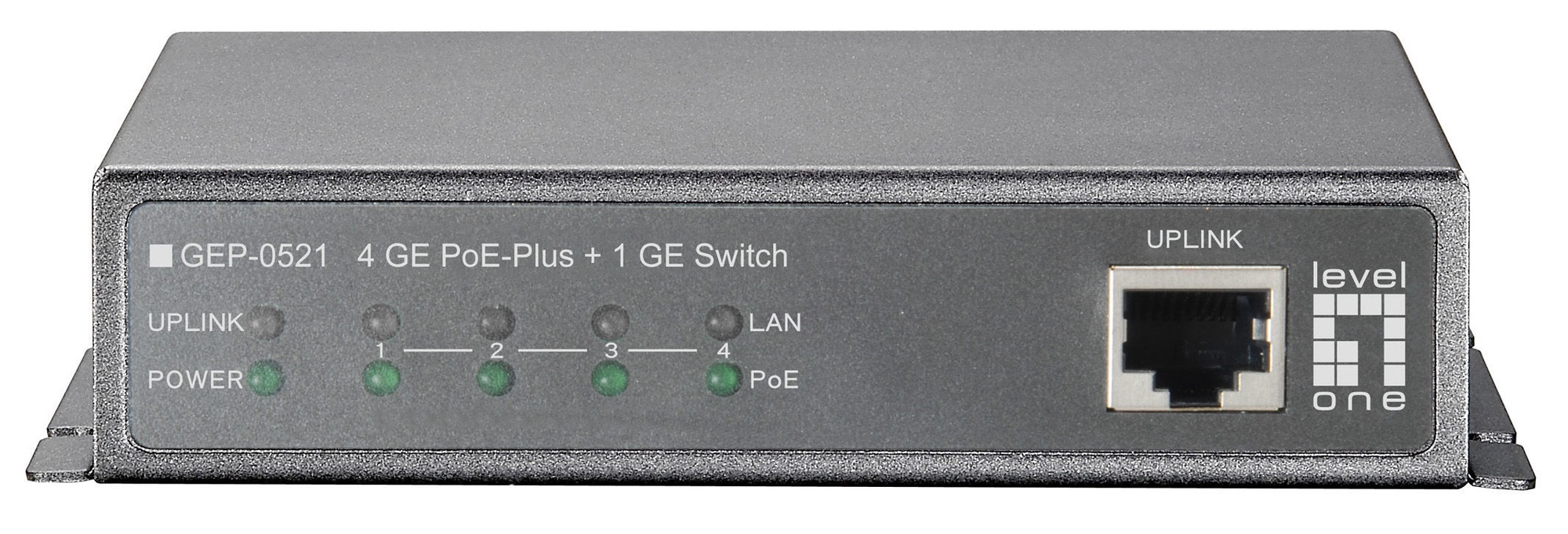

Indicator: Power; Uplink; Link/Active; PoE
Transmission Method: Store-and-Forward
Power Input: 100-240V AC, 50-60 Hz, External Power Adapter
Power Consumption: <120W
Backplane (Gbps): 10Gbps
MAC Address Table: 1K
Data Rate: 10/100/1000Mbps

Power Saving:
IEEE 802.3az Energy Efficient Ethernet:
- Automatically turns power off on RJ-45 port when detecting link down or Idle of client
- Cable length detection: Adjusts the signal strength based on the cable length
- Reduces the power consumption for cables shorter

Operating Temperature (°C):
Operating: 0°C ~ 50°C
Storage: -20°C ~ 70°C

Operating Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10 ~ 90%

Mount: Desktop and Chassis Mountable
General: Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame

PoE:
Power Budget: Max. 115W
Power Output: Up to 30W per port
Protection: Circuit protection to prevent power interference between ports
Pin Assignment: 1/2(+), 3/6(-)

Packet Forwarding Rate:
1000Mbps port - 1,488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps

Jumbo Frame (K): 8K
