Коммутатор (Switch) LevelOne GEP-2421W500

The LevelOne GEP-2421 series are unmanaged Gigabit PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-2421 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Standards:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Memory: MX25L4005AMC-12G
Buffer Memory: 4.1Mbit

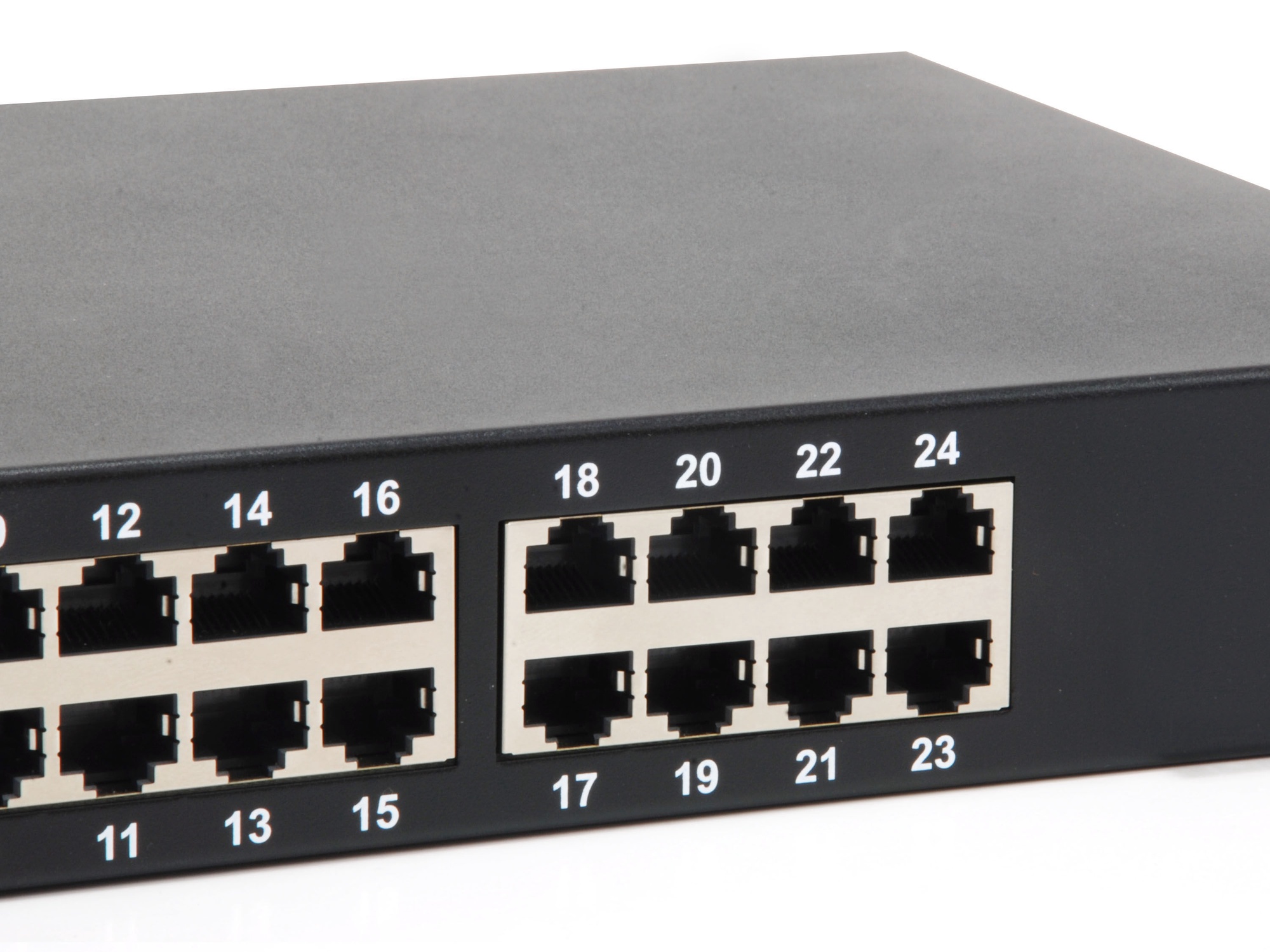

Port: 24 x 10/100/1000Mbps RJ45
Button/Knob: POWER Button

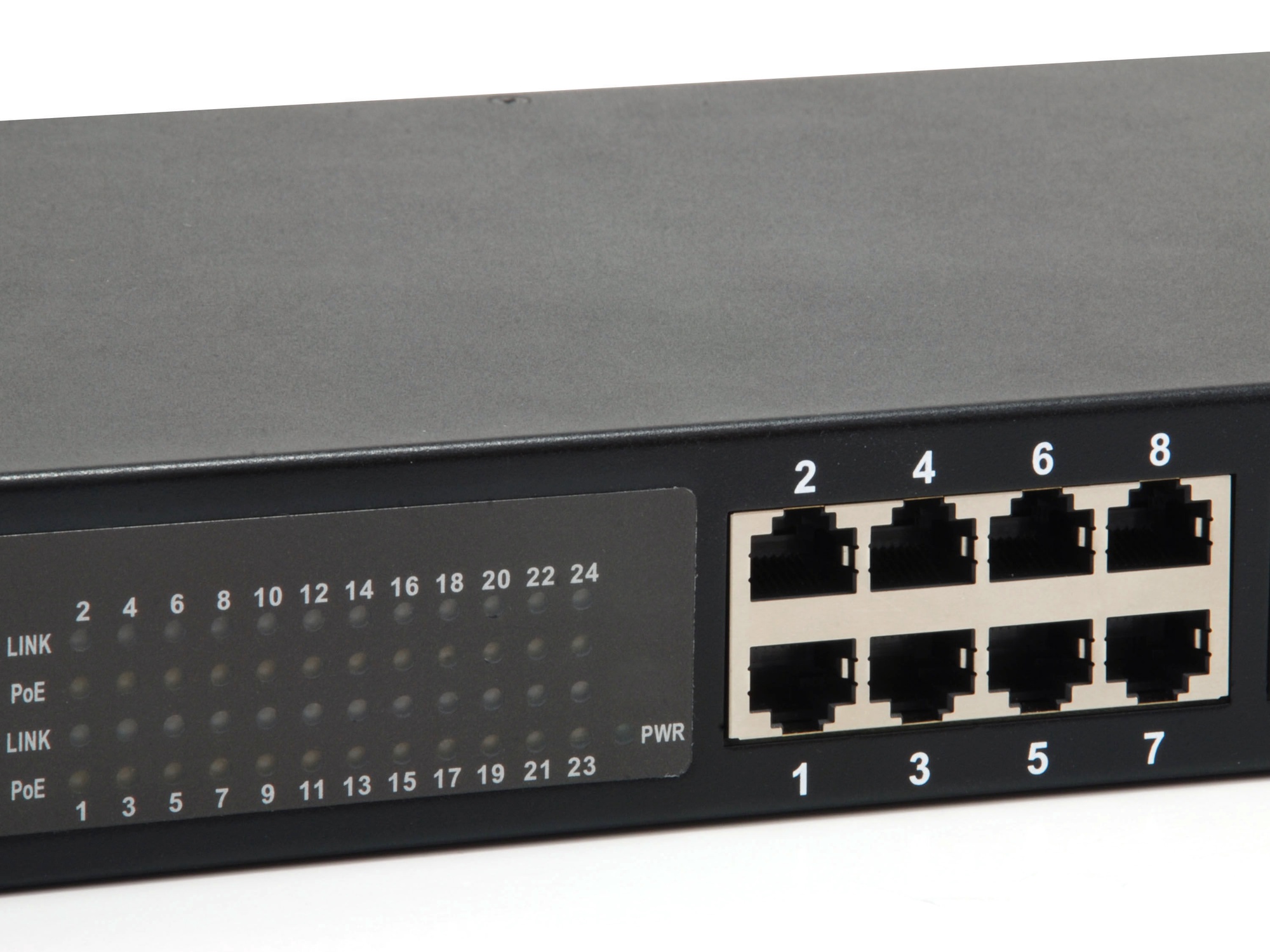

Indicator: Power,LAN 1~24 port, PoE 1~24 port

Transmission Method: Store-and-Forward

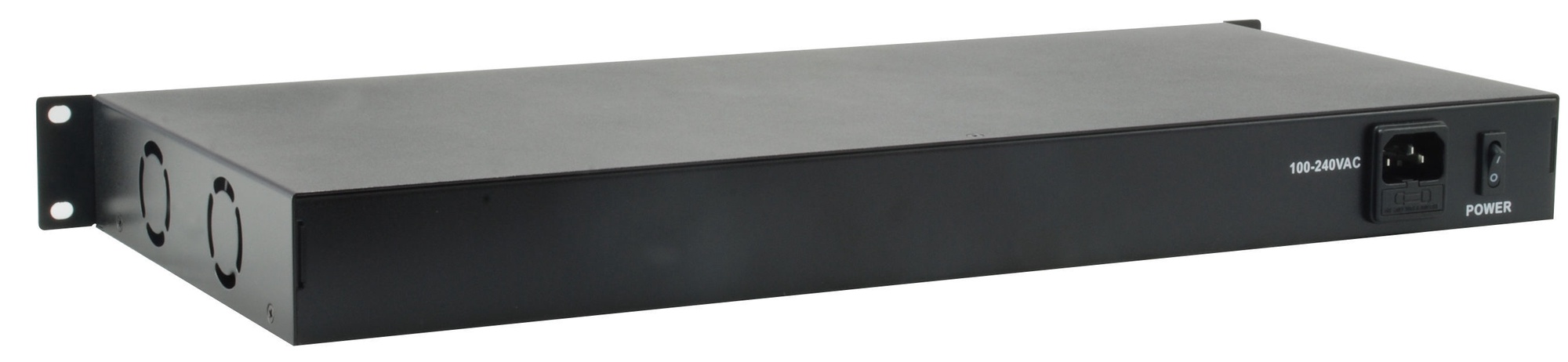

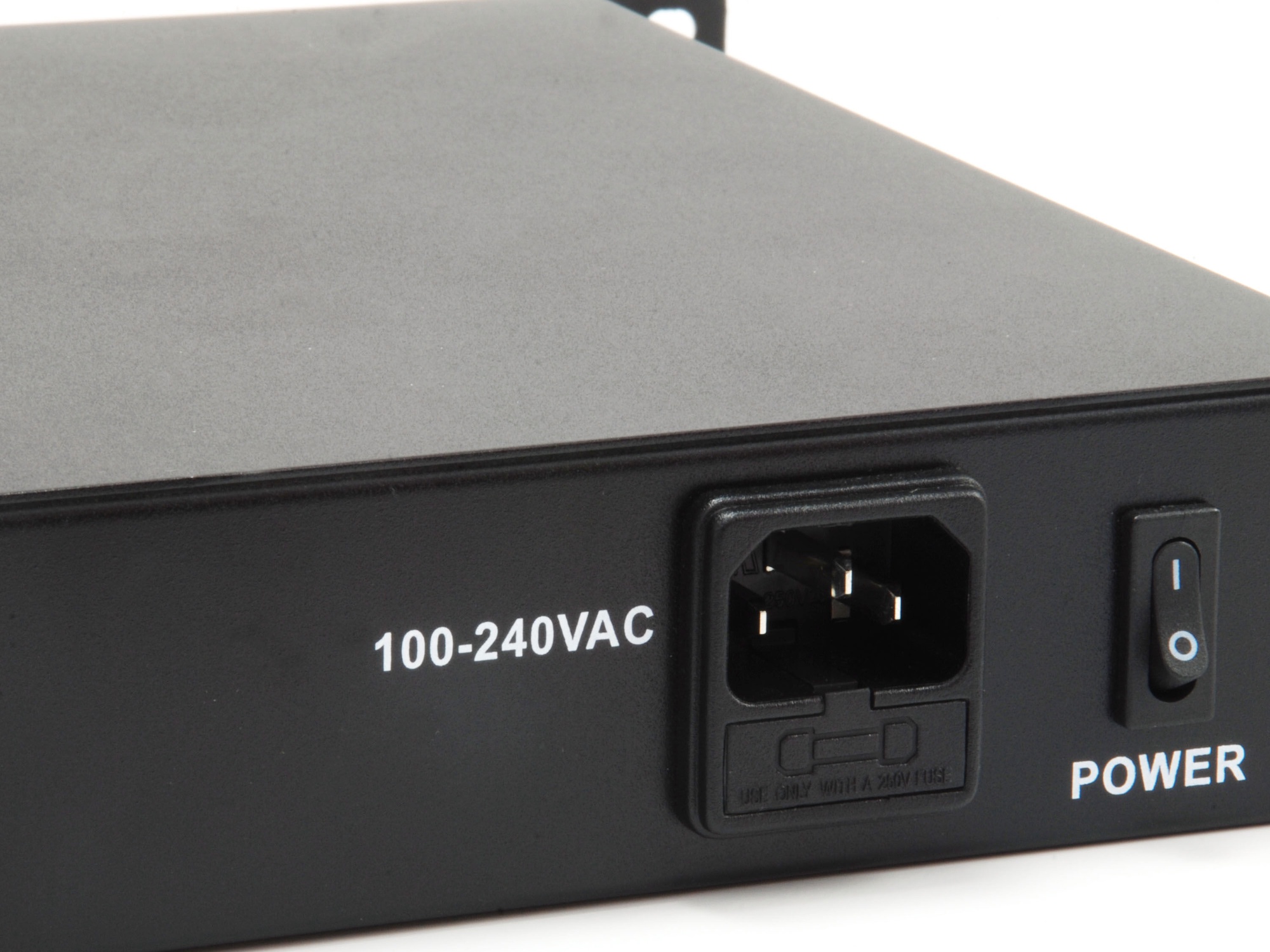

Power Input: AC Power input(100V~240V), 50-60 Hz
Power Output: Per Port 56VDC, Max. 30 watts (802.3at)

Power Consumption:
GEP-2421W150: 150W
GEP-2421W250: 250W
GEP-2421W380: 380W
GEP-2421W500: 500W
GEP-2421W630: 630W

Backplane (Gbps): 48Gbps
MAC Address Table: 8K
Data Rate: 10/100/1000Mbps
Power Saving: IEEE 802.3az (Energy Efficient Ethernet)
Operating Temperature (°C): Operating: 0° ~ 50°C
Operating Humidity (Non-condensing): Operating: 10 ~ 90%
Mount: Rackmount
PoE: IEEE 802.3at/af Power over Ethernet/PSE Mode A

Packet Forwarding Rate:
10Mbps 14880pps,
100Mbps 148800pps,
1000Mbps 1488000pps

Jumbo Frame (K): 10K
Switching Capacity: 48Gbps
