Пульт Lamptron

Описание товара на английском языке:


Lamptron fan controller for a 5.25-inch slot, with four channels (up to 20 watts per channel), multicolored LCD touch screen with remote control, 3x 3-pin PWM & 4x 3-pin addressable RGB LED & 4x4 Pin RGB-LED, 4x temperature sensors
The most important features of the CM420 fan controller at a glance:

• High-quality housing made of aluminum
• LCD touch screen with multicolor illumination
• Four channels for PWM fans with a maximum of 20 watts per channel
• Connections for 3-pin & 4-pin RGB LEDs

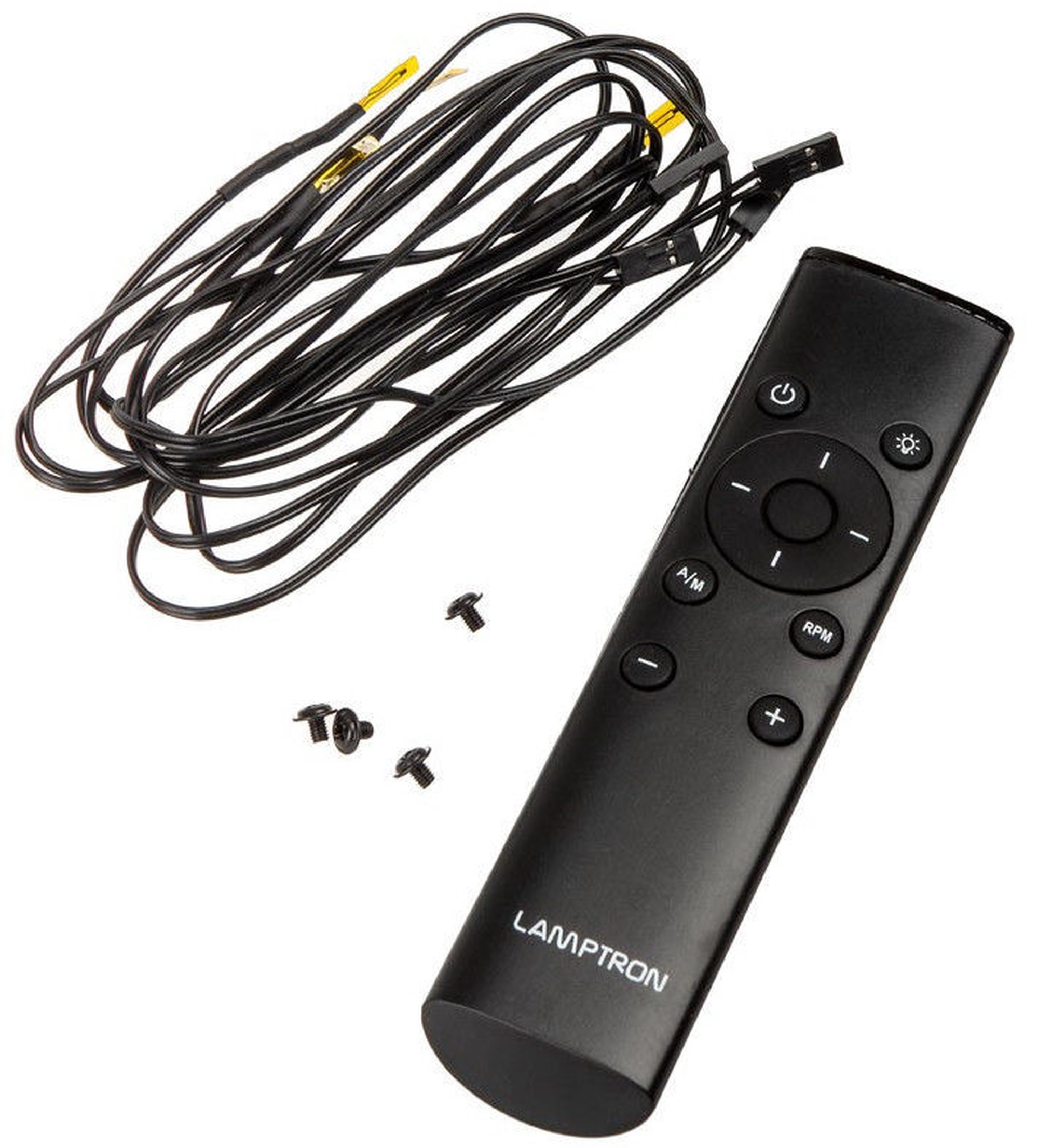

• Four temperature sensors already included
• Automatic or manual control, including remote control

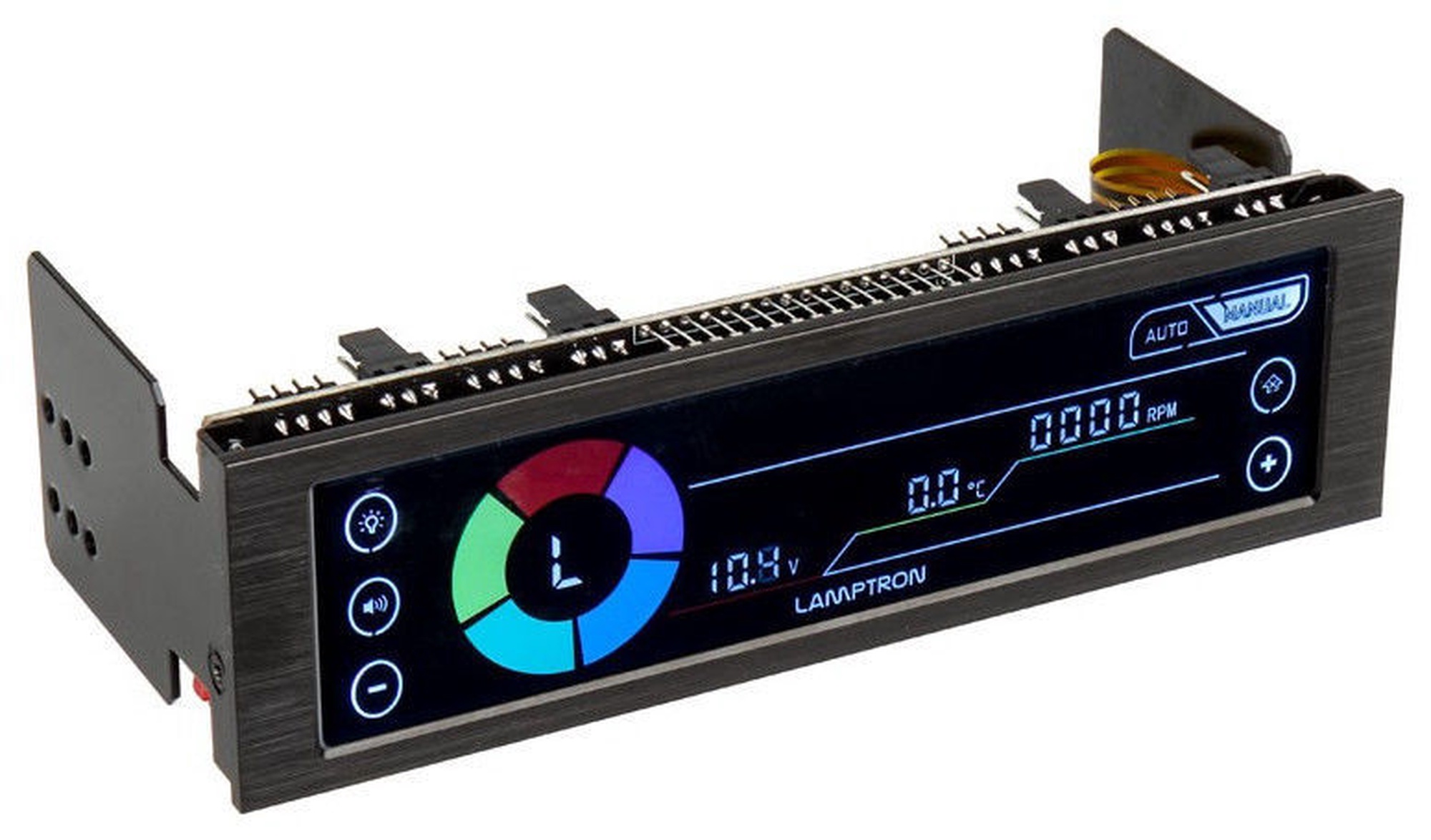

Design & installation of the CE420 fan controller The CM420 fan control of Lamptron can quickly and easily into a 5.25-inch slot are screwed. The four included screws provide a secure hold and complement the computer with a practical solution for regulating built-in fans. The black frame captivates with its brushed aluminum look and perfectly surrounds the luminous LCD touch display. A total of four PWM fans (3-pin) can be connected. The scope of delivery also includes four temperature sensors . Power is supplied to the fan control via a 4-pin Molex connector , which in turn is not included.

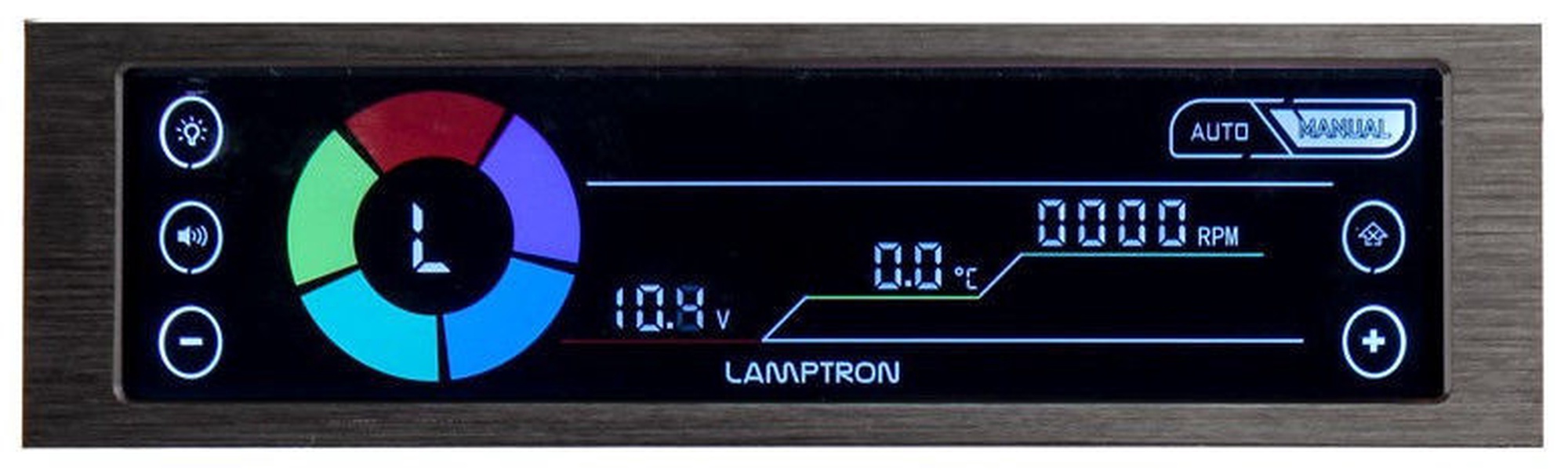

The display of the fan control offers a variety of information and configuration options. In addition to a power-on / off switch, there is the possibility to switch between the four available channels on the right side. The selected channel will also be displayed large again. The center of the display shows the current speed of the fan in the form of a tachometer. To the left are the temperature and a changeable speed, volt or percent display.

The CM420 fan controlleralso offers the possibility to make all settings manually or to select automatic operation. In addition, the brightness of the lighting can be adjusted in three stages (100%, 50% or 0%). After switching on the fan control, the lighting is set to 100% by default. In automatic mode, it turns off after three minutes. The CM420 is also equipped with an alarm function that can warn the user if the temperature is too low or too high. This feature is quick and easy to configure and also easy to disable or enable. Likewise, you can switch between "Quiet" and "Fullpower" modes, depending on the cooling requirements.

Note:You can connect to the 3-pin connectors. However, these can only be regulated by the voltage.
