Раздатчик видеосигнала Manhattan, 1080p

Easily distribute a single VGA signal to multiple displays
The Manhattan Professional Video Splitter with built-in booster streams a single VGA signal from a personal computer or other VGA-equipped source to one or two displays. Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the Manhattan Professional Video Splitter is a good choice for splitting and distributing a signal when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output VGA signals to additional displays in widely distributed applications. The gold-plated contacts and fully shielded metal case ensure reliable signal transmission with less degradation.

General

• LED indicator: Power (green)
• Cable length, maximum: 65 m (210 ft.)
• MTBF: 40.000 hours
• Connector input: HD15 male; output: HD15 female (2)
• Power adapter: 9 VAC, 300 mA

Signal

• Signal bandwidth: 350 MHz
• Signal type: VGA, SVGA, multi-sync
• Input voltage, minimum: 0.5 V p-p
• Input voltage, maximum: 1.0 V p-p
• I/O impedance: 75 Ω

Resolution

• Resolution: 1920 x 1080
• Horizontal frequency: 30 – 120 KHz
• Vertical frequency: 40 – 120 Hz

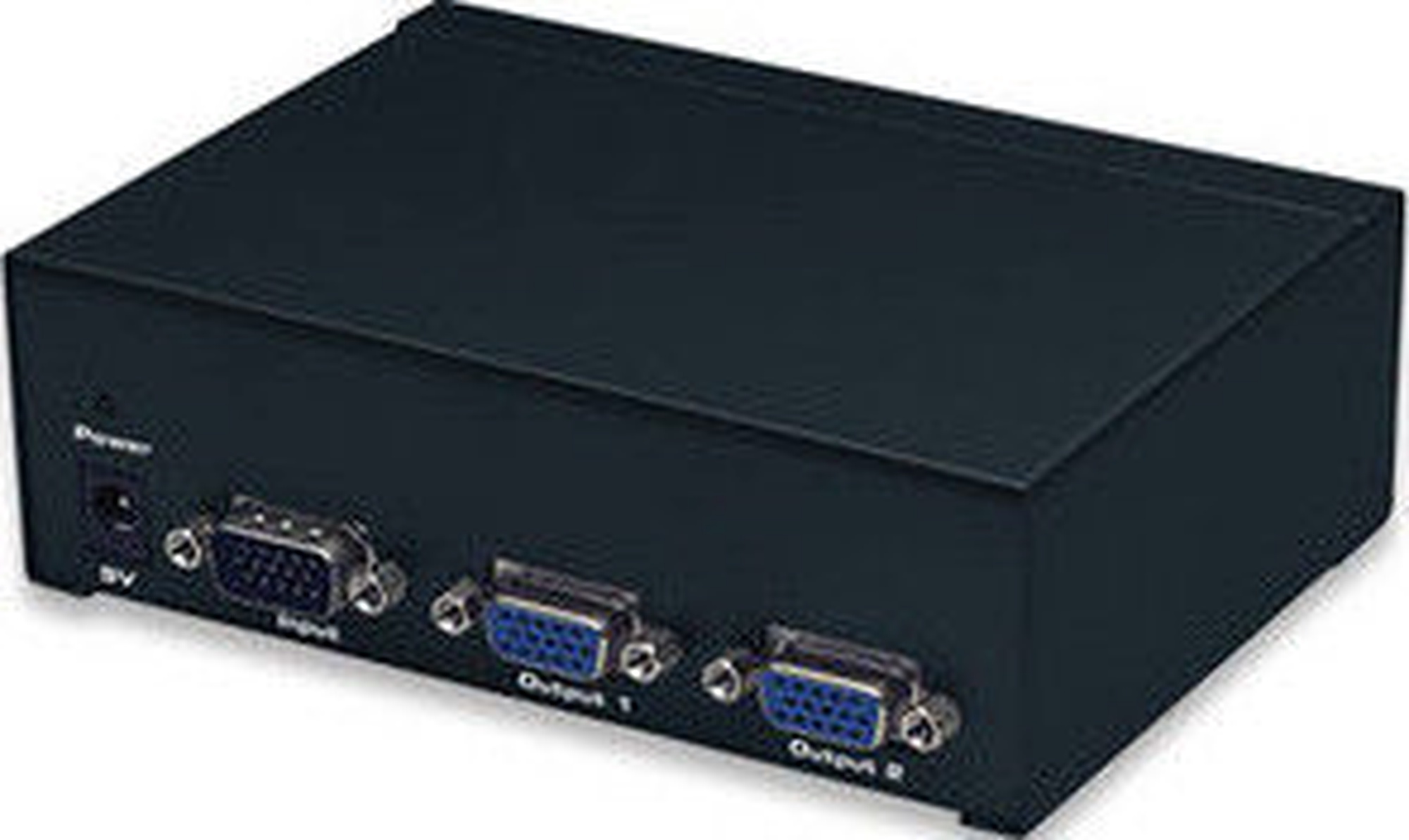

Ports

• HD15 male
• 2 HD15 female
• Power: 9 V, 1000 mA

Physical

• Enclosure: metal
• Dimensions: 133 x 42 x 94 mm
• Weight: 396 g
