Сигнализация Satel INT-PP1, зеленый цв.

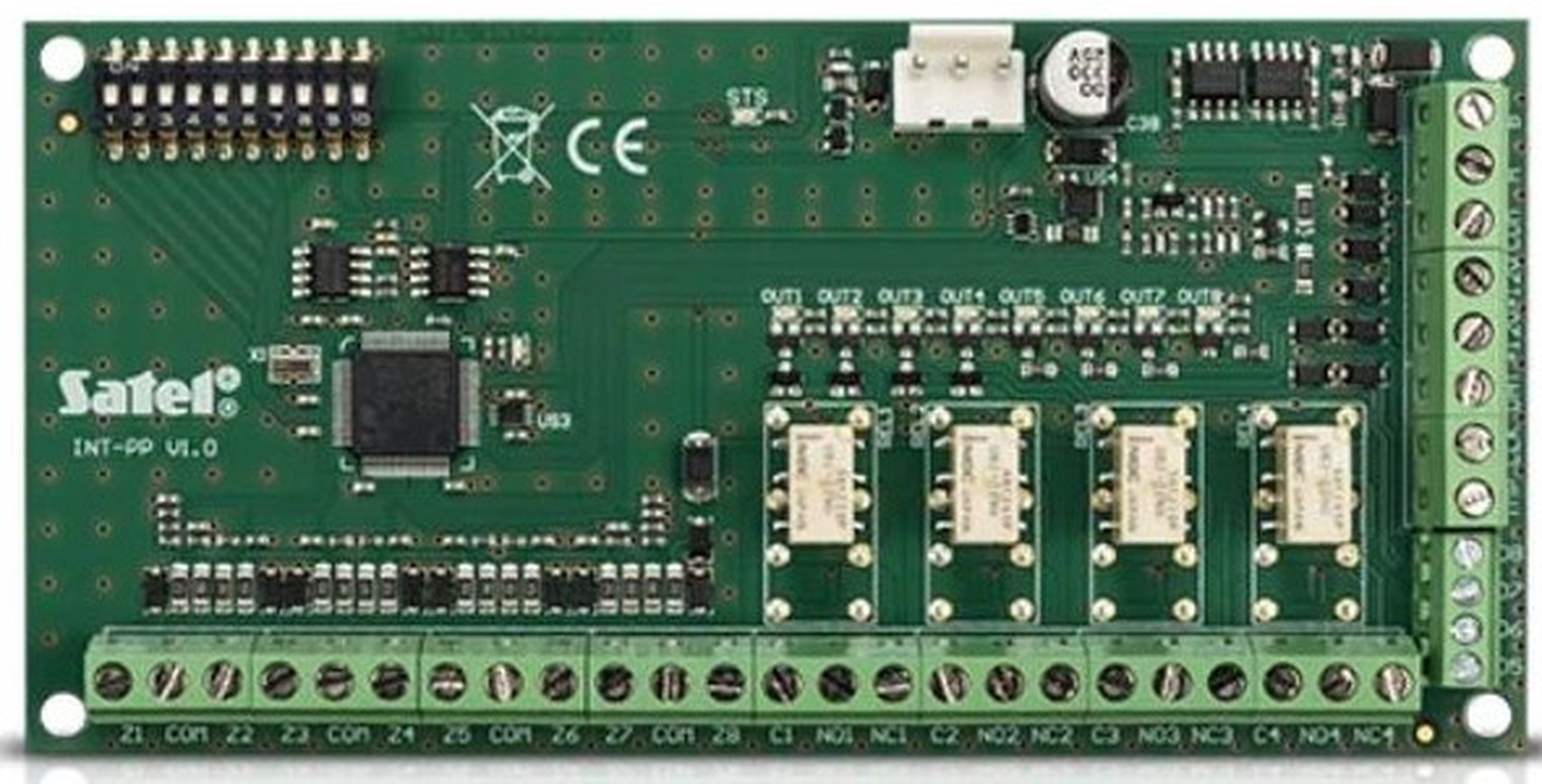

INT-PP1 Expander

Zone and output expansion module
The module is designed for use with the control panels of INTEGRA and INTEGRA Plus families, as well as with ACCO-NT access control panel. This device replaces the CA-64 PP module. The INT-PP allows for expansion of the control panel by additional 8 wired zones and 8 programmable relay and OC outputs. The additional tamper input facilitates detection of unauthorized opening of the enclosure in which the module is installed.

support for:
NO, NC
EOL, 2EOL/NO, 2EOL/NC (alarm control panels only)
3EOL (INTEGRA Plus only)
support for roller shutter and vibration detectors (alarm control panels only)
system expansion with 8 zones
system expansion with 8 outputs:
4 OC type outputs
4 relay outputs
ability to connect to RS-485 bus (firmware update via the bus)
