Barošanas bloks Streacom 160 W

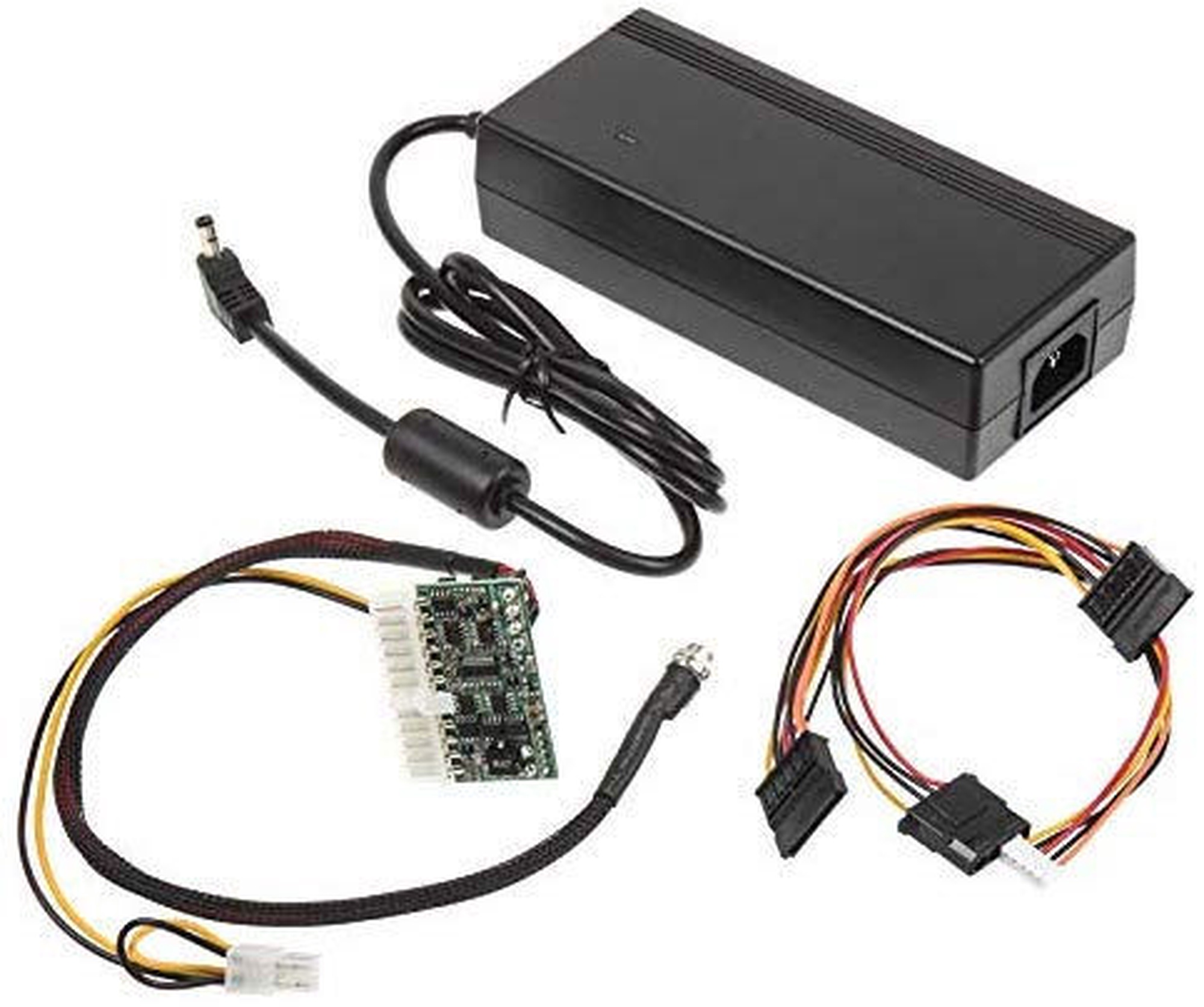

Preces apraksts angļu valodā: The Nano160 is our 2nd generation ultra compact fanless PSU designed to provide silent ATX power for compact form factor computing. The PSU fits perfectly into all Streacom cases but can also be used as a silent PSU solution for any PC case.
Featuring 160W* of combined total power output, under & over output power protection, short safety protection, and connections for ATX24, SATA, IDE and 4PIN CPU power, the Nano160 is the natural choice for any SFF or quiet system that requires more power than our Nano120. It has also been designed with stability and compatibility at its core, and fully complies with low power (LVDS, ERP/EUP) requirements, having better than 87% efficiency. This makes the Nano160 the defacto performance compact power solution with the perfect balance of size, power output, and stability.

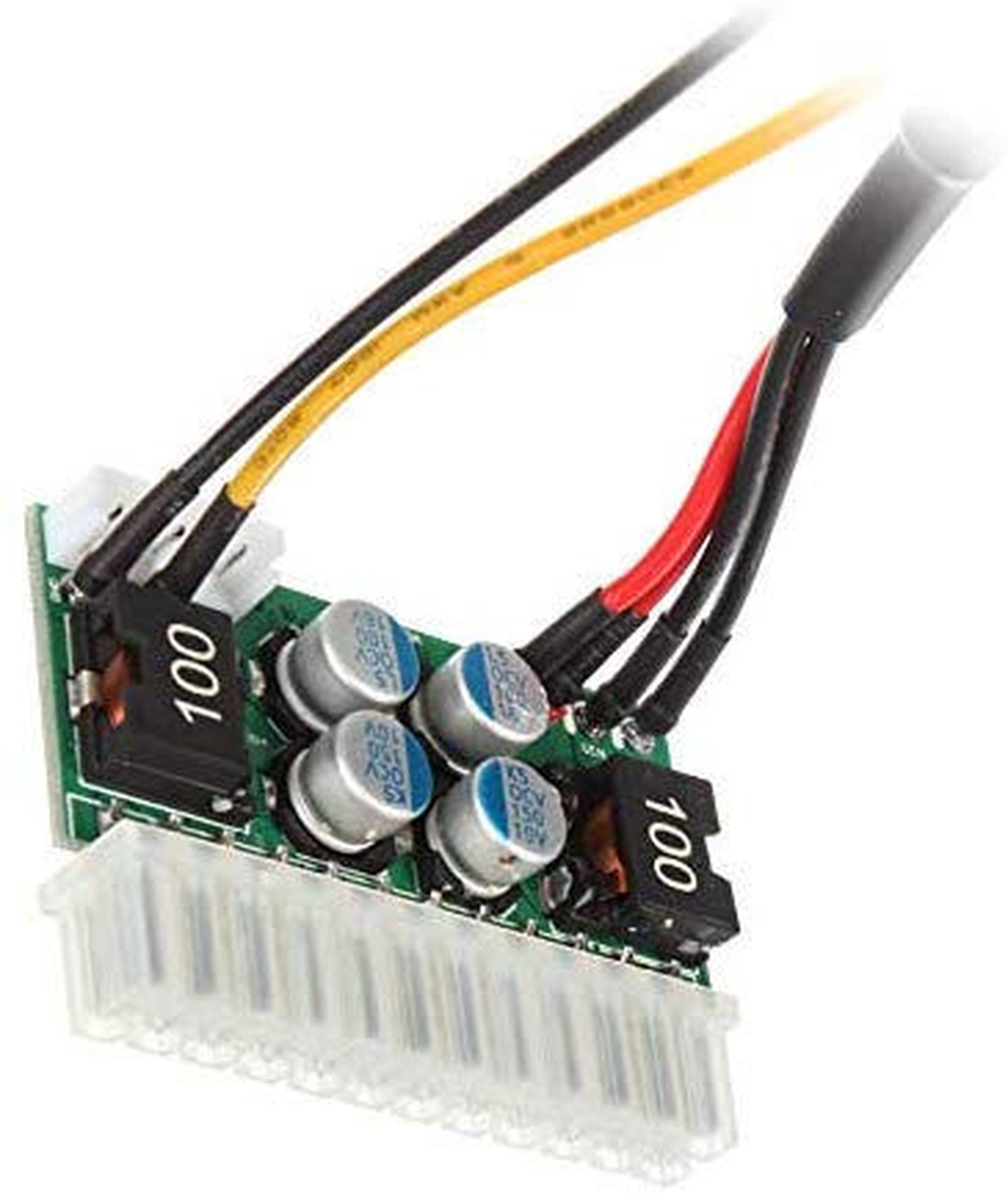

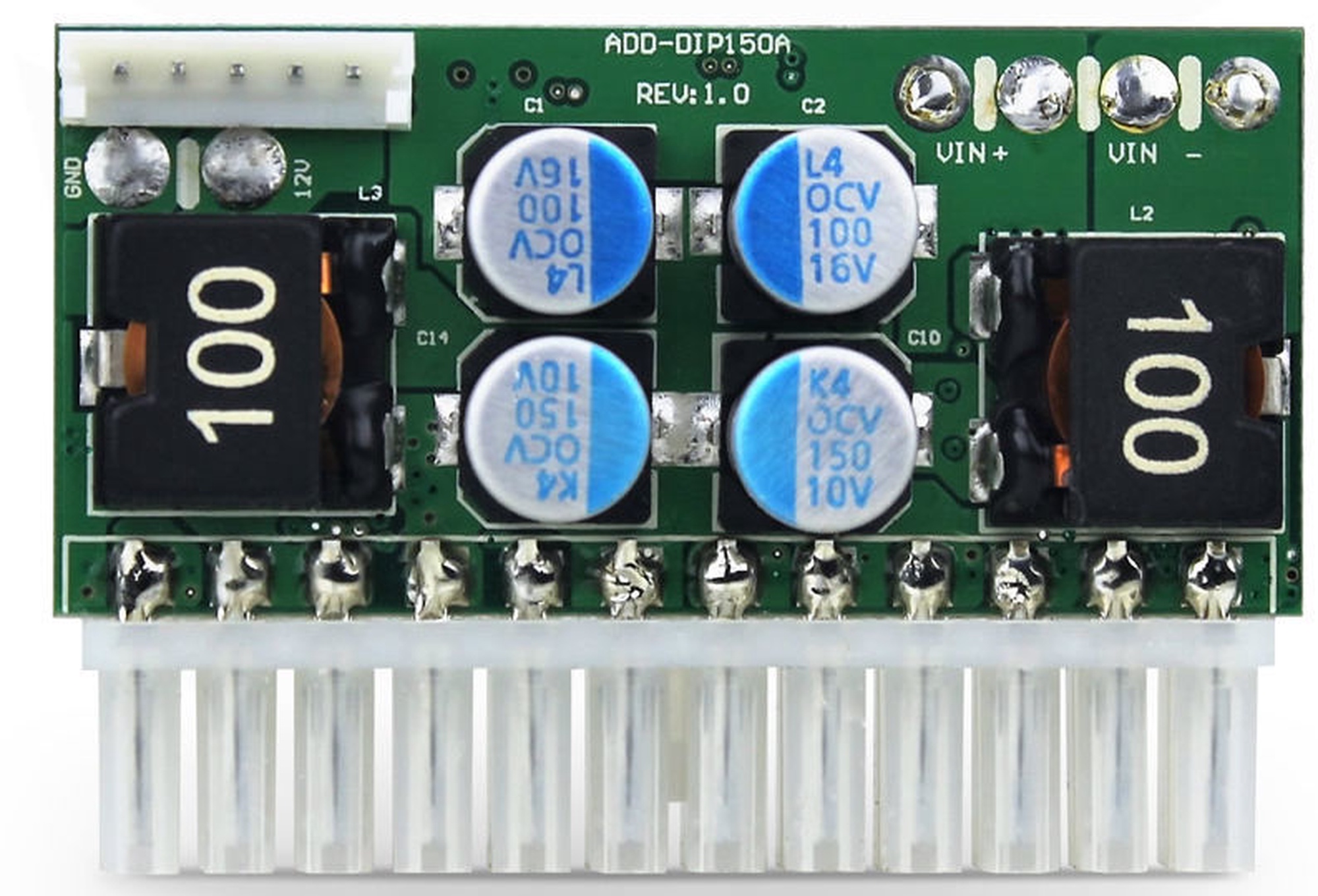

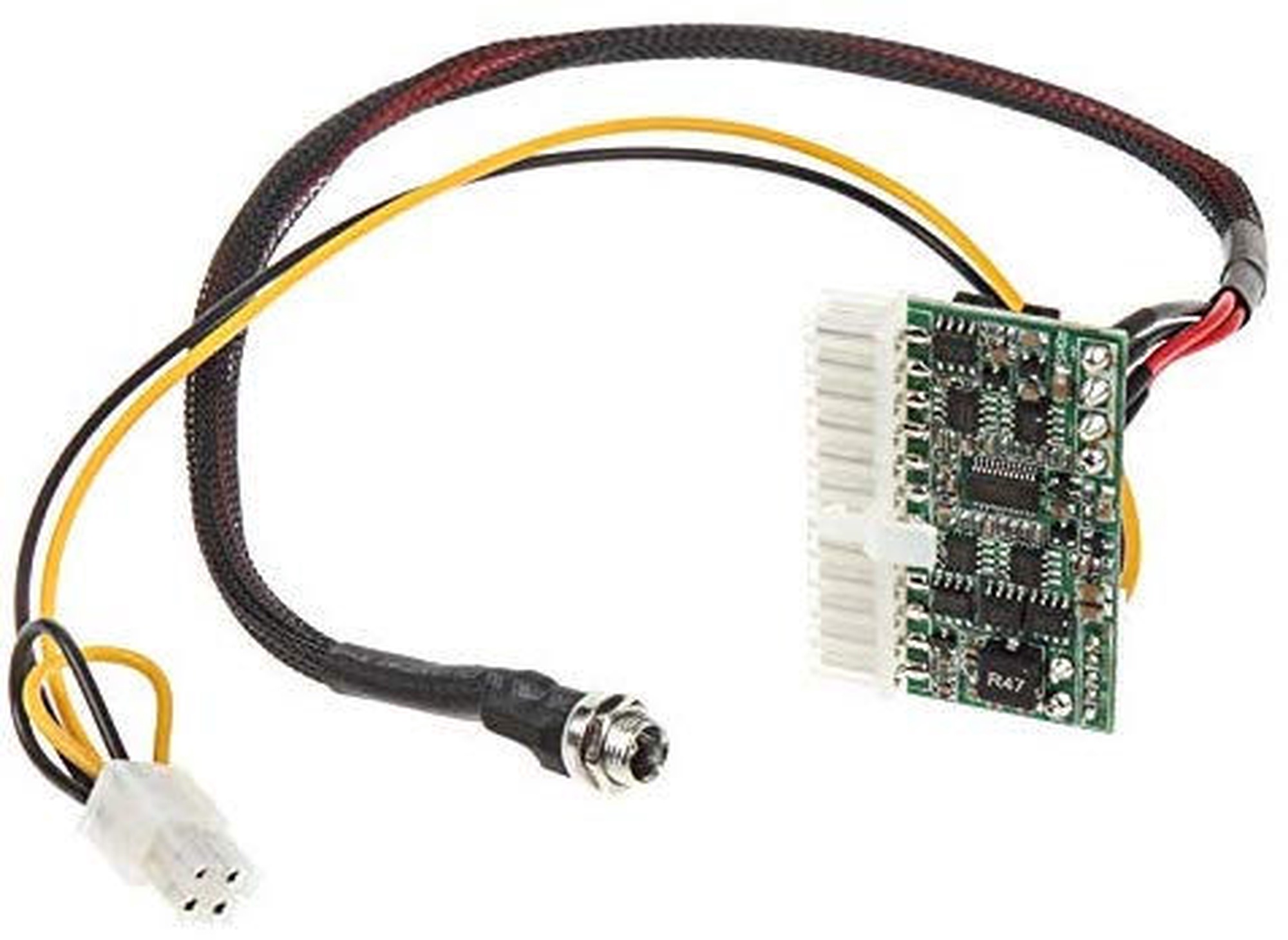

DC to DC PCB

• Max Power Output: 160W* Peak
• Input Power: 12V DC, 13A
• Output Connectors: 1 x 24PIN ATX, 2 x SATA, 1 x IDE, 1 x 4PIN CPU
• Power Characteristics: 12V @ 8A, 5V @ 6A, 3.3V @ 2A, 5VSB @ 1A, -12V @ 0.02A

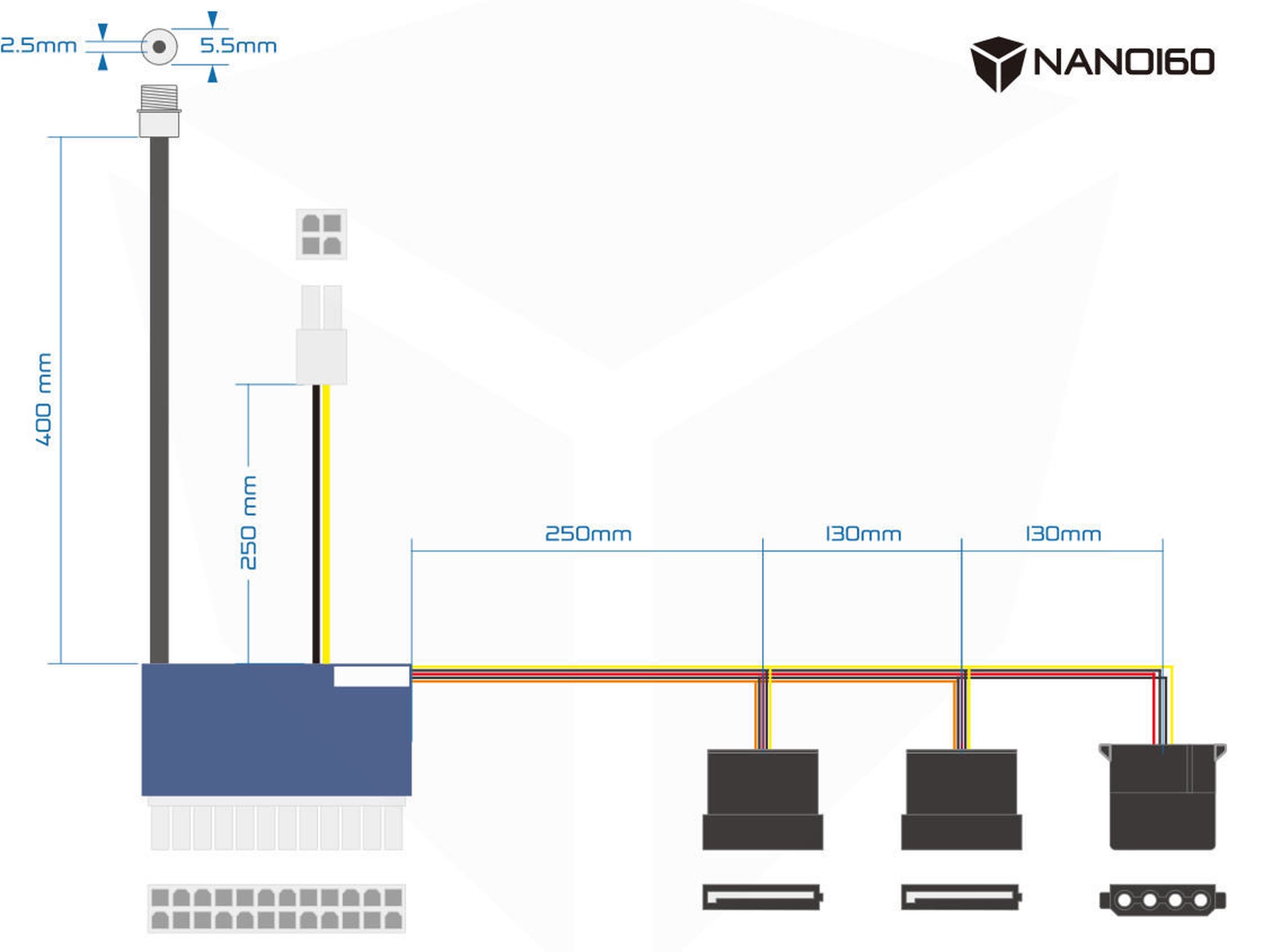

• Input Power Cable Length: 400mm
• PCB Dimensions: 54 x 26(37**) x 18mm (WxHxD) ** including ATX connector

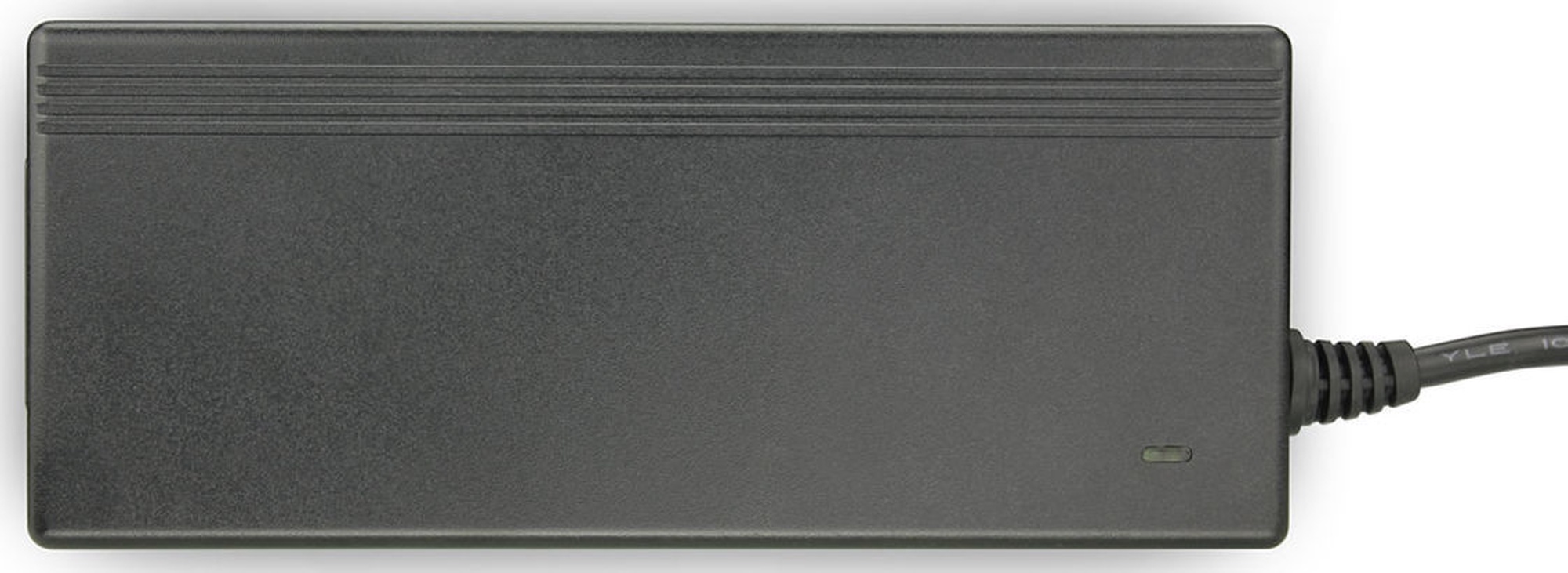

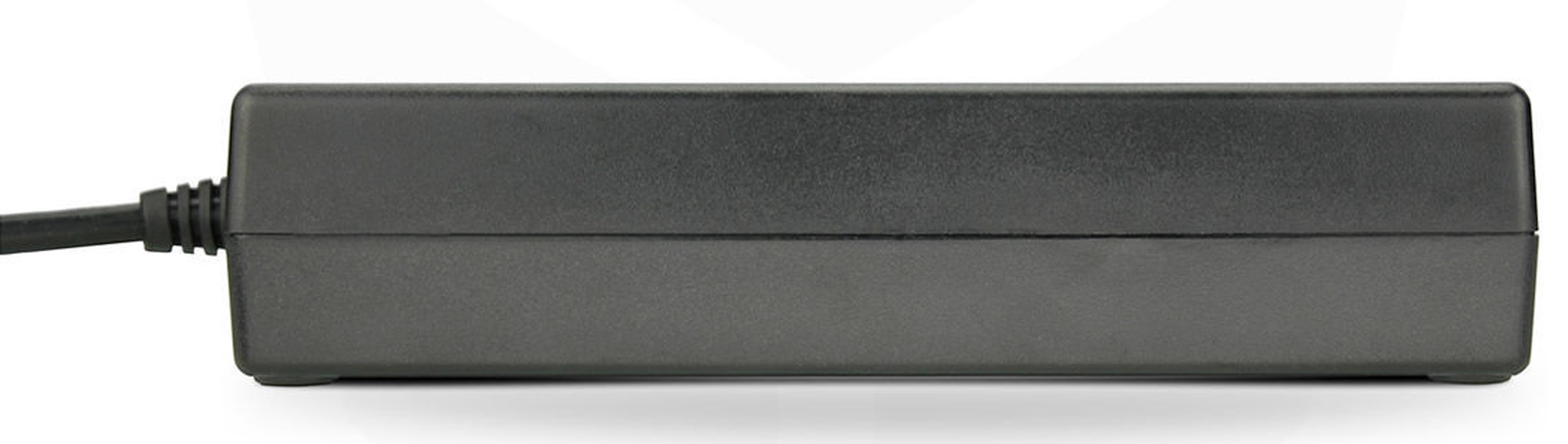

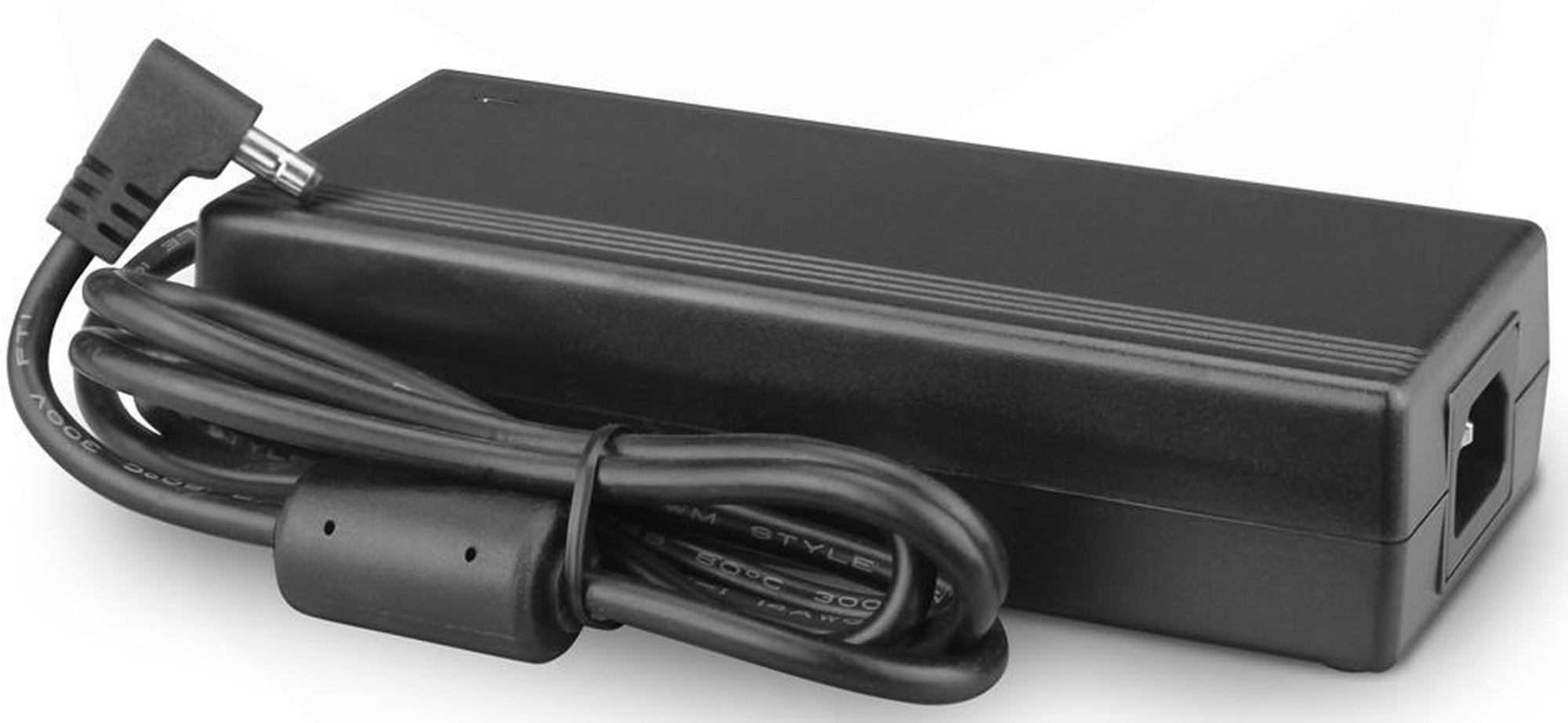

AC Adapter

• Input Power Range: 100-264V AC
• Max Power Output: 160W @ 12V Peak
• Power Characteristics: <0.35W No Load, <180mV Ripple, 87% + Efficiency, Active PFC >9
• Safety Certification: CE, FCC, UL, TUV, CCC
• Input Connector: IEC C14 (requires C13 cord)
• Output Connector: 5.5 x 2.5mm DC Jack DC Cable Length: 1.2M
• External Dimensions: 168 x 71 x 38mm (LxWxH)

Safety Features: OPP, UPP, Short Protection, Compatible with Haswell C6 & C7 Power States

* When choosing components ensure that the total power requirement is not greater than 160W. Please check individual component power requirements and total all components used in the system.
For example, CPU 83W, Motherboard 45W, SSD 5W, Total = 133W
