Datora korpuss Impactics, melna krās.

Preces apraksts angļu valodā:

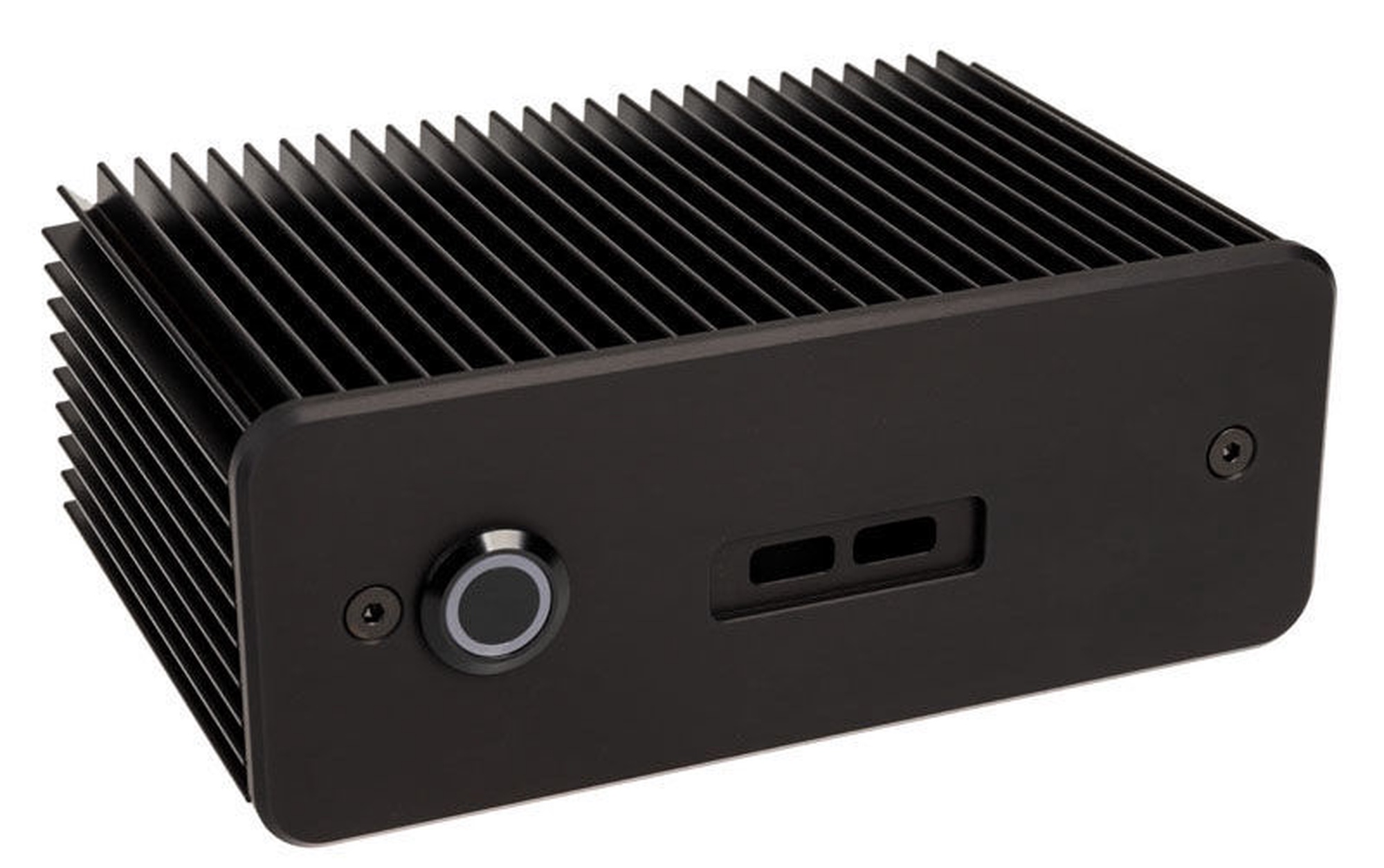

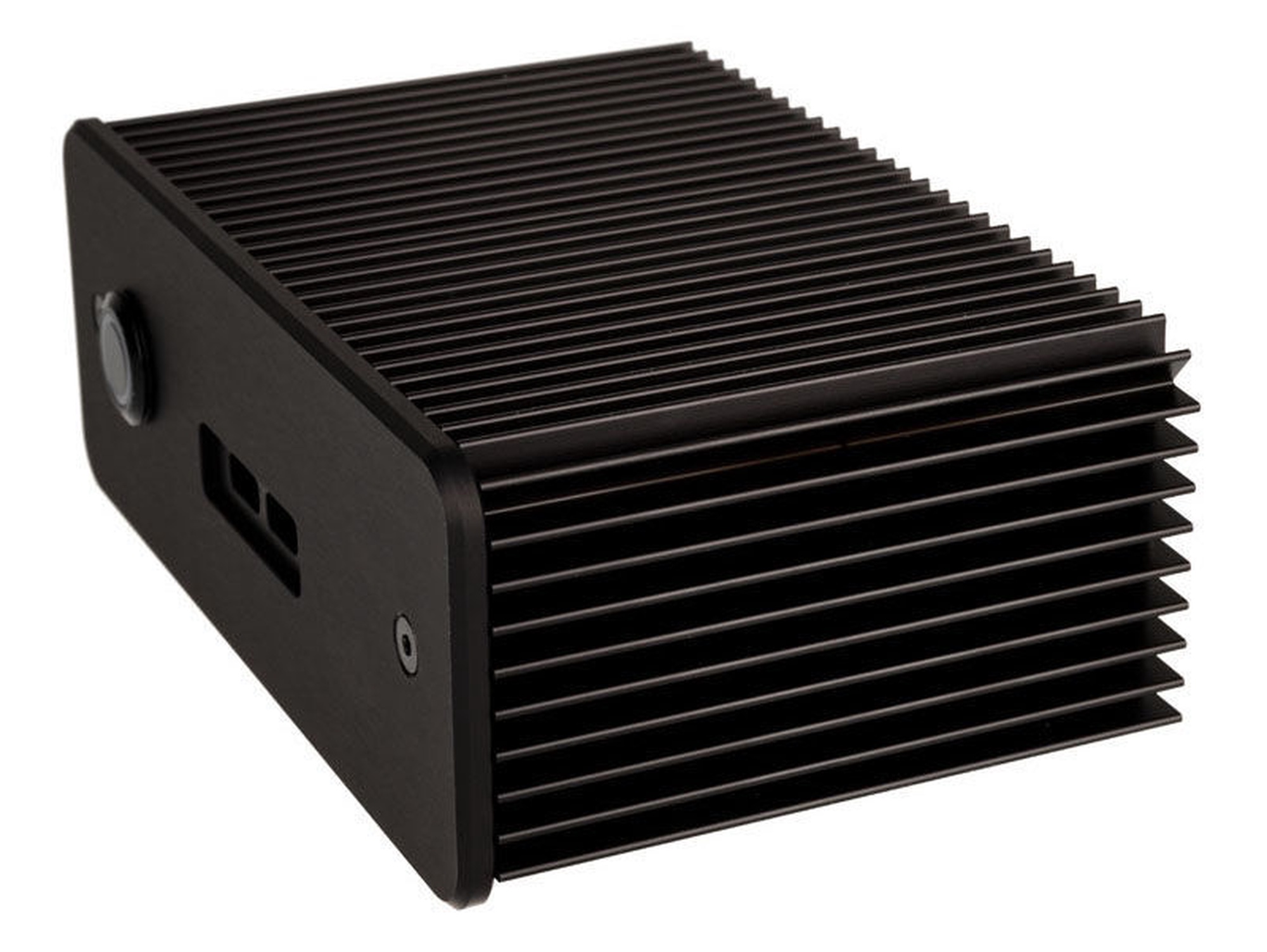

NUC housing with fanless operation, integrated heatsink, 2x HDMI, 4x USB, 1x LAN, 1x power supply
Essentially, the D7NU1 from Impactics is a miniature heatsink designed for passive cooling . Impactics consequently follows its KISSS principle: Keep it Simple, Silent, Smart. In order to accommodate the groundbreaking miniaturized complete systems NUC (Next Unit of Computing) from Intel in an optically adequate dwelling and also to go technically on the whole Impactics offers the mini cases in two colors.
The features of the D7NU1 at a glance

• Robust and compact case for Intel's NUC in black
• Passive cooling, quiet, fanless operation
• 2x HDMI, 1x RJ45, 4x USB, cut-outs for WLAN antenna and COM port

The KISSS Case D7NU1 from Impactics So small, can this really be a computer? That's probably the first question one faces with Intel's Next Unit of Computing (NUC). And the answer is: yes, even with already integrated, powerful CPU. After all, it's one thing to power your display with high-performance components. On the other hand, it is completely different to realize the whole in a tiny miniature system and yet not to sacrifice power. The form factor of the NUC standard of 10.16 x 10.16 x 5.08 cm can definitely be described as outstandingly small. Just 25 mm space between the mainboard and caseback.

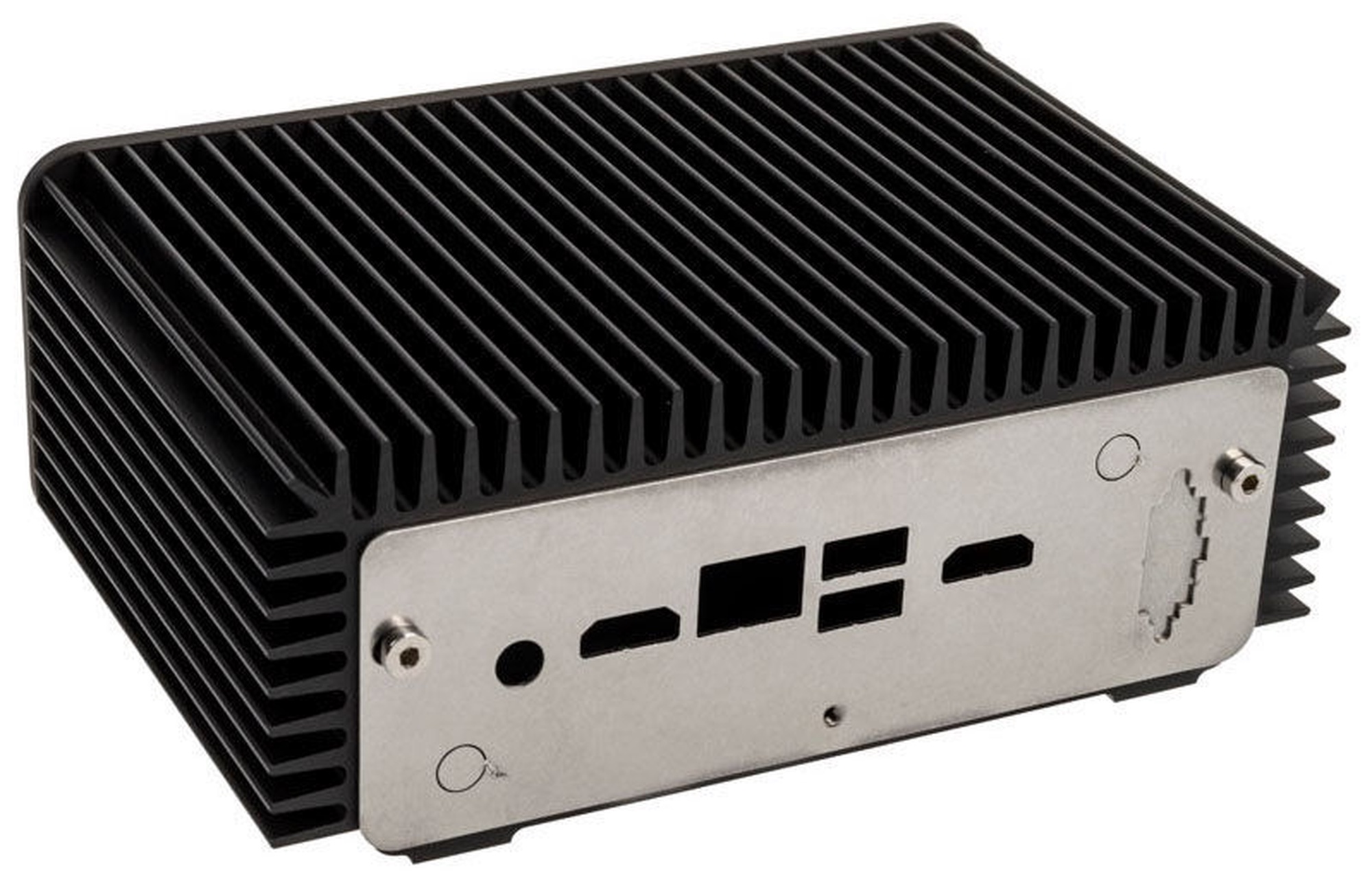

The D7NU1 is compatible with mainboards of the NUC series Dawson Canyon from Intel and brings appropriate cutouts for theUSB and HDMI ports as well as the LAN port on the back and two more for the USB ports on the front with. Optionally, in this version at the bottom of pre-punched panels can be removed to use two wireless antennas or a COM port connection can.

The principle of the Winzling provides to insert the mini-board and then to equip the two chips with the supplied copper heat sink. This is then connected to the exterior, removable cooling fins of the housing and in this way, the heat of the CPU will give over the housing itself. So the processor is operated efficiently and completely silently.

Technical details:

• Dimensions: 170 x 67 x 114 mm (W x H x D)
• Standard: Intel "Next Unit of Computing" (NUC)
• Recess for external connections:
  2x HDMI
  1x LAN
  4x USB
  1x power supply
  1x audio
  1x COM port
  2x WLAN antennas (pre-punched)
• Power supply: external power supply (optional)
• Compatibility:
  Intel NUC7i3DNBE
  Intel NUC7i5DNBE
  Intel NUC7i3DNKE
  Intel NUC7i5DNKE
  Intel NUC7i3DNHE
  Intel NUC7i5DNHE
• Features: Two recesses for extension cords from Impactics
