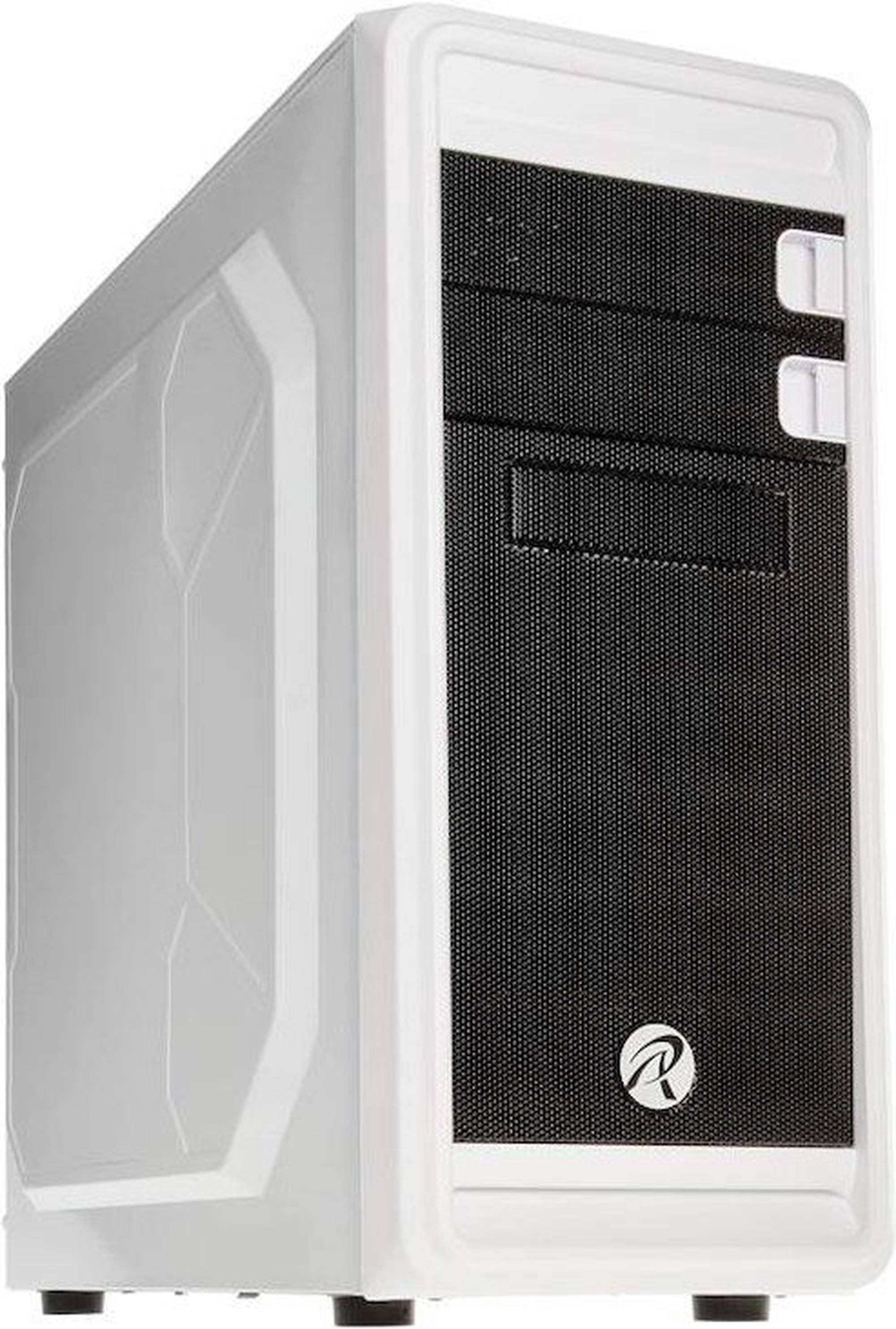

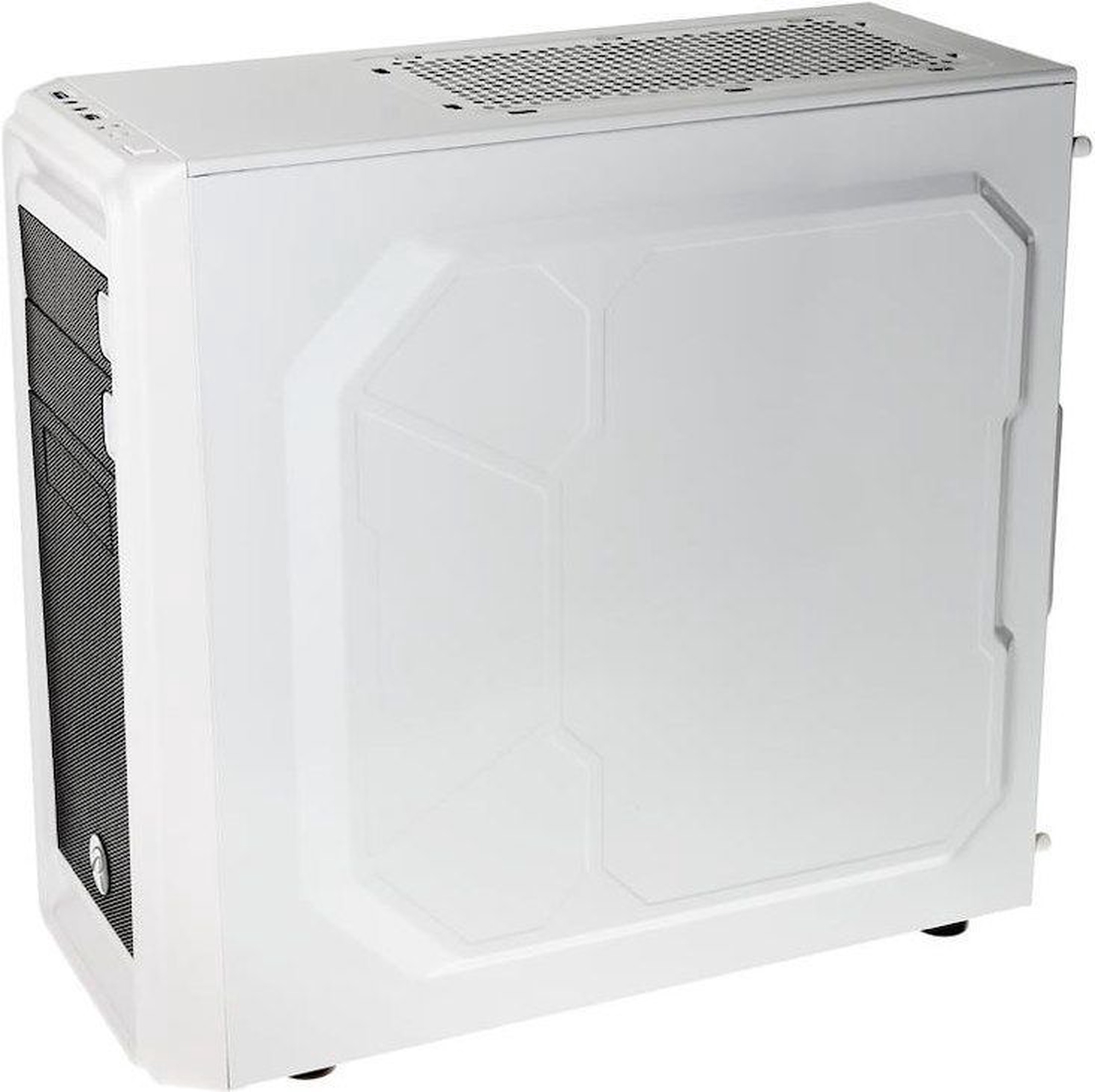

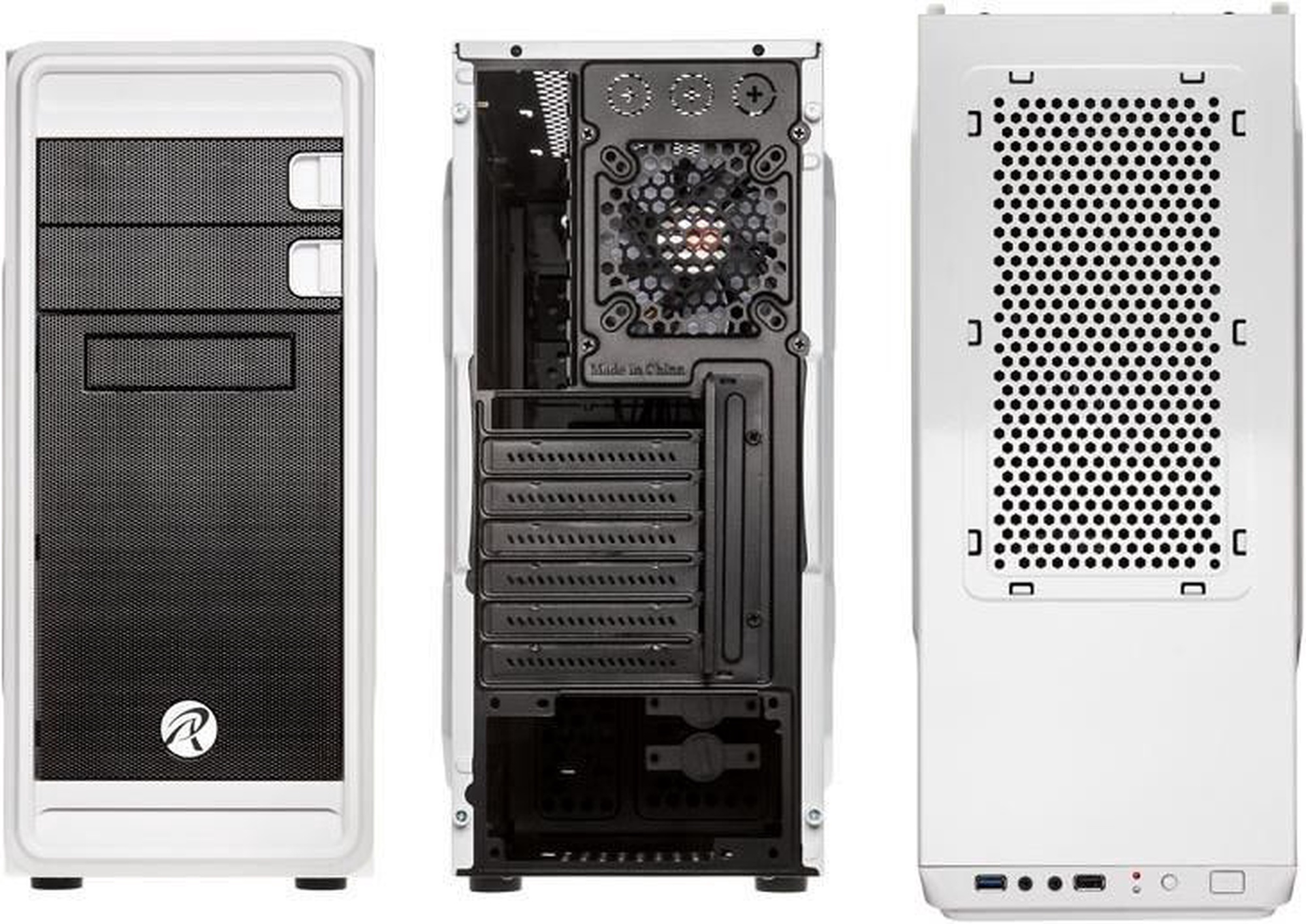

Datora korpuss Raijintek, balta krās./melna krās.

Preces apraksts angļu valodā:
Noise is an annoying side effect that is caused not only at the airport by aircraft taking off and in traffic by passing trucks. Especially in your own home, therefore, many people strive to provide peace, to find relaxation. Unfortunately, the PC is in many cases contrary to these efforts and annoying during operation with high noise.

The sources of noise are initially all rotating components, which mainly affects fans and hard drives. These should be decoupled and, if necessary, the speed reduced. Many housings support these measures and already offer ex works equipment.

In addition, an insulation can provide even lower external noise. With this modified version of the Raijintek Arcadia in white and black both approaches are connected and the housing is equipped with a pre-installed insulation.

The special feature of this compilation is that in addition to the pre-installed insulation mats additional insulation material included. This is also tailored to fit and allows additional sealing of other housing parts. As a result, you have the choice of how much insulation you use to achieve an individual optimum of cooling and volume reduction.

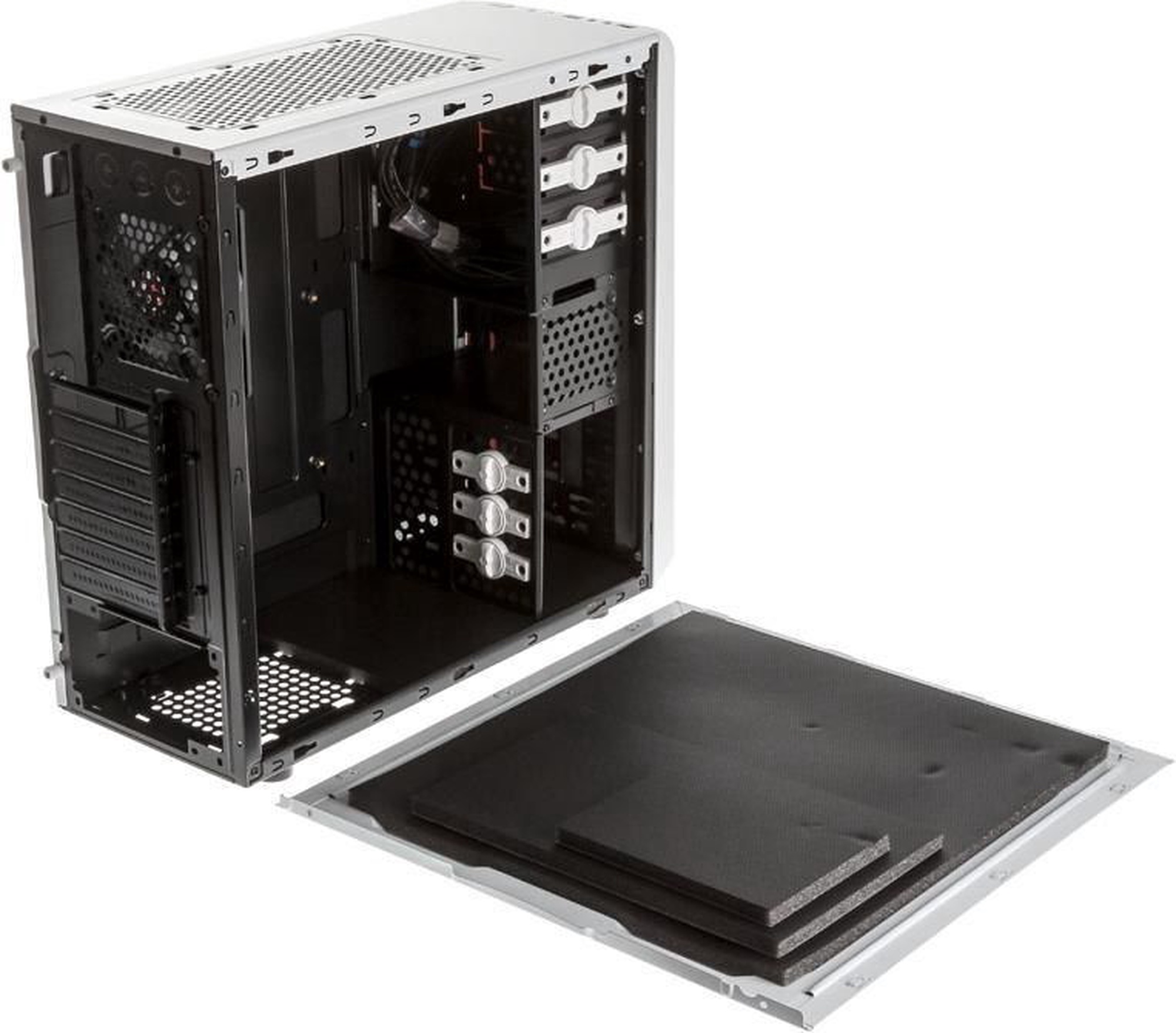

In the delivery condition of the Raijintek Arcadia 7 insulation mats are already glued or clamped. In addition, there are 2 mats loosely in the housing, which are self-assembled as needed.

These mats are not installed so as not to restrict the ventilation of the system. Thus, an individual optimum of insulation (volume reduction) and ventilation (cooling) can be achieved. About the exact positions of the pre-glued, clamped or just enclosed mats give the specifications below information.

All additional insulation mats are labeled, which together with an enclosed installation manual ensures trouble-free installation. The manual is specially tailored to the requirements of the Raijintek and explains in detail the installation, gives practical tips and explains the possibilities and insulation options.

Function: The insulating mats achieve a noise reduction via two effects. First, the soft material absorbs airborne vibrations. At the same time, the mats reduce self-propagating vibrations via the housing, above all by their own weight. Both together ensure that the outer sides of the case are hardly stimulated to vibrate.

Notes: Please note that due to the insulating mats, the space inside the housing may be smaller. Under certain circumstances, the laying of cables behind the mainboard tray in comparison to the uninsulated version can only be limited.

Technical details:

• Dimensions: 200 x 430 x 455 mm (W x H x D)
• Material: steel, plastic
• Weight: approx. 5.9 kg
• Color: white, black
• Form factor: ATX, Micro-ATX, Mini-ITX
• Total possible fan:
  1x 120 mm (front)
  2x 120 mm (cover)
  1x 120 mm (back)
• Pre-installed:

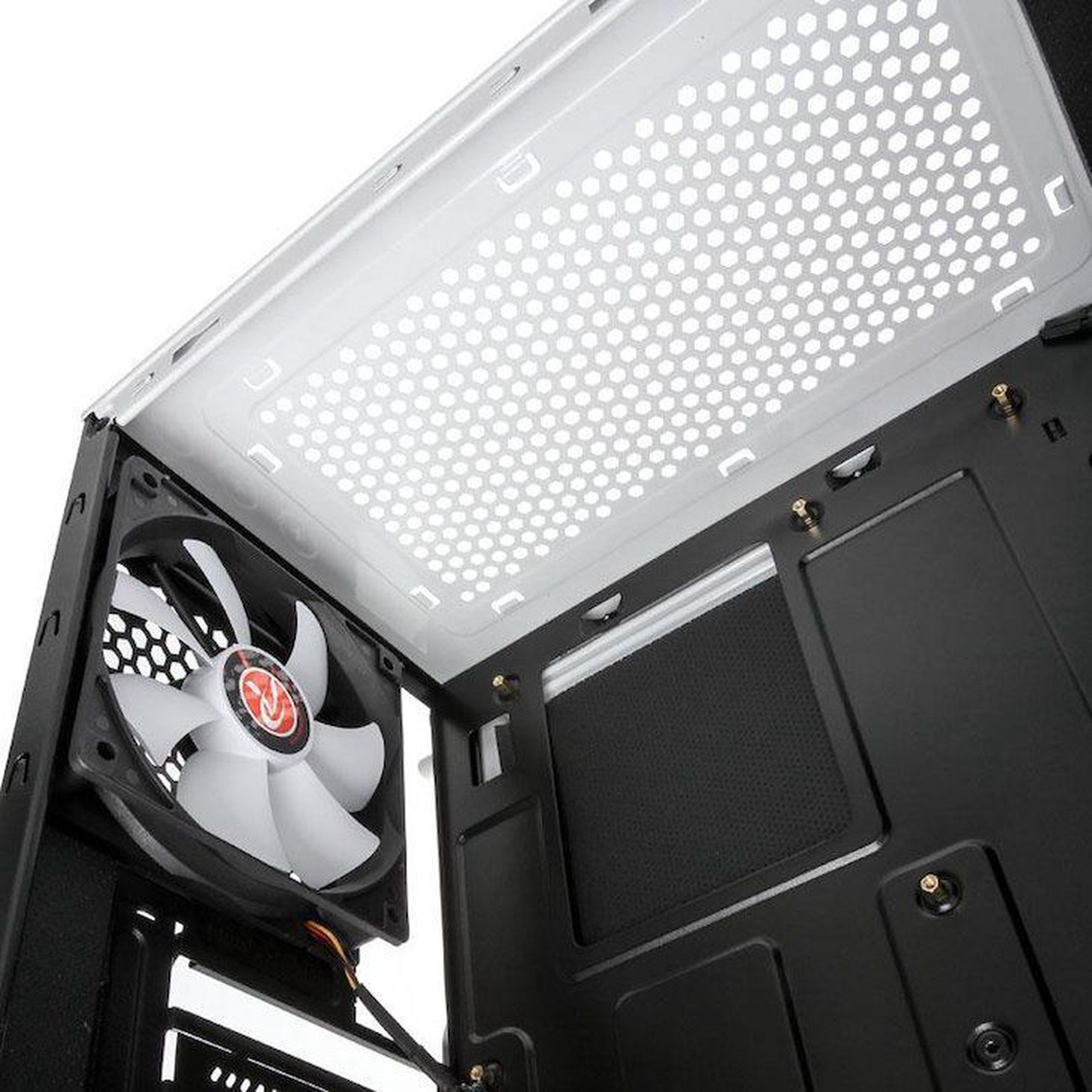

  1x 120 mm (back)
• Filter: lid, bottom (removable)
• Drive bays:
  2x 5.25 inches (external, tool-free)
  4x 3.5 inches (internal, tool-free)
  2x 2.5 inches (internal, tool-free)
• Power supply: 1x standard ATX (optional)
• Expansion Slots: 7

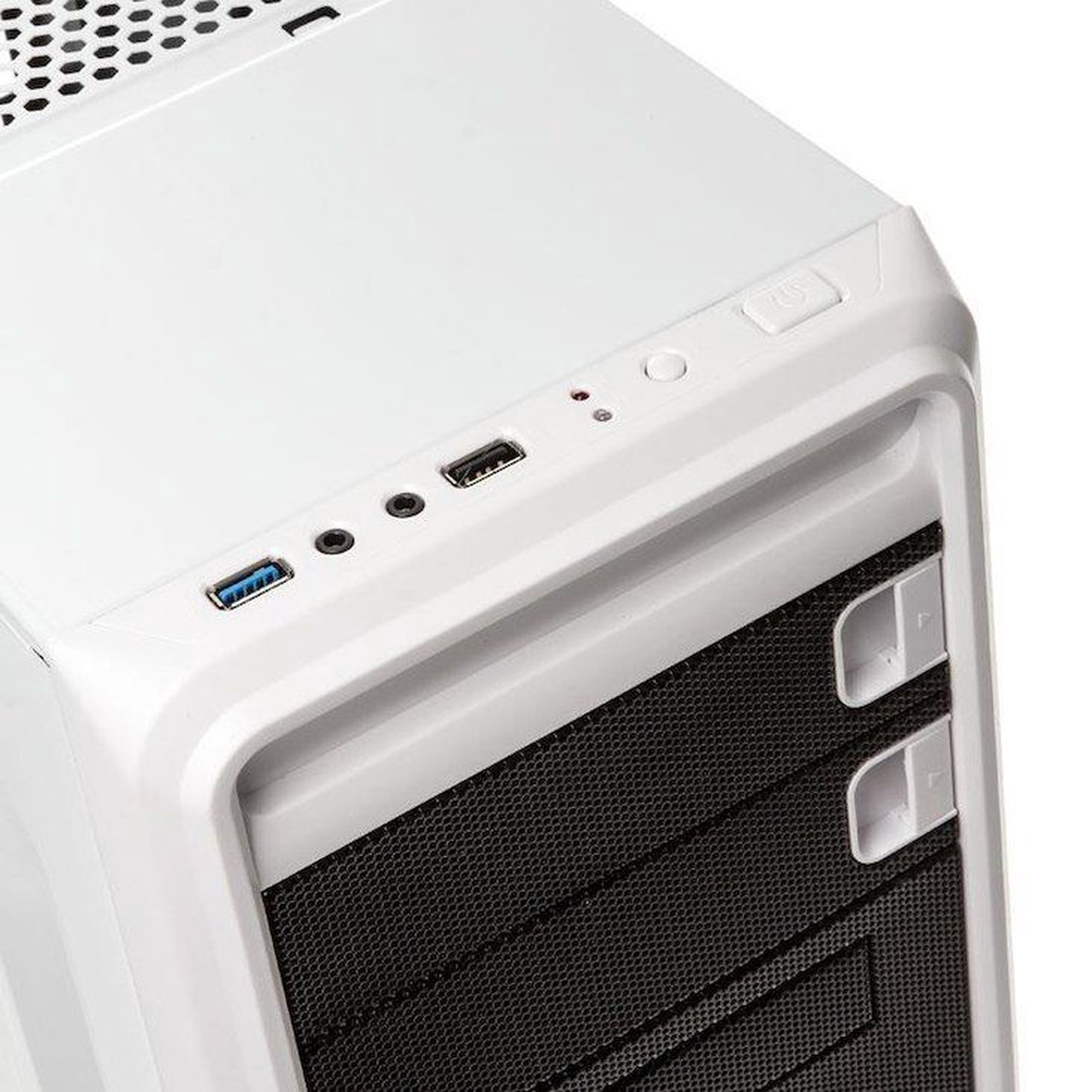

• I / O panel:
  1x USB 3.0 (internal connection)
  1x USB 2.0
  1x each audio in / out
• Maximum graphics card length: 400 mm (in the upper slots, otherwise approx. 310 mm)
• Maximum CPU cooler height: 160 mm
• Insulation (pre-installed):

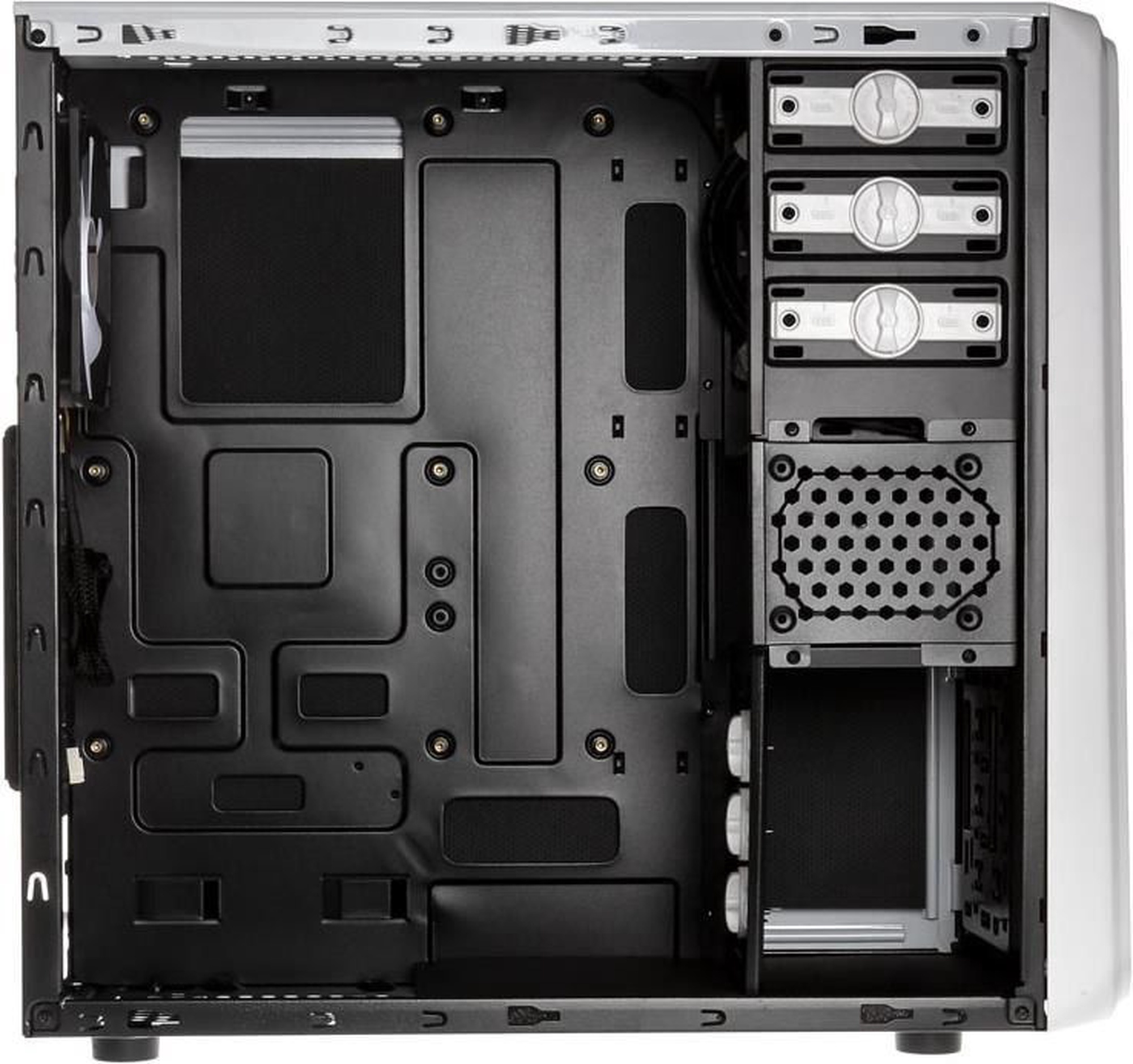

  Left side panel
  Right side panel
  Bottom center
  Front lid
  Rear center (next to PCI slots)
• Insulation (clamped):
  front

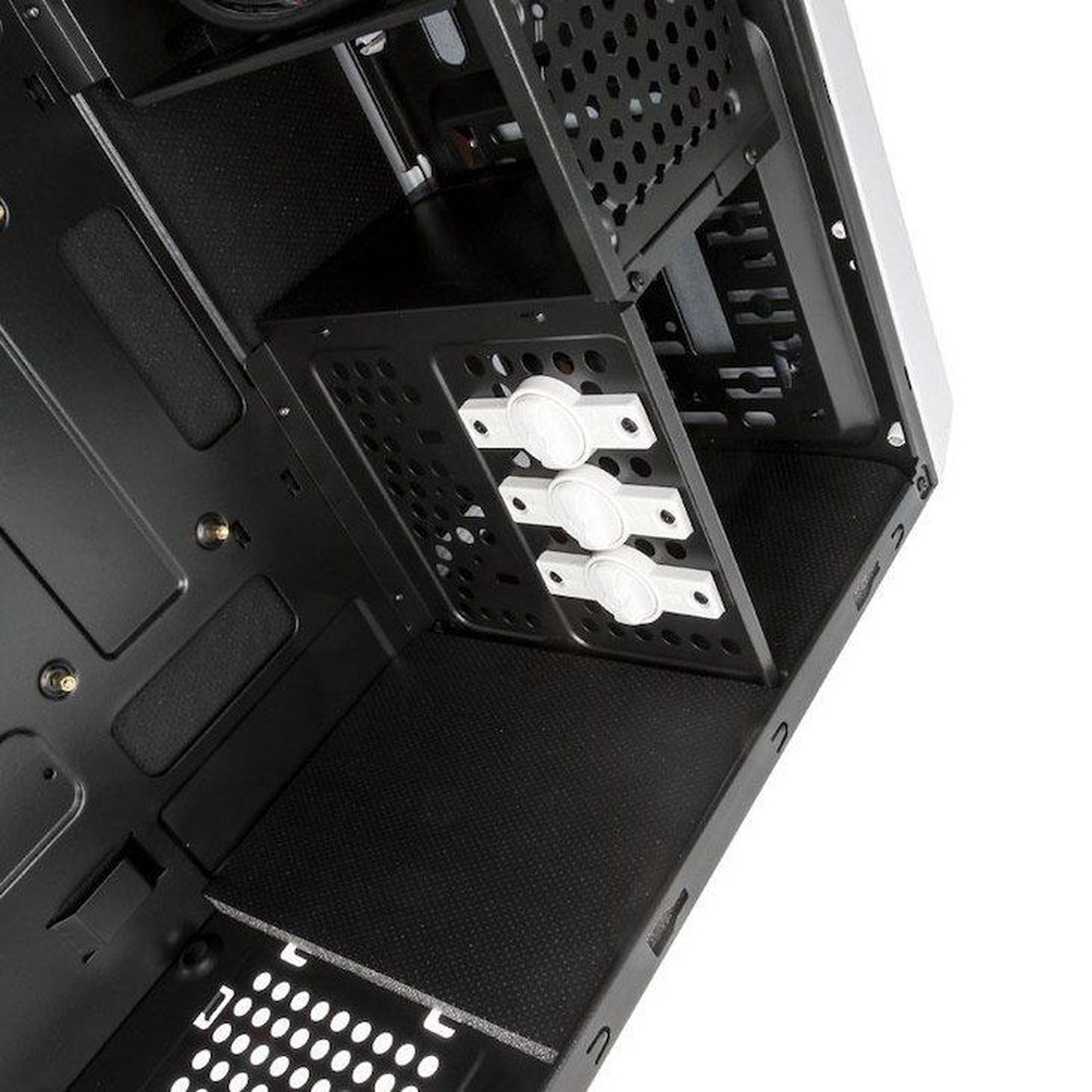

  floor front
• Insulation (enclosed):
  cover at the
  back, back at the top (fan slot)
