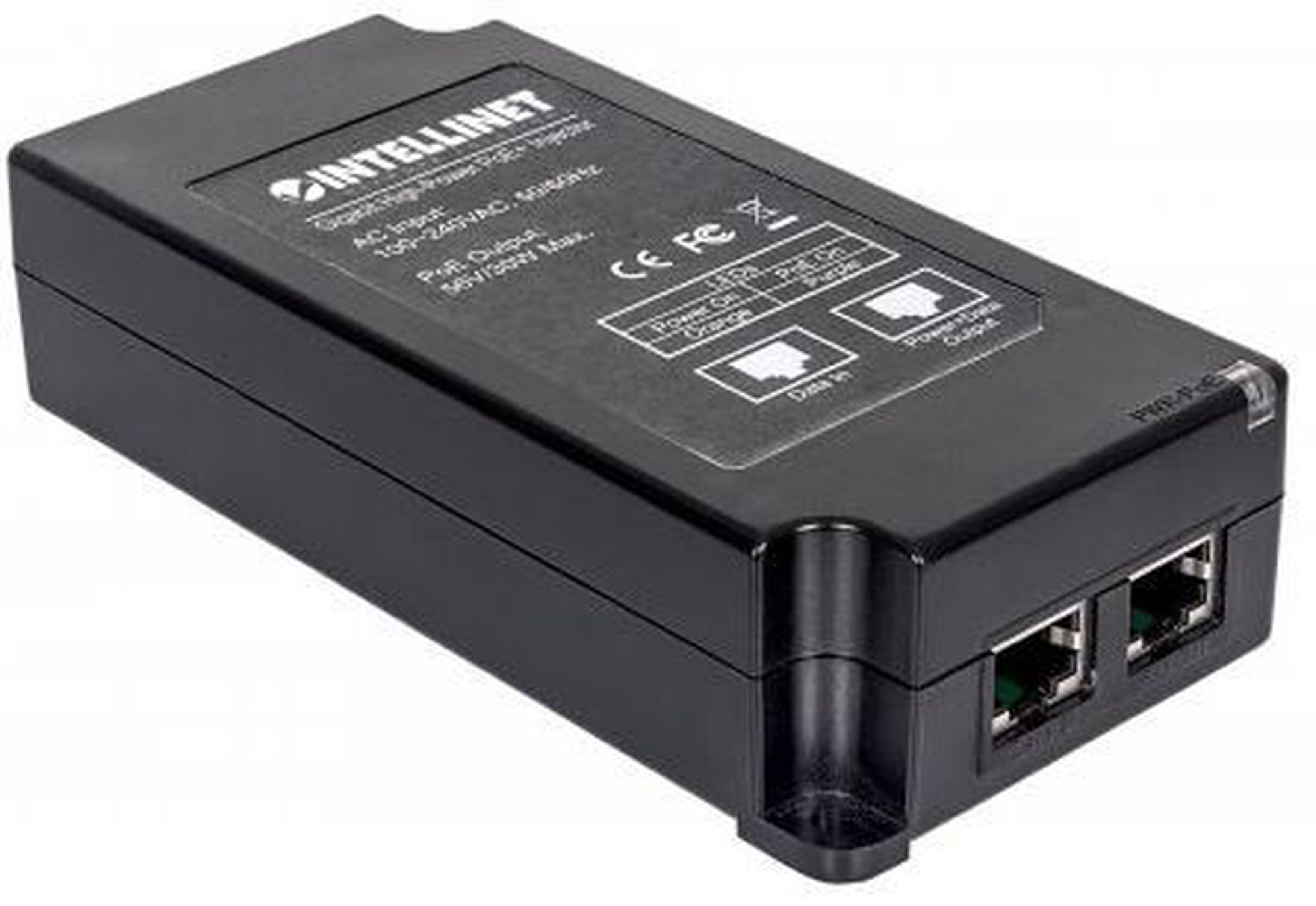

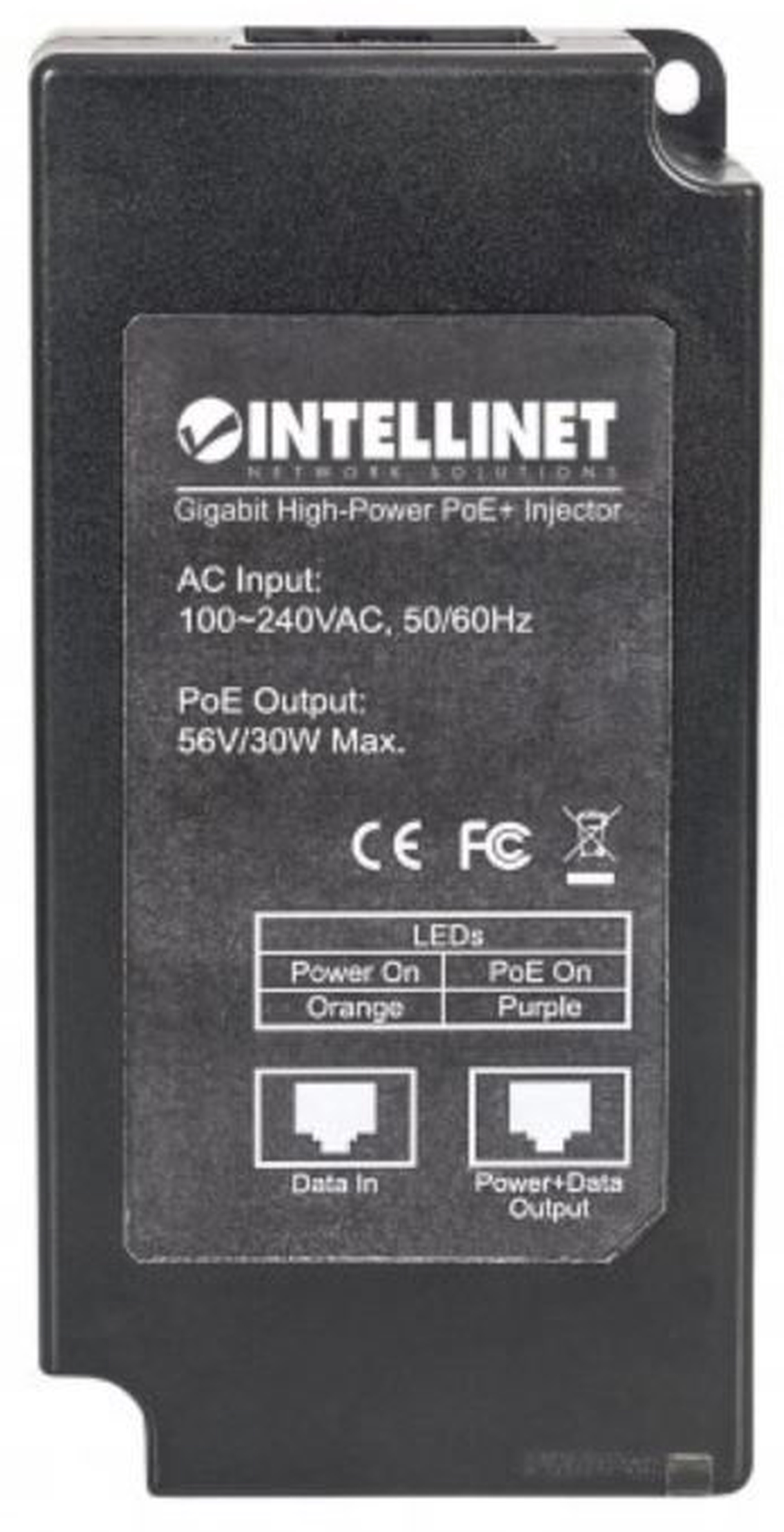

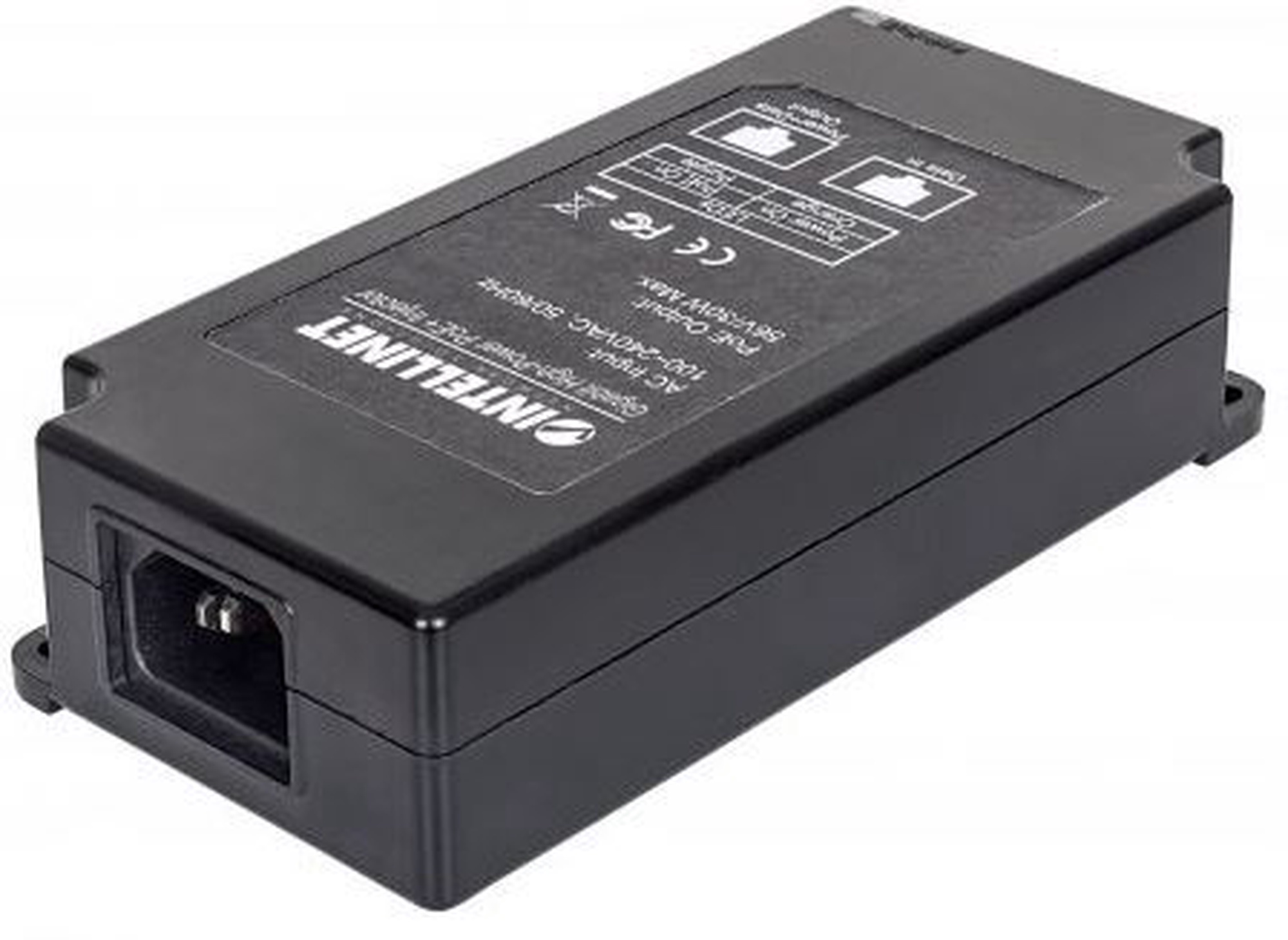

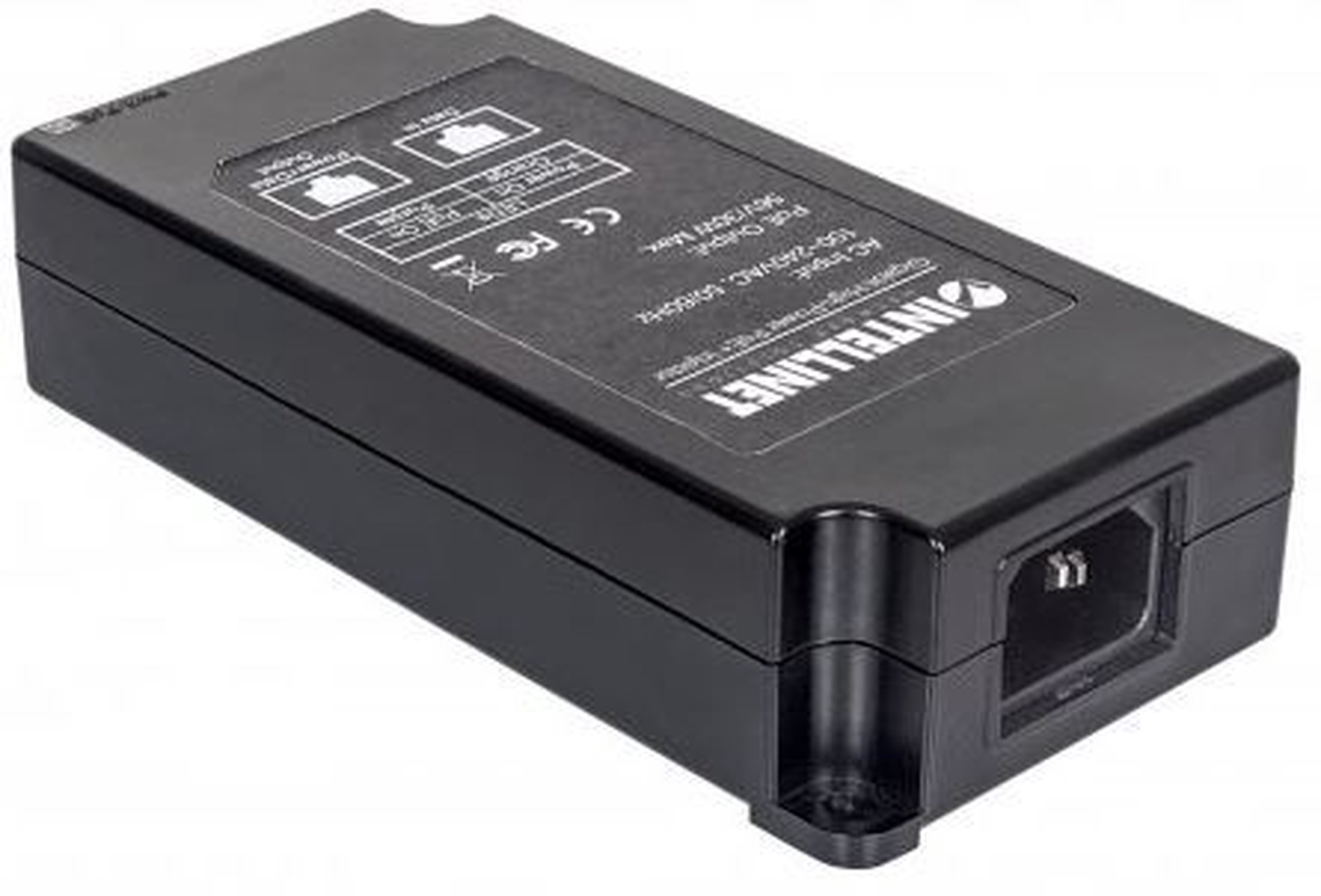

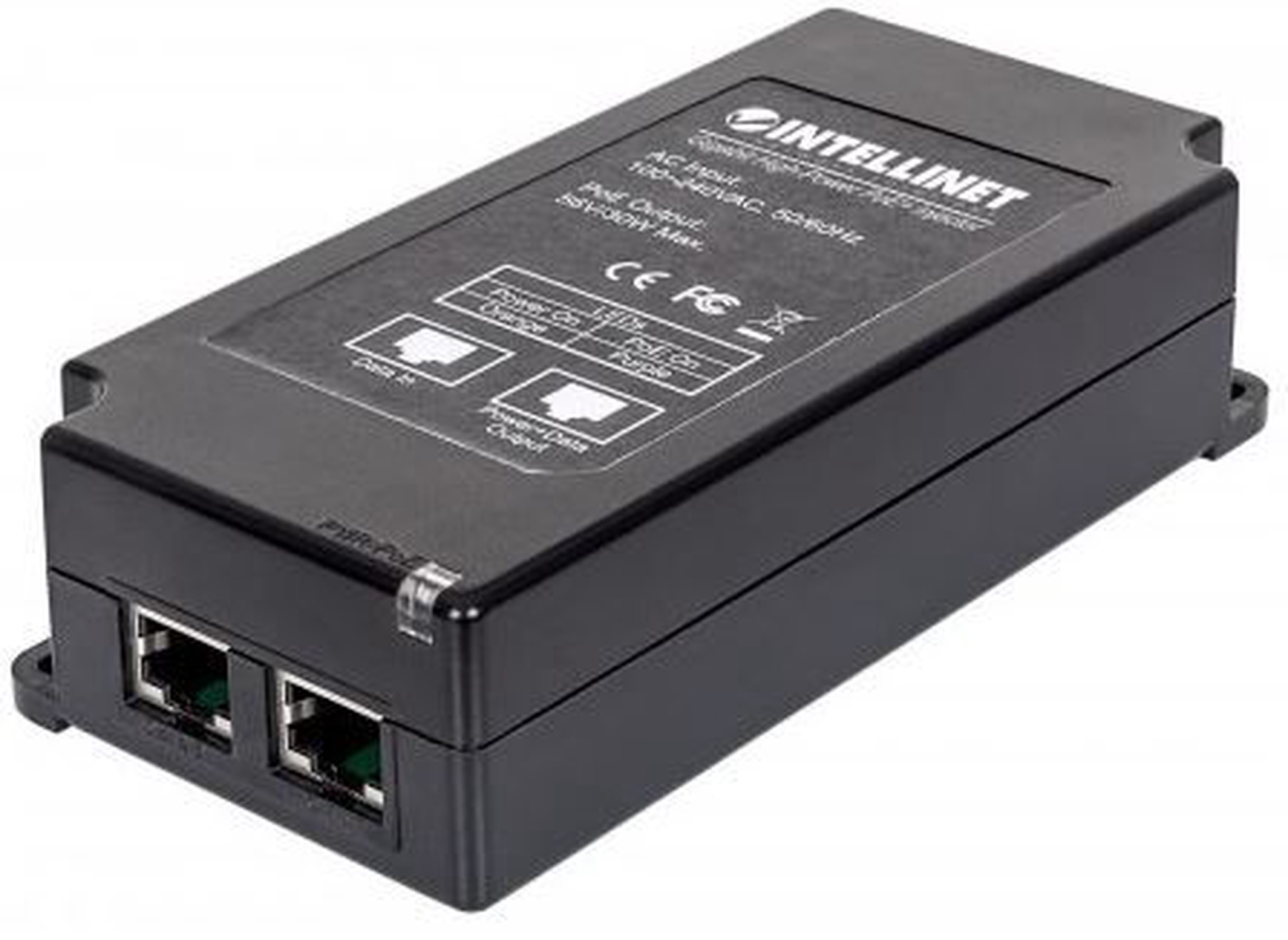

Intellinet Gigabit High-Power PoE+ Injector

Save time and money by delivering data and power via existing network cables
IEEE 802.3at compliant (PoE+)
Power output of up to 30 watts
Distance support: up to 100 m (328 ft.)
Supports all IEEE 802.3at- and IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP [Voice over Internet Protocol] telephones, IP surveillance cameras)
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
Internal power supply
Fanless design ideal for silent operation
UL- and CE-approved

Standards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3at (High-Power PoE+ Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3x (flow control, for full duplex mode)

General
Media support:
- 100Base-TX Cat5 UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

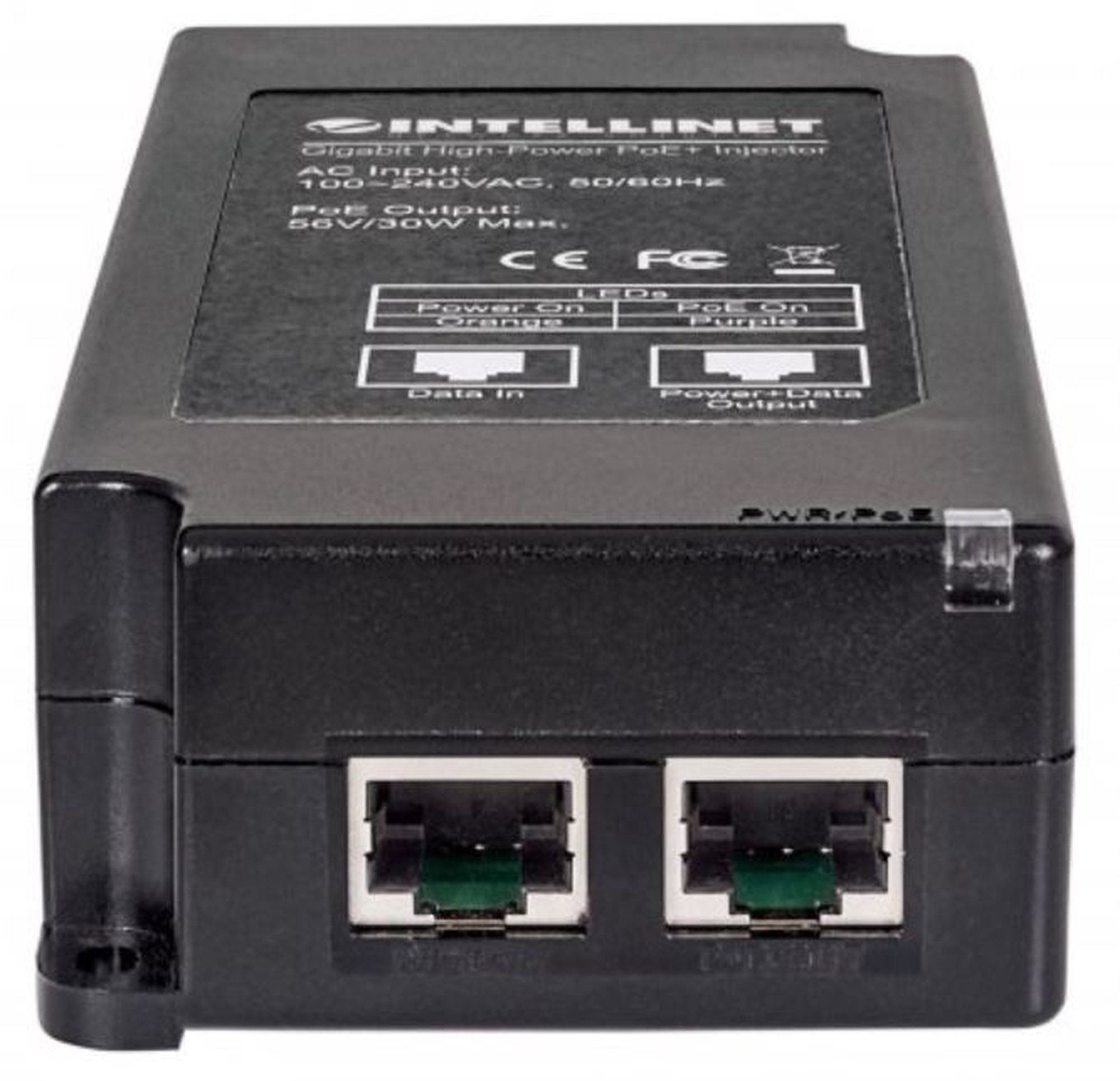

Ports:
- One RJ45 10/100/1000 Mbps input port
- One RJ45 10/100/1000 Mbps data and power output port
Protection functions:
- Short circuit protection for short GND
- Overload protection for currents over 0.6 A
PoE Pinout: IEEE 802.3af/at Standard Mode A
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)
Certifications: FCC Class A, CE, UL

LED
Dual-color power and PoE LED

Power

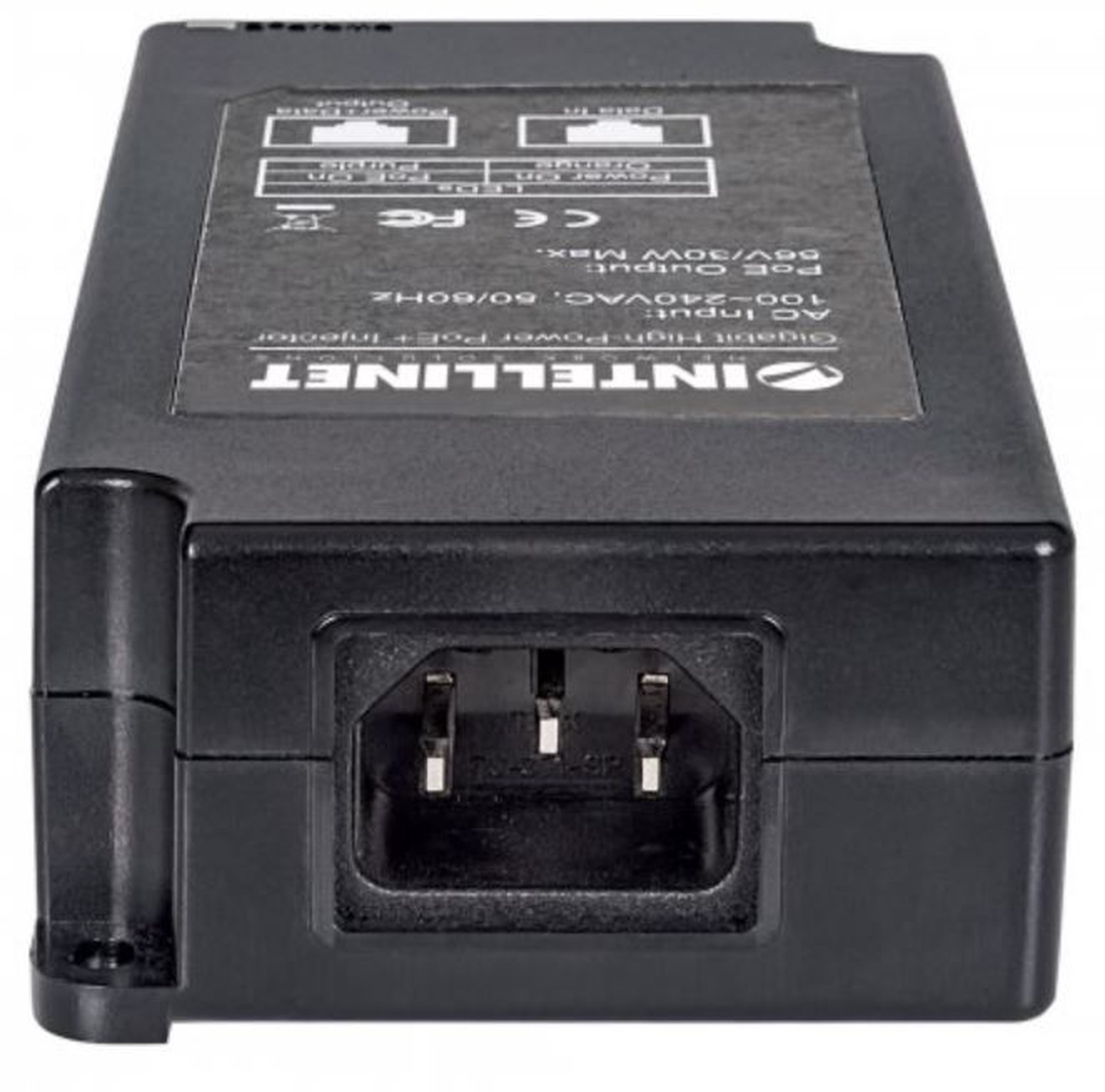

Input: 100 – 240 V AC, 50 – 60 Hz
Power consumption: 35 watts (maximum)

Environmental
Plastic housing
Dimensions: 136 (L) x 67 (W) x 34 (H) [mm] / 5.35 (L) x 2.64 (W) x 1.34 (H) [in]
Weight: 0.19 kg (0.42 lbs.)
Operating temperature: 0 – 50°C (32 – 122°F)
Operating humidity: 5 – 90% RH, non-condensing
Storage temperature: -20 – 80°C (-4 – 176°F)

Package Contents
Gigabit High-Power PoE+ Injector
Power cable
Instructions
