Komutācijas panelis Digitus

Best performance and link quality for your network.

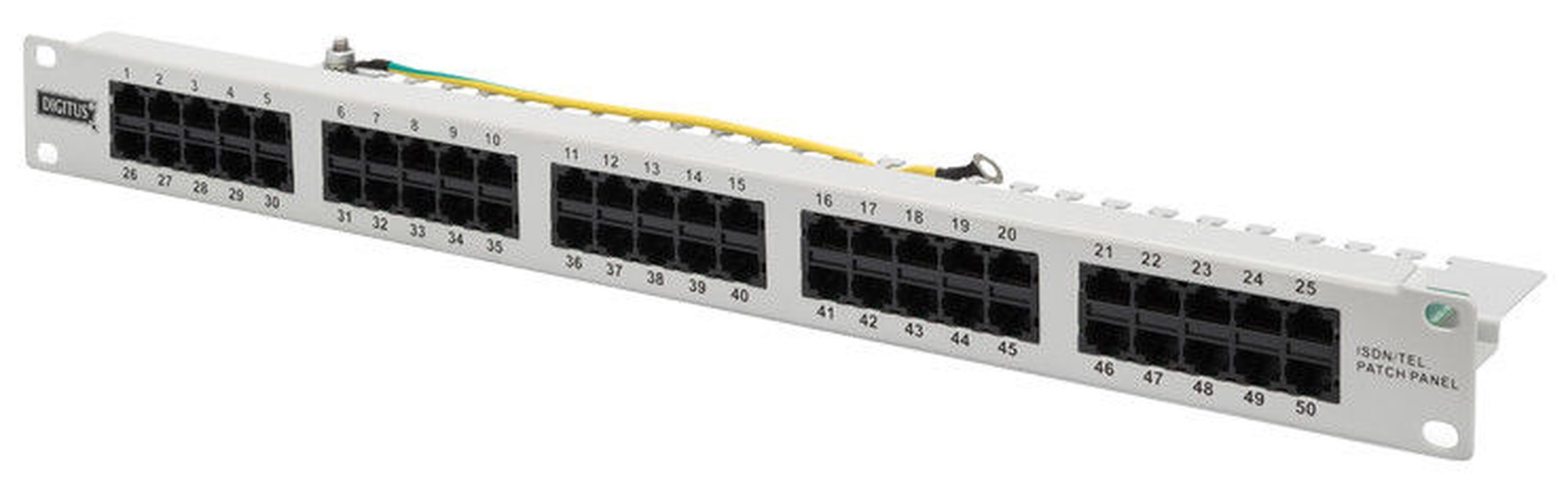

The ISDN Patch Panels from DIGITUS® are available as 25- or 50-port version. With 1.5 mm galvanized cold-rolled steel they are perfectly suitable for 19" rack mounting.
Technical Details

Transmission properties: Category 3
Area of application: Up to 16 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting

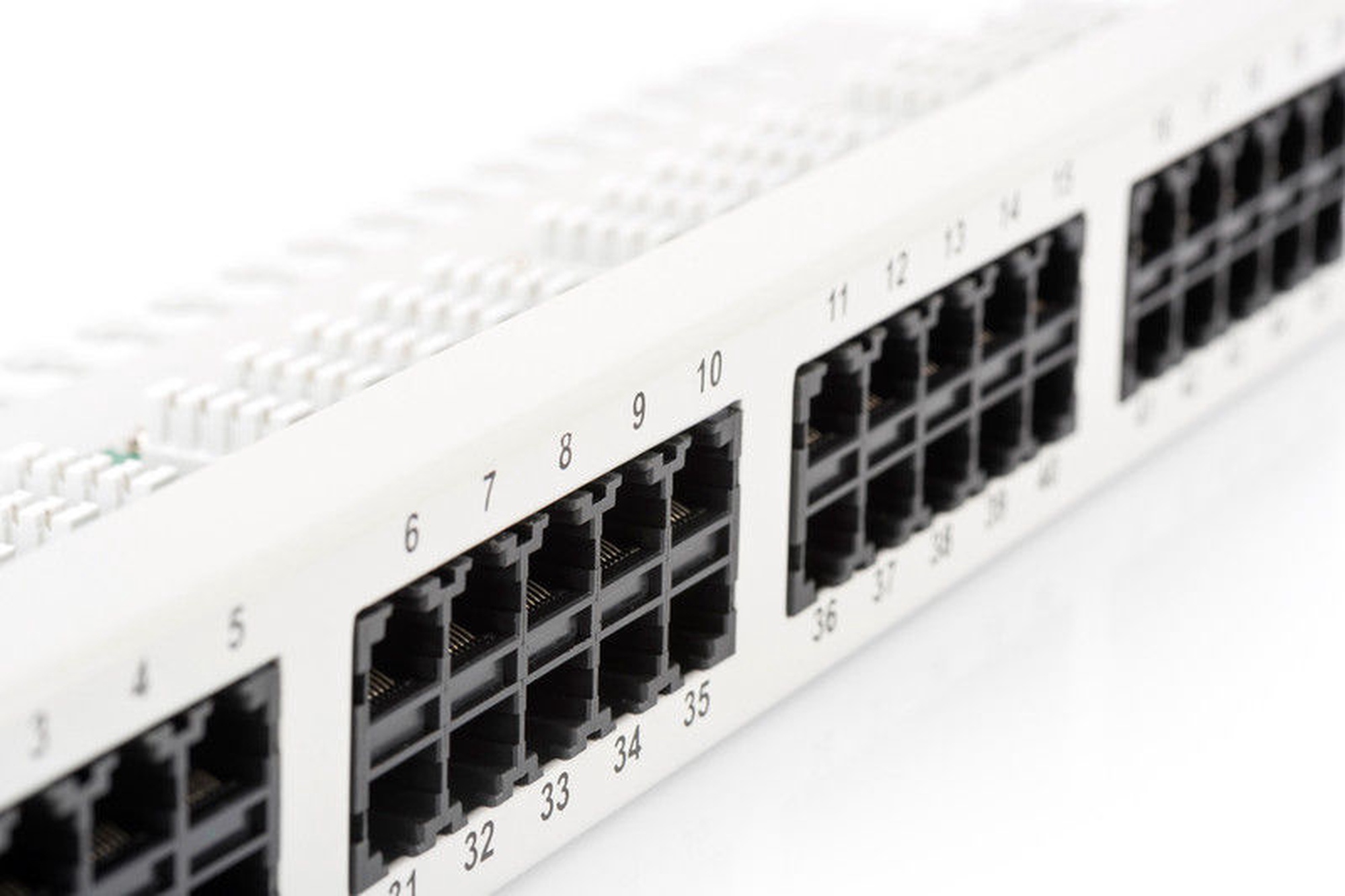

RJ45 female, 8P8C

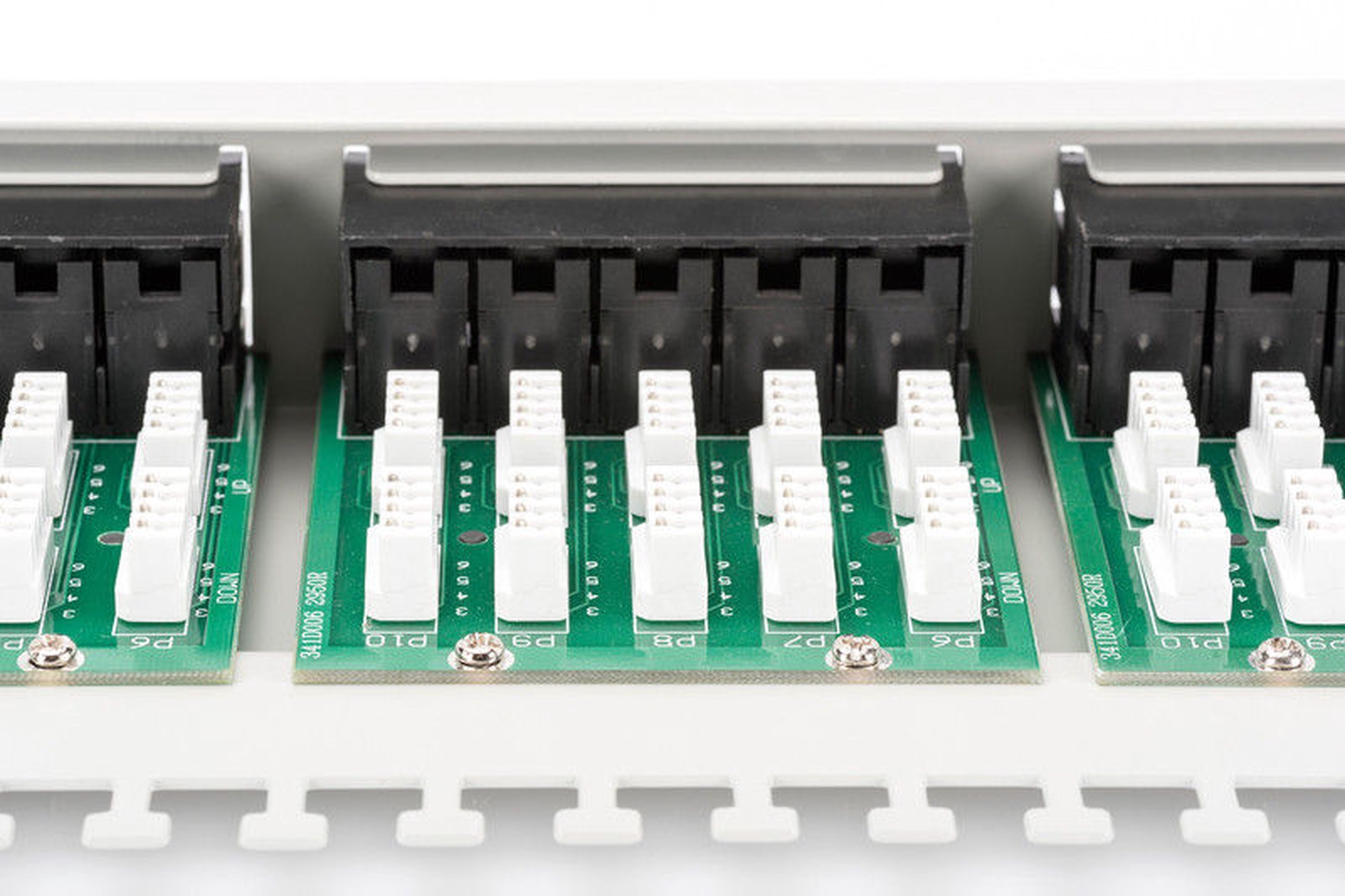

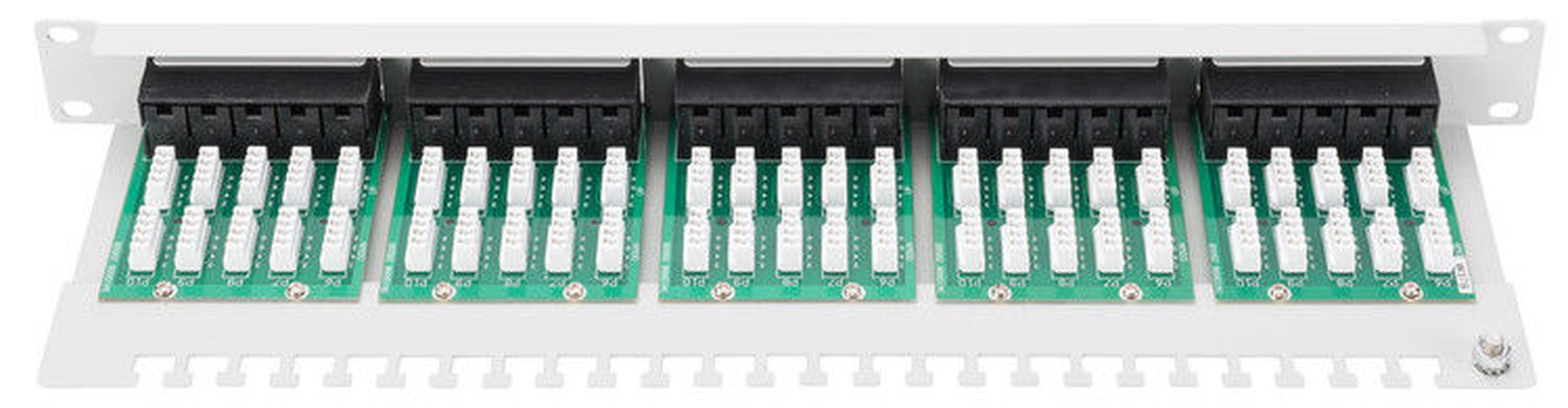

Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with cable tie
Central ground connection
Mechanical properties:
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.6 μ gold-plated contact

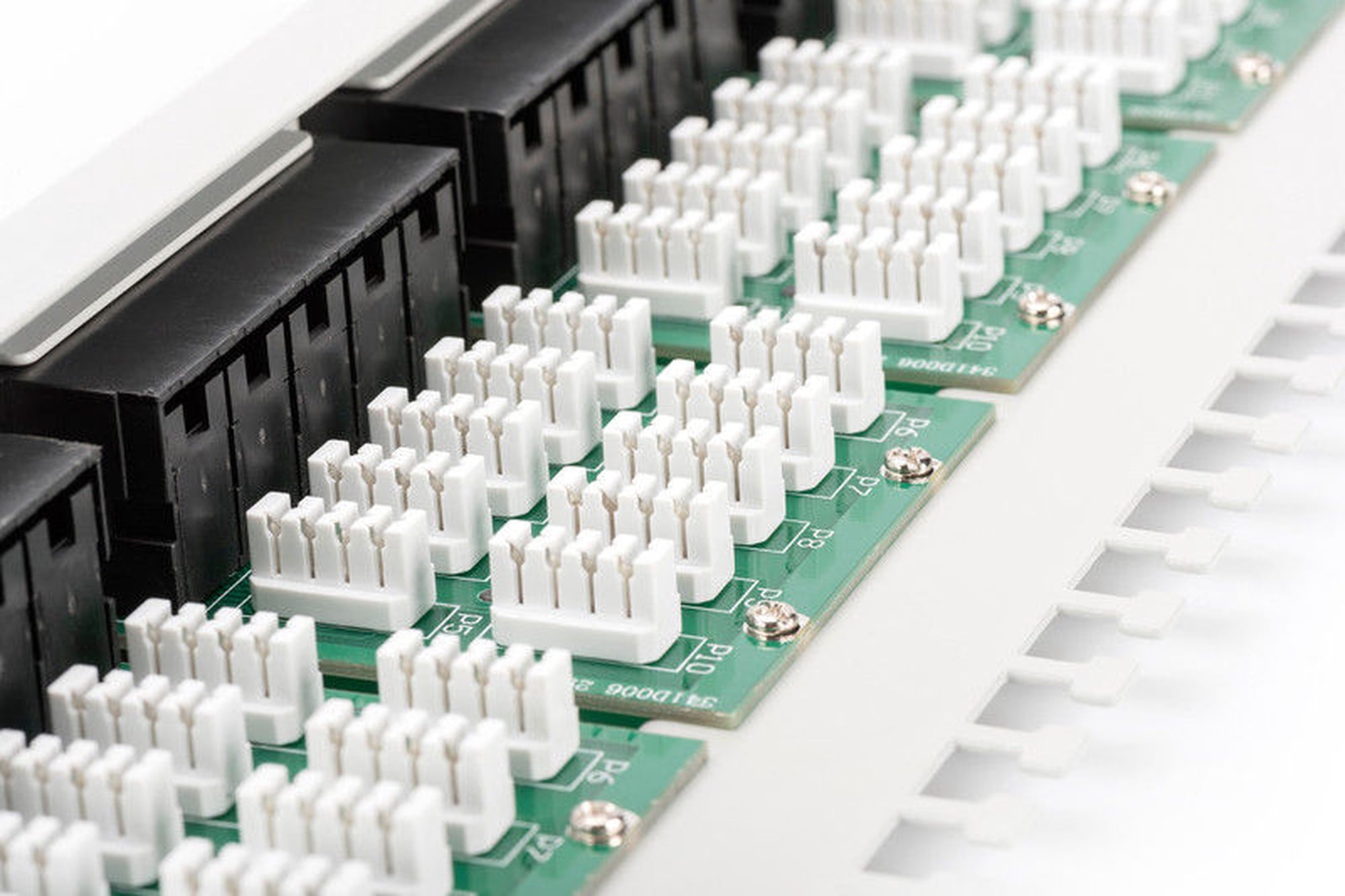

LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Ground wire: 18 AWG, 40 cm
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Carrying capacity: 1A at 50 °C
Insulation resistance: > 500 MOhm
Contact resistance: > 2.5 MOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Category: CAT 3
Ports: 50
Color: light grey, RAL 7035
Units: 1
