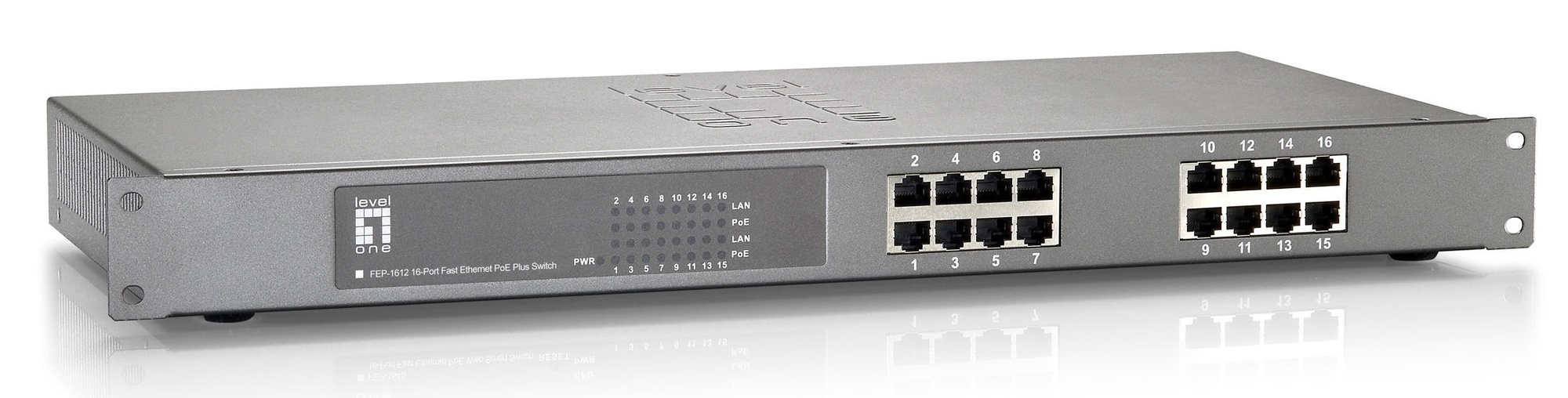

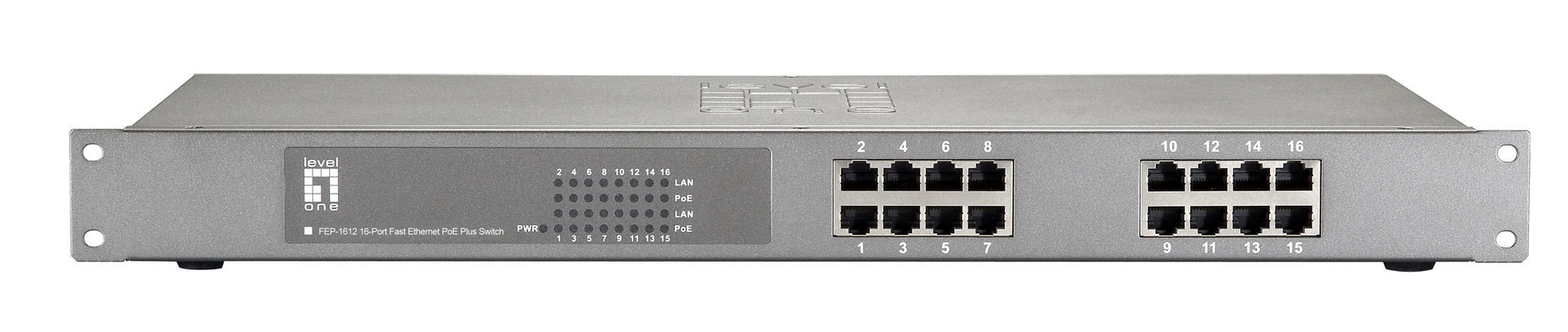

Komutators (Switch) LevelOne FEP-1612

LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely.

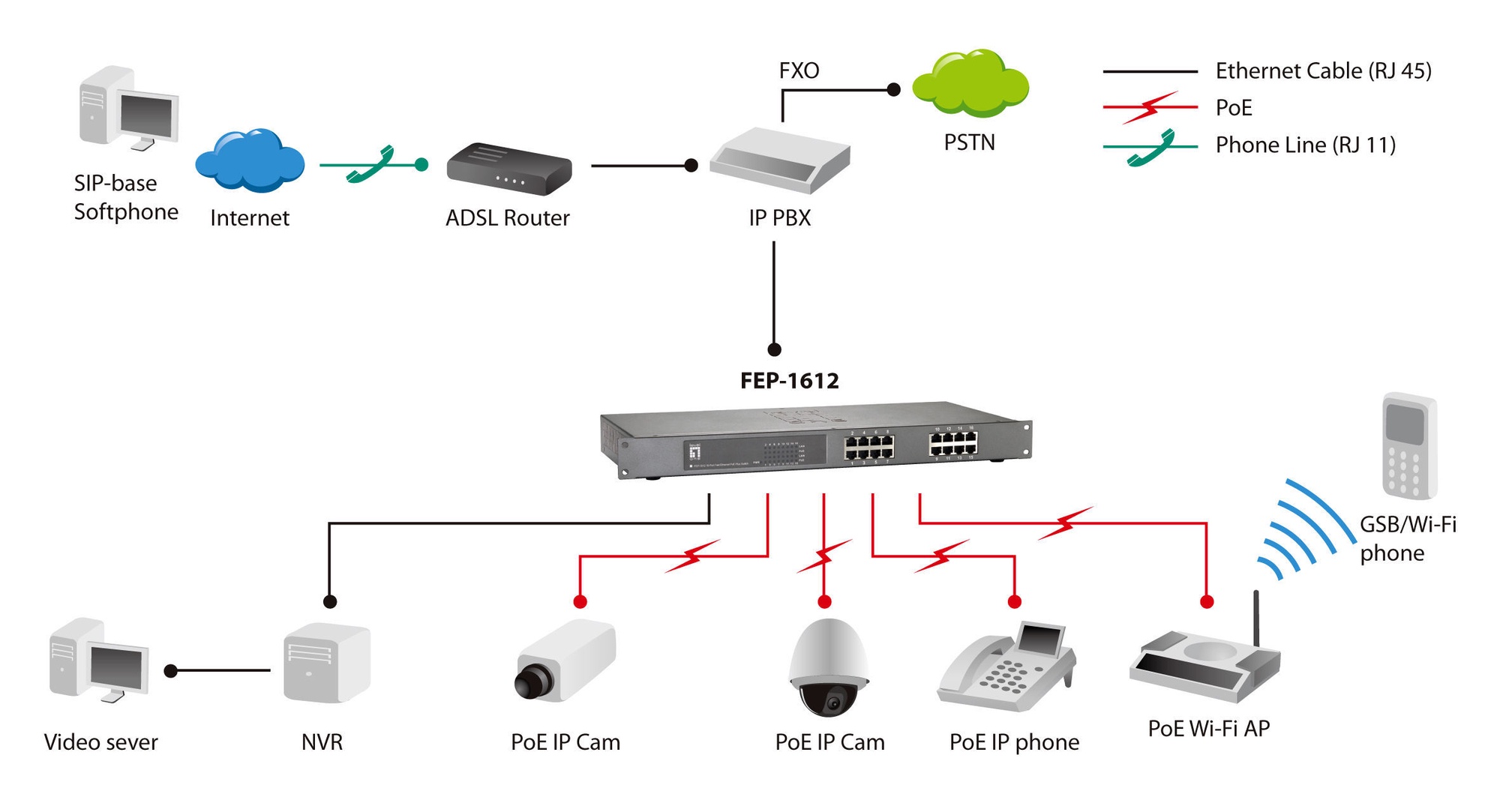

The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands.

Standards:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)

Buffer Memory: 160KB
Port: 16 x 10/100Base-TX RJ-45 PoE Ports
Button/Knob: Power On / Off Switch
Indicator: Power, Active, 10/100M, PoE
Transmission Method: Store-and-Forward

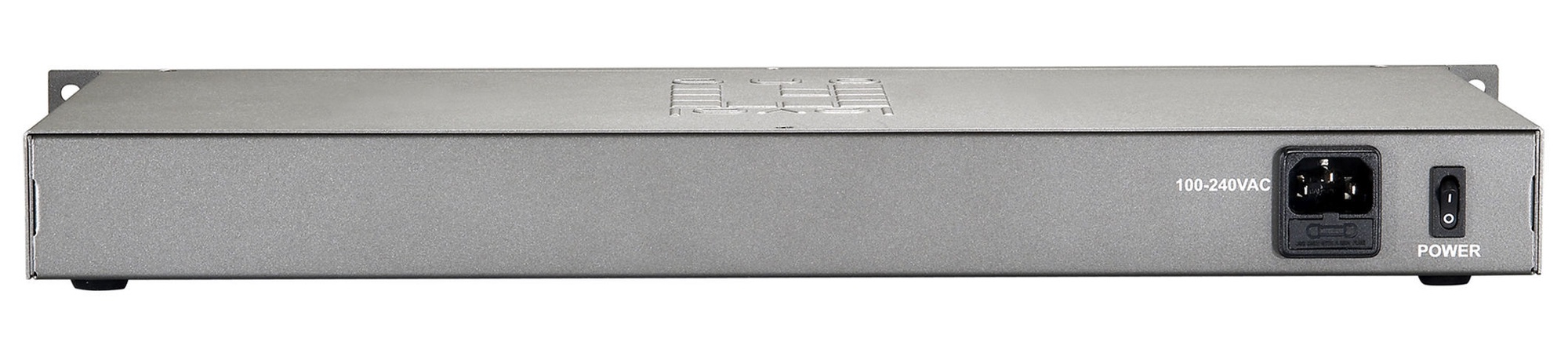

Power Input: 100-240V AC, 50-60 Hz, 5A Internal Power Supply

Power Consumption:
FEP-1612W380: 380W
FEP-1612W150: 150W
FEP-1612W120: 120W

Backplane (Gbps): 3.2Gbps
MAC Address Table: 4K
Data Rate: 10/100Mbps
Operating Temperature (°C): 0°C ~ 45°C
Operating Humidity (Non-condensing): 10% ~ 90%
Storage Temperature (°C): -40°C ~ 70°C
Storage Humidity (Non-condensing): 10% ~ 90%
Mount: Desktop and 19-inch rack-mountable

Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
