Kontrolieris LevelOne

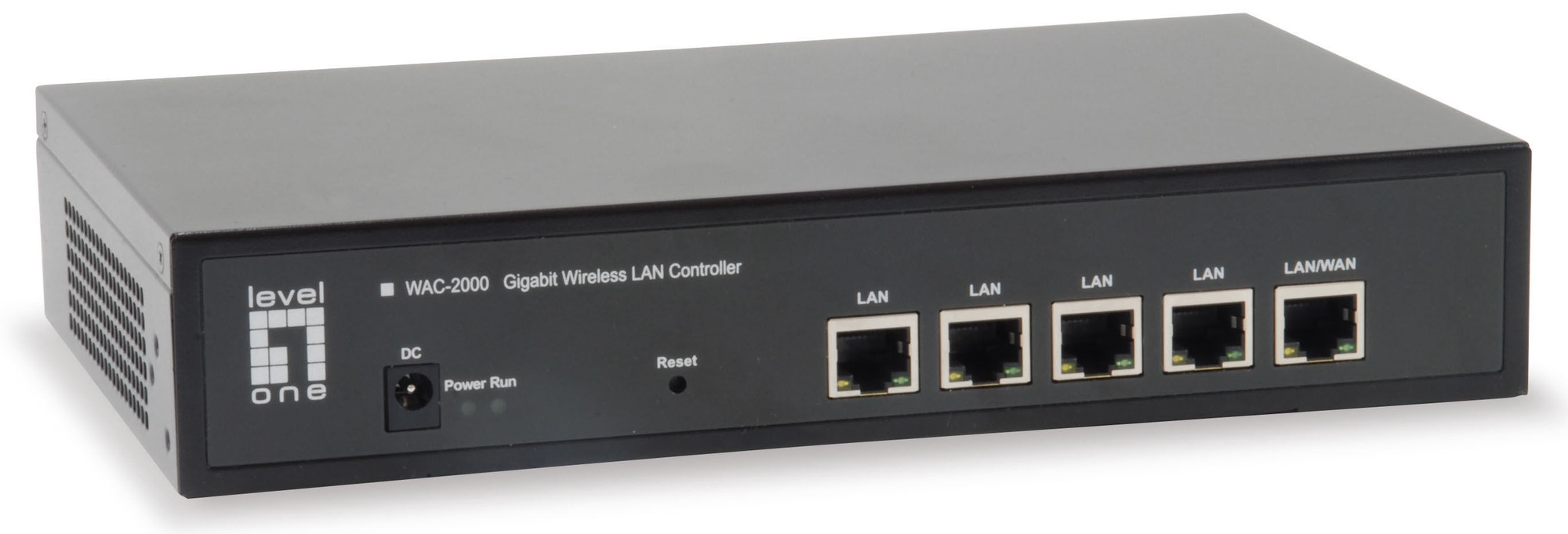

The LevelOne WAC-2000 is a Gigabit WLAN Controller designed for small-to-medium sized networks such as SMBs, schools, boutique hotels and apartments. Centralized management of up to 50 APs offers complete wireless security and service solutions for any mid-range wireless network.

The WAC-2000 controller is also an Internet gateway with robust firewall to protect Internet access against intruders, 1 WAN and 4 LAN ports in Gigabit speeds allow for fast and reliable distribution of data throughout the network.

WAC-2000 integrates a wide variety of functions, the administrator can easily build up AP’s configuration including tag-based VLAN settings, upgrade the AP’s firmware and monitor AP on/off status, numbers of connected AP and users. Captive portal function provides a convenient way of authentication for guest users.

The LevelOne WAC-2000 also supports real-time control to access point RF scanning for signal strength and interference information. According to the results, WAC-2000 will adjust traffic loading, output power, RF coverage and channel distribution of the APs to optimize wireless coverage and throughput.

Standards & Protocols:
IEEE802.3(10BASE-T)
IEEE802.3u(100BASE-T)
IEEE802.3ab(1000BASE-T)

Memory:
Flash:16M
SDRAM:128M

Port:
1*10/100/1000Mbps WAN port
4*10/100/1000Mbps LAN ports

Button/Knob:
Reset
Power

Indicator:
Power
System
WAN
LAN

Power Input: 12V/1.5A
Power Consumption: <5 W
Data Rate:
LAN: 10/100/1000Mbps
WAN: 10/100/1000Mbps

Operating Temperature (°C):
Operating: -20°C~50°C
Storage: -30°C~70°C

Operating Humidity (Non-condensing): 5~90%, non-condensing

General:
Support AP Management, up to 50 Aps
Support AP Disable, Restart and Reset
Support AP Configuration Models Auto-loading
Support AP Layer 2 Roaming
Auto-IP detection and Distribution to avoid AP's IP confict in the whole networking.
Support smart QoS and firewall functions under gateway operation mode to protect the whole networking safty.

AP Models available to manage:
WAP-6121,WAP-6221,WAP-8121,WAP-8122,WAB-5010,WAB-6010,WAB-8011,WAP-8021,WAP-6017

Security:
Support VLAN based on different policy
Support AP Client Isolation
Support real-time monitoring
Support AP status monitoring
Support AP RF and user monitoring

Management: Diagnosis: Syslog
