Korpusa detaļa Inter-Tech IPC 4U-4129-N, melna krās.

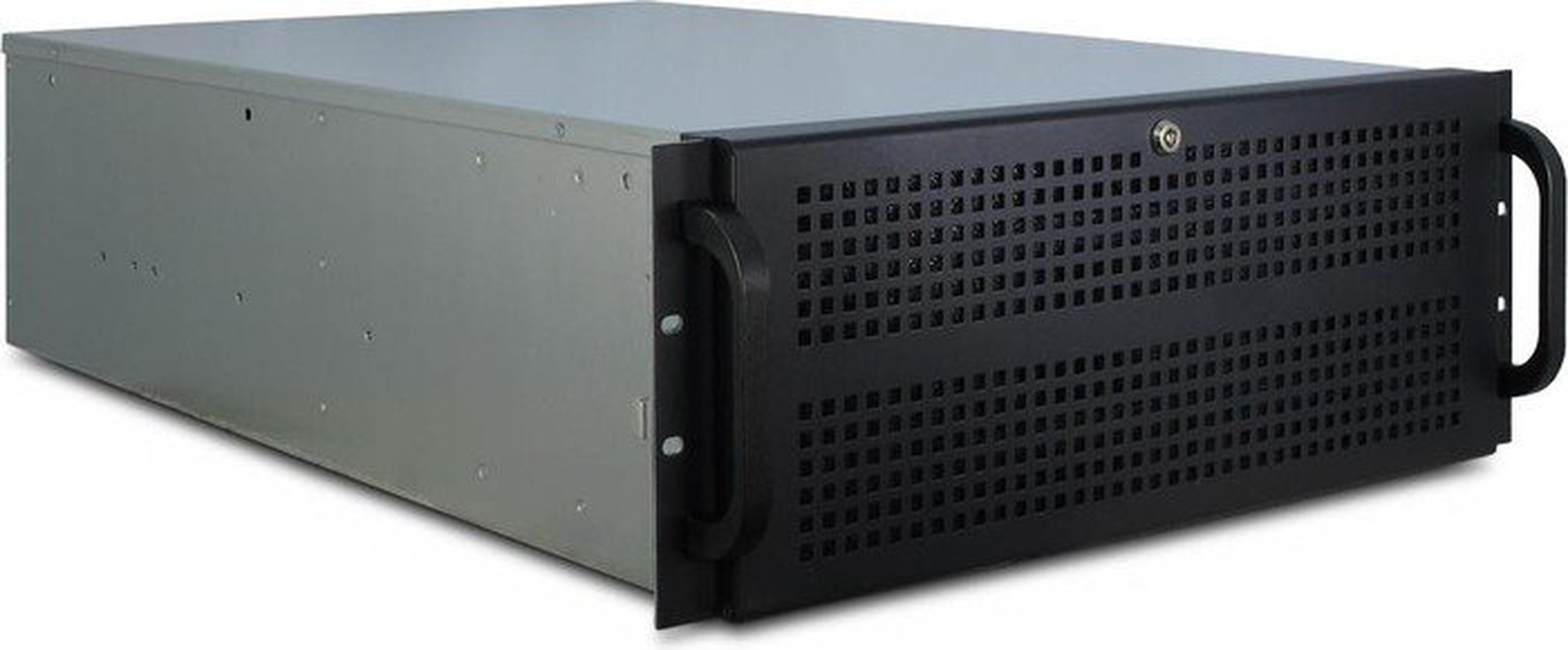

IPC 4U-4129-N, 4U rack server housing - black

Server rack in 4U format from Inter-Tech . The long installation depth of 650 mm also enables large mainboards (up to EATX / SSI EEB) to be accommodated. The robust steel construction offers space for up to four 2.5 "and eleven 3.5" data carriers. A total of seven fans are already pre-installed and the lockable front flap offers a removable dust filter.
The features of the Inter-Tech IPC 4U-4129-N server housing at a glance:
4U rack server case from Inter-Tech
For Mini ITX, mATX, ATX, EATX and SSI EEB boards
Pre-installed fans: 5x 120 mm and 2x 80 mm
Lockable front flap with dust filter insert
Removable and positionable drive cages
3x 5.25 inches (external) / 11x 3.5 inches (internal) / 4x 2.5 inches (internal)
Seven expansion slots
The features of the Inter-Tech IPC 4U-4129-N server housing in detail

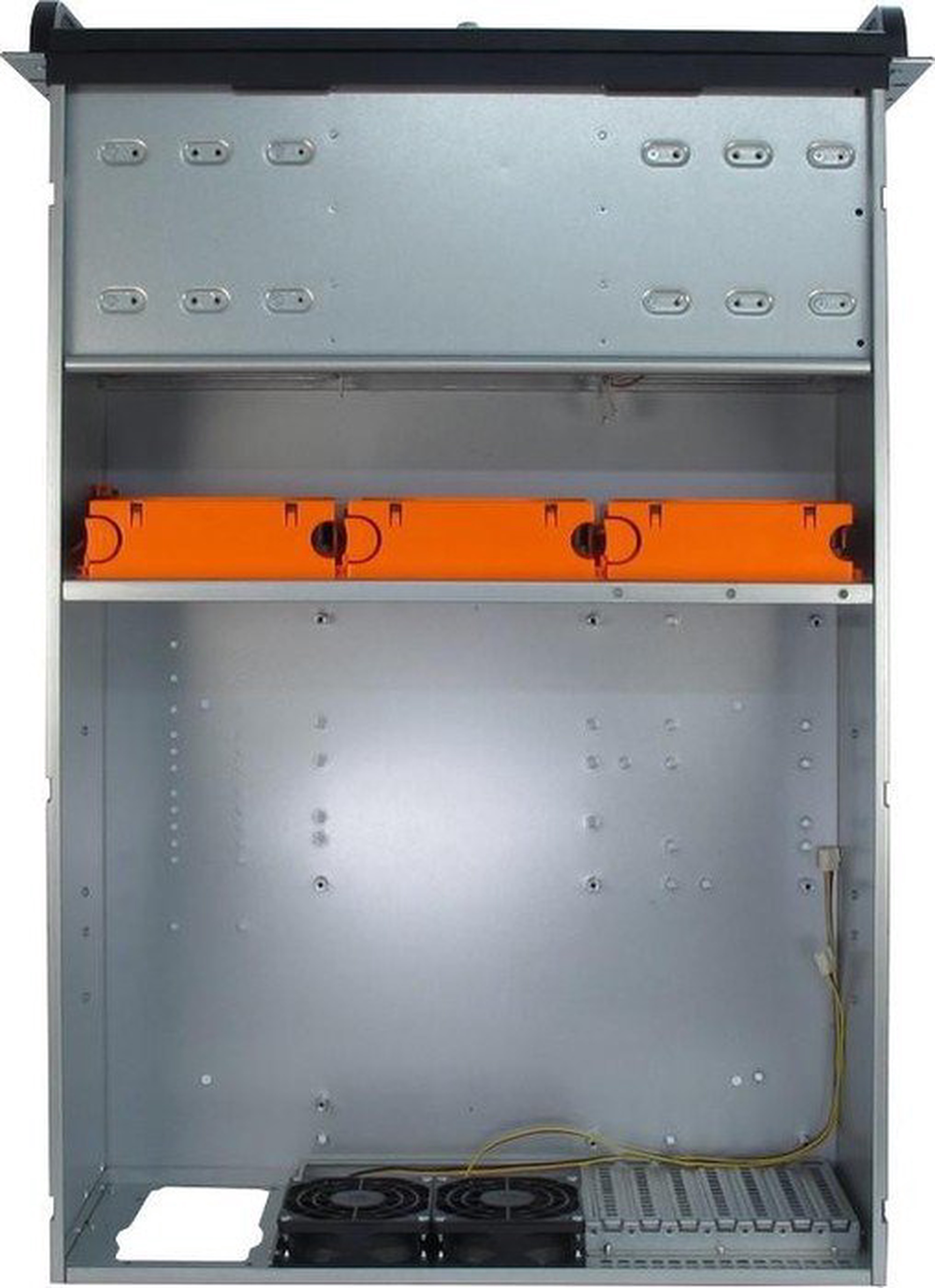

The Inter-Tech IPC 4U-4129-N is a 4U server housing and can accommodate eleven internal 3.5-inch hard drives , three external 5.25-inch drives and four internal 2.5-inch drives. Thanks to the large installation depth of 650 mm, large motherboards up to the EATX / SSI EEB form factor can also be mounted. Seven slots are available for expansion cards. Inter-Tech has already installed seven fans to cool the hardware and data carriers .

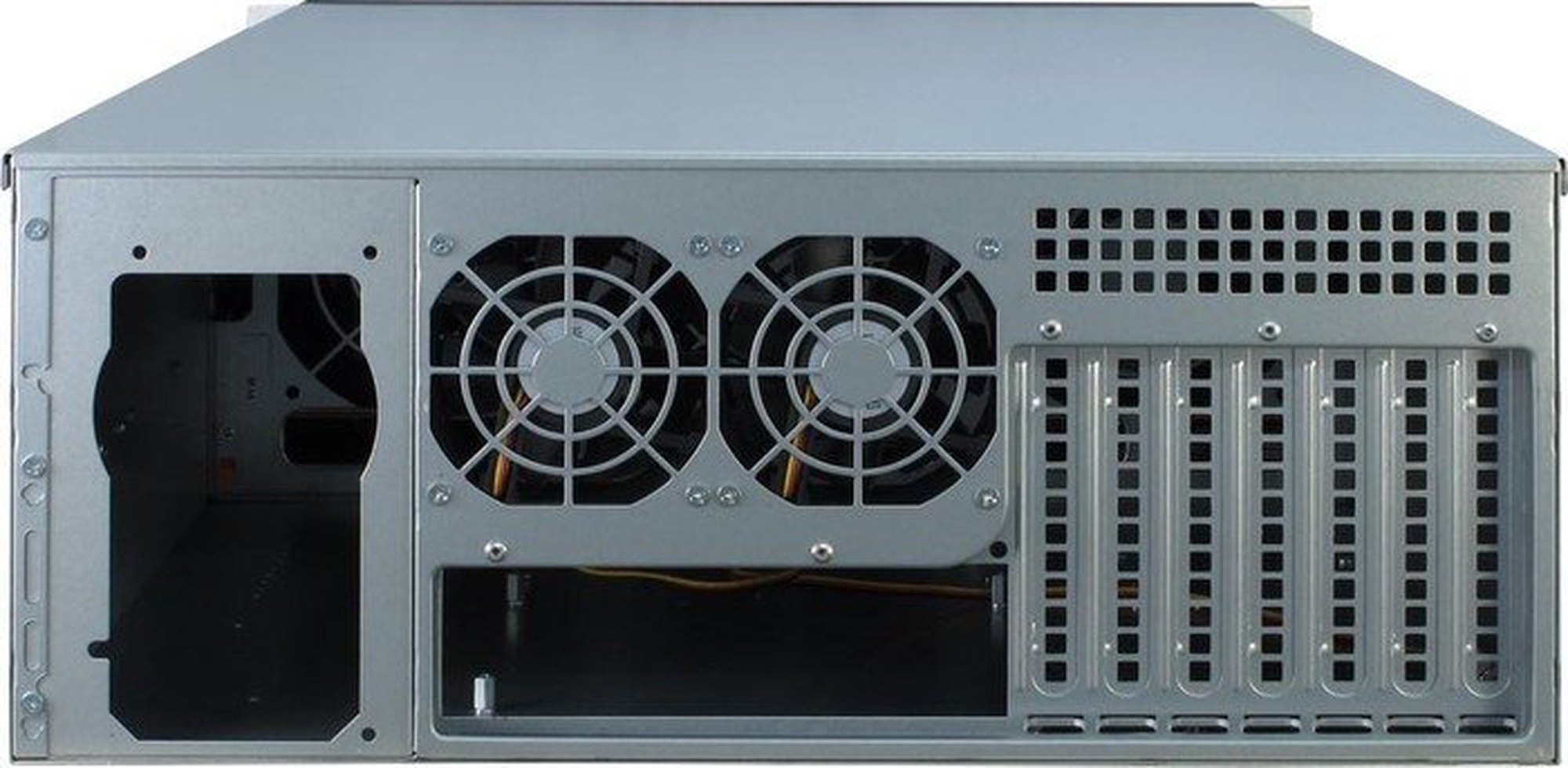

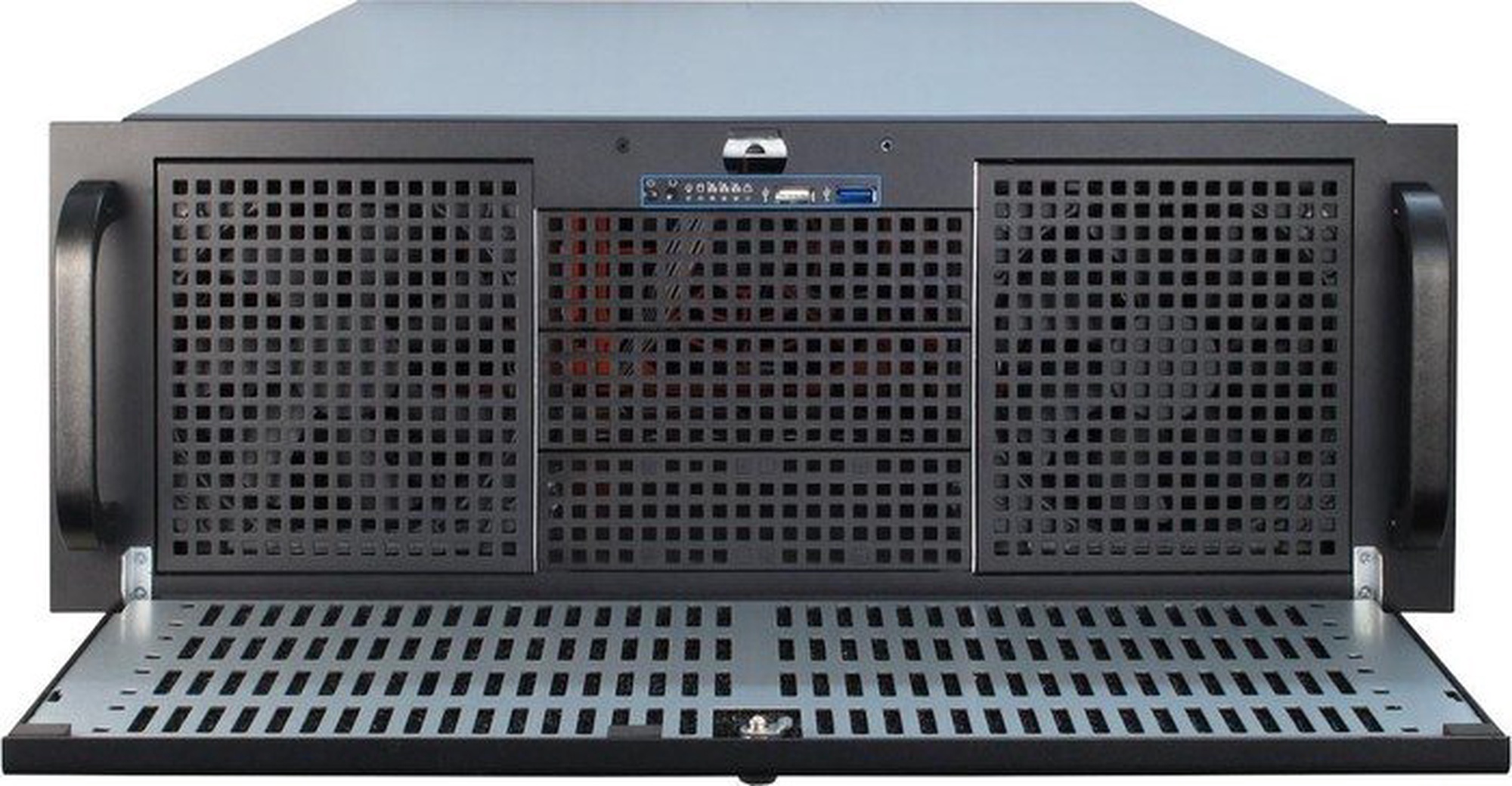

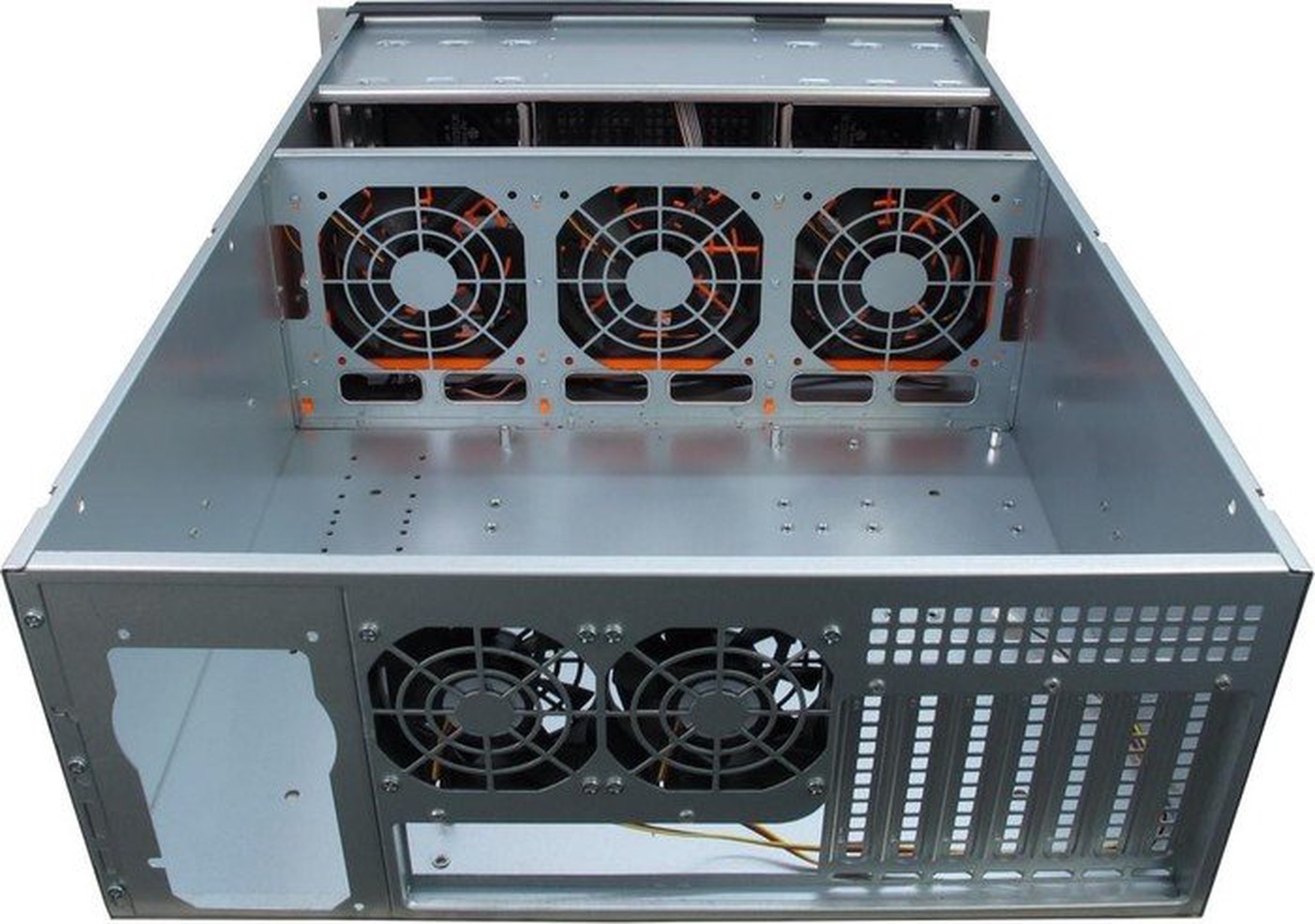

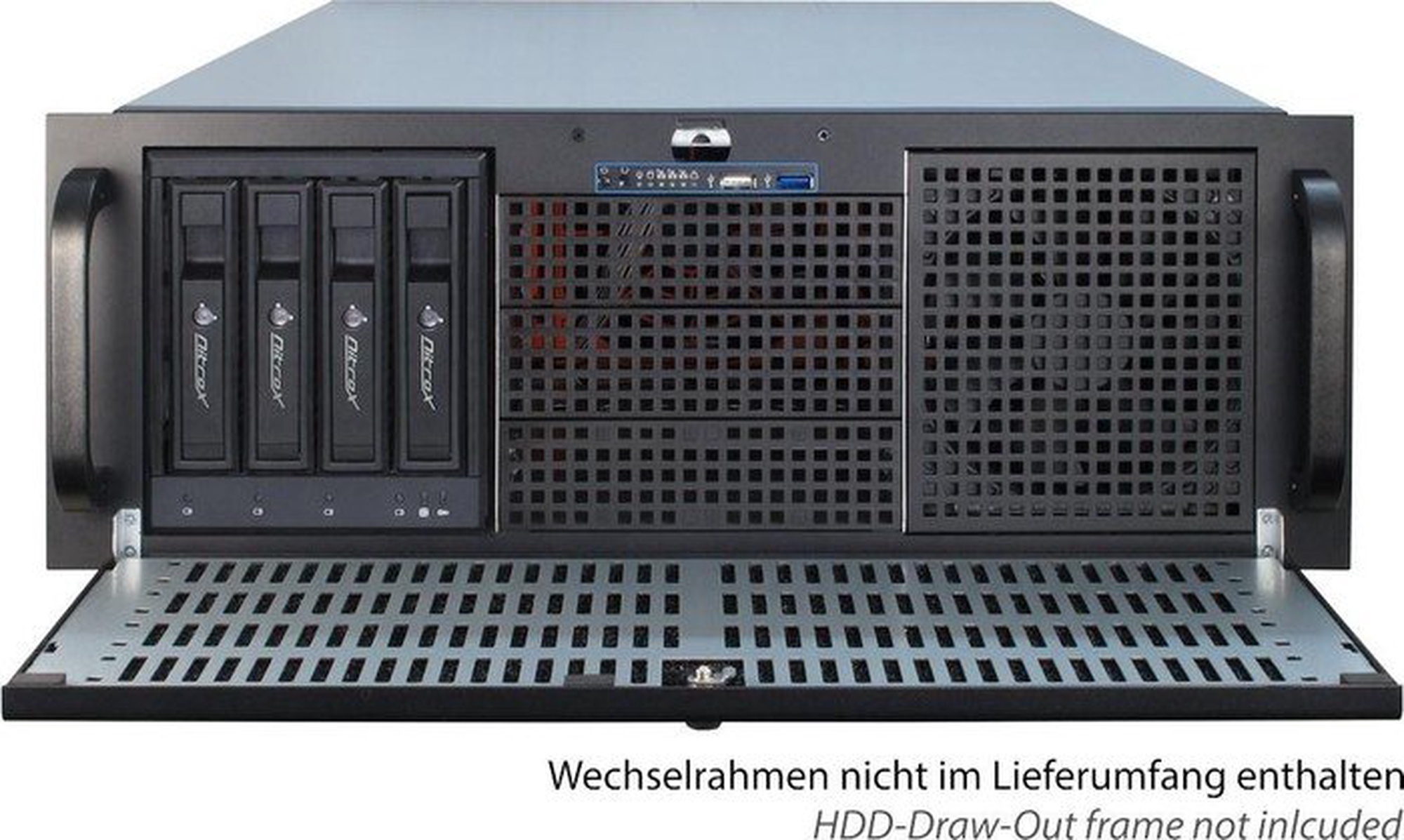

In the front there are two drive cages , each with a 120 mm fan. Three more 120 mm fans are installed internally and two 80s fans sit in the back. The front offers an effective dust protectionremovable dust filter insert . Behind the lockable front flap , next to the drive cages, there are three external 5.25-inch drive bays, the status LEDs and one USB 2.0 and one USB 3.0 port.

If optionally available telescopic rails are used during installation, the 4U-4129-N housing can be pulled out of the rack using the two handles for simple maintenance work. CPU coolers must not exceed a height of 155 mm, graphics cards can be a maximum of 345 mm long . A standard ATX power supply or a redundant power supply can be installed to supply the hardware with power.
