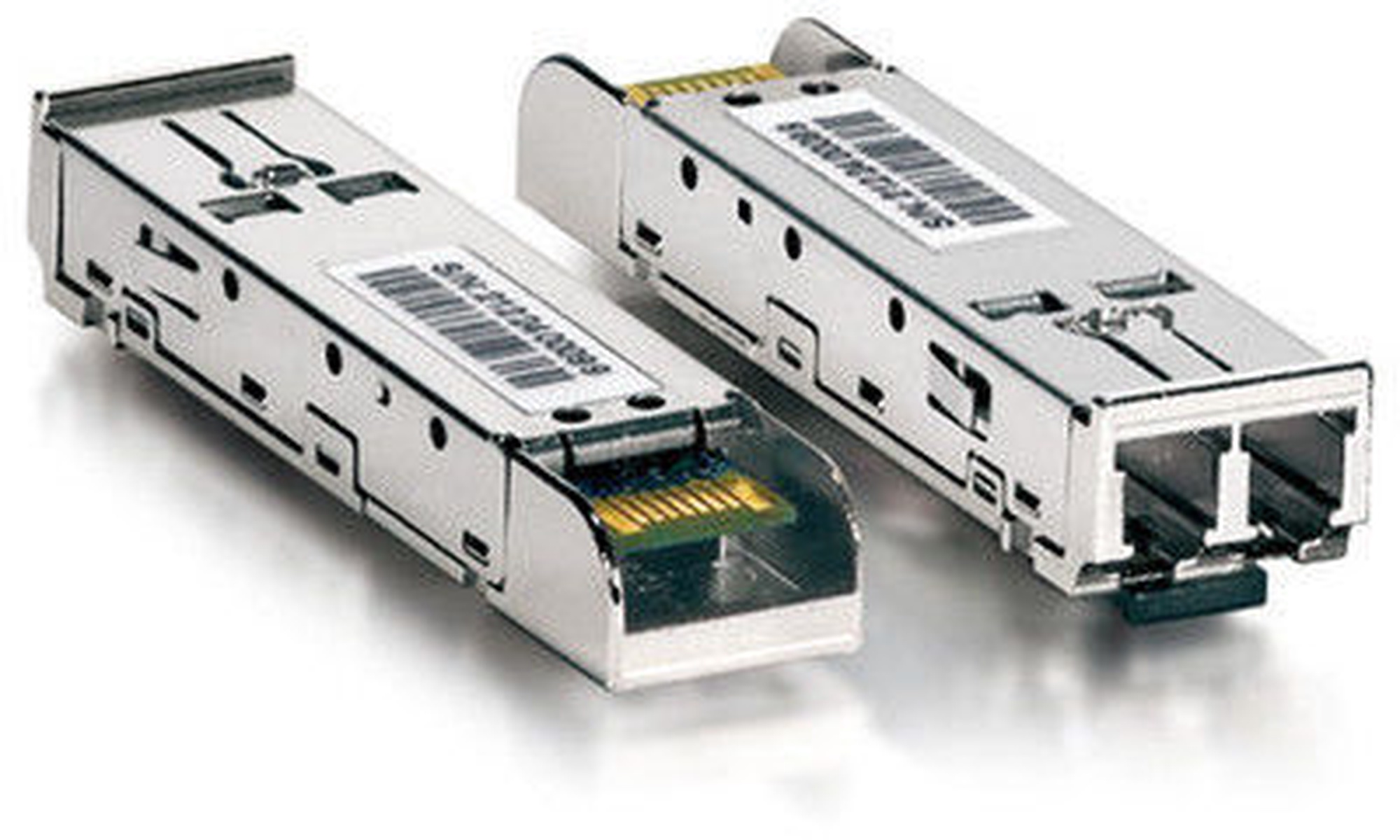

LevelOne GVT-0300 Fiber Optic Transceivers 1.25Gbps

Preces apraksts angļu valodā:


The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch
LC connector for a solid connection into the SFP port.

Multi-Purpose Usage
GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.

LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.

Key Features:

• Small Form Factor Pluggable MSA compliant
• For Multi-mode Applications
• Up to 850nm & 1.25Gbps
• Compliant for IEEE802.3z Gigabit Ethernet
• Easy to install and Hot-pluggable
• Connect switches up to 550m away with each other
• Single 3.3V power supply
• Duplex LC Connector
• TTL signal detect indicator
• EEPROM with serial ID functionality
