Mātesplate Supermicro H11DSI-NT

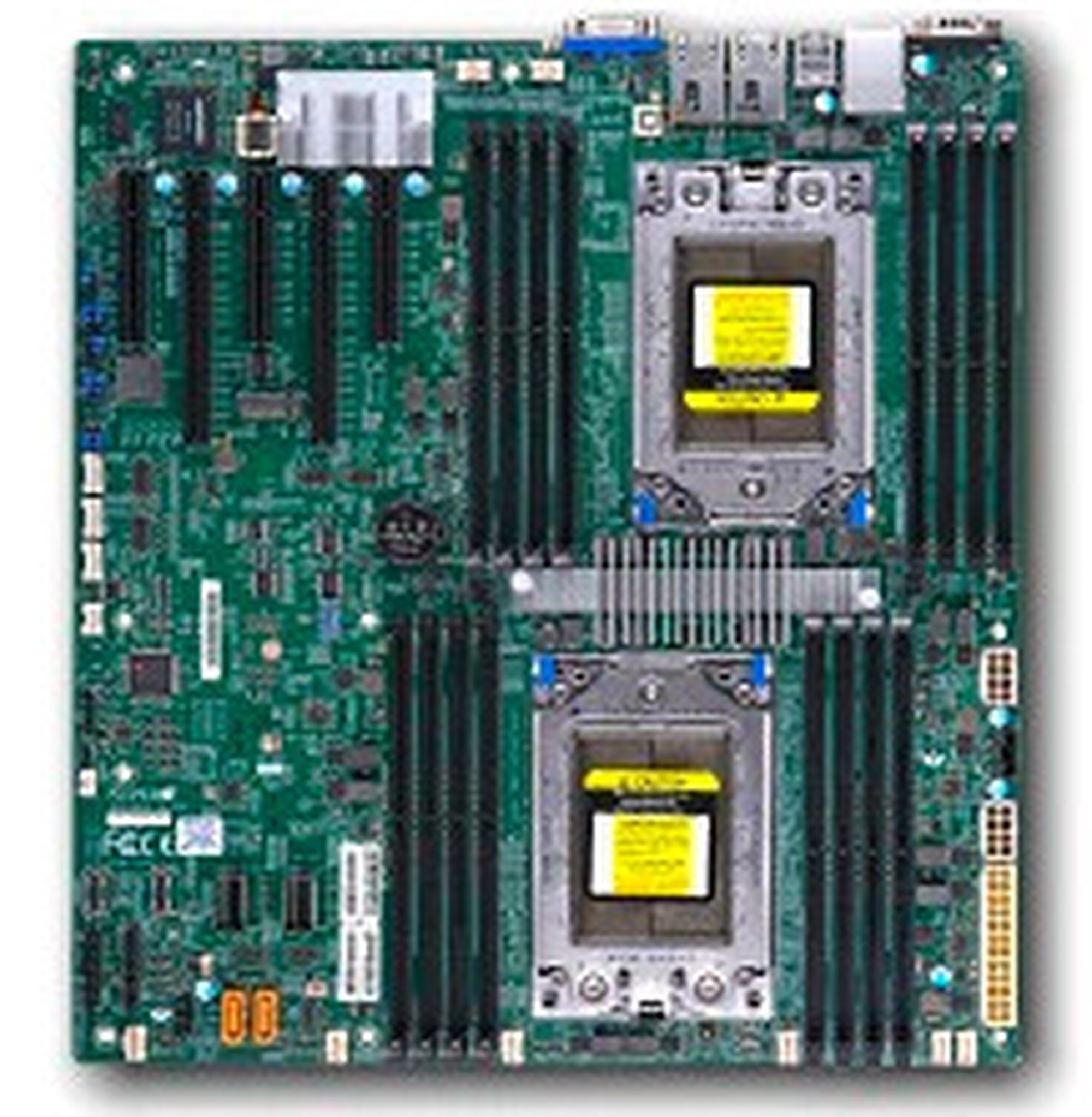

SUPERMICRO H11DSI-NT - motherboard

The H11DSi-NT mainboard from the established server manufacturer Supermicro forms a strong basis for your server system. Equipped with dual SP3 socket, it supports AMD EPYC 7001/7002 processors. You can add more computing power and stability with up to 4 TB registered ECC DDR4 RAM (depending on the board revision). 10 SATA ports offer many options to integrate your storage drives. With 10 GigabitLAN, the H11DSi-NT is quickly and reliably connected to the network.

Numerous other connection
options 2 x PCIe 3.0 x16, 3 x PCIe 3.0 x8 and an M.2 interface offer many other connection options. With the H11DSi-NT you get graphic output via VGA and you establish the network connection via 2 x 10 Gigabit LAN and 1 x dedicated IPMI LAN. 2 USB 3.0 ports and 4 USB 2.0 ports offer additional connection options. A COM and a TPM header and two SATA DOM power connections are also available.

Well equipped
Sufficient RAM stabilizes your server system and increases computing power. The JH11DSi-NT utilizes up to 4TB of Registered ECC DDR4 3200MHz RAM with up to 256GB of memory per module (depending on board revision).

Everything under control
PC Health Monitoring gives you an overview of all important parameters: CPU core voltage, fan status and speed control, CPU and chassis environment, temperature. The associated software offers you supporting software optimization options: Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN.
