Optiskais pārveidotājs LevelOne, 100 Mb/s

The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km.

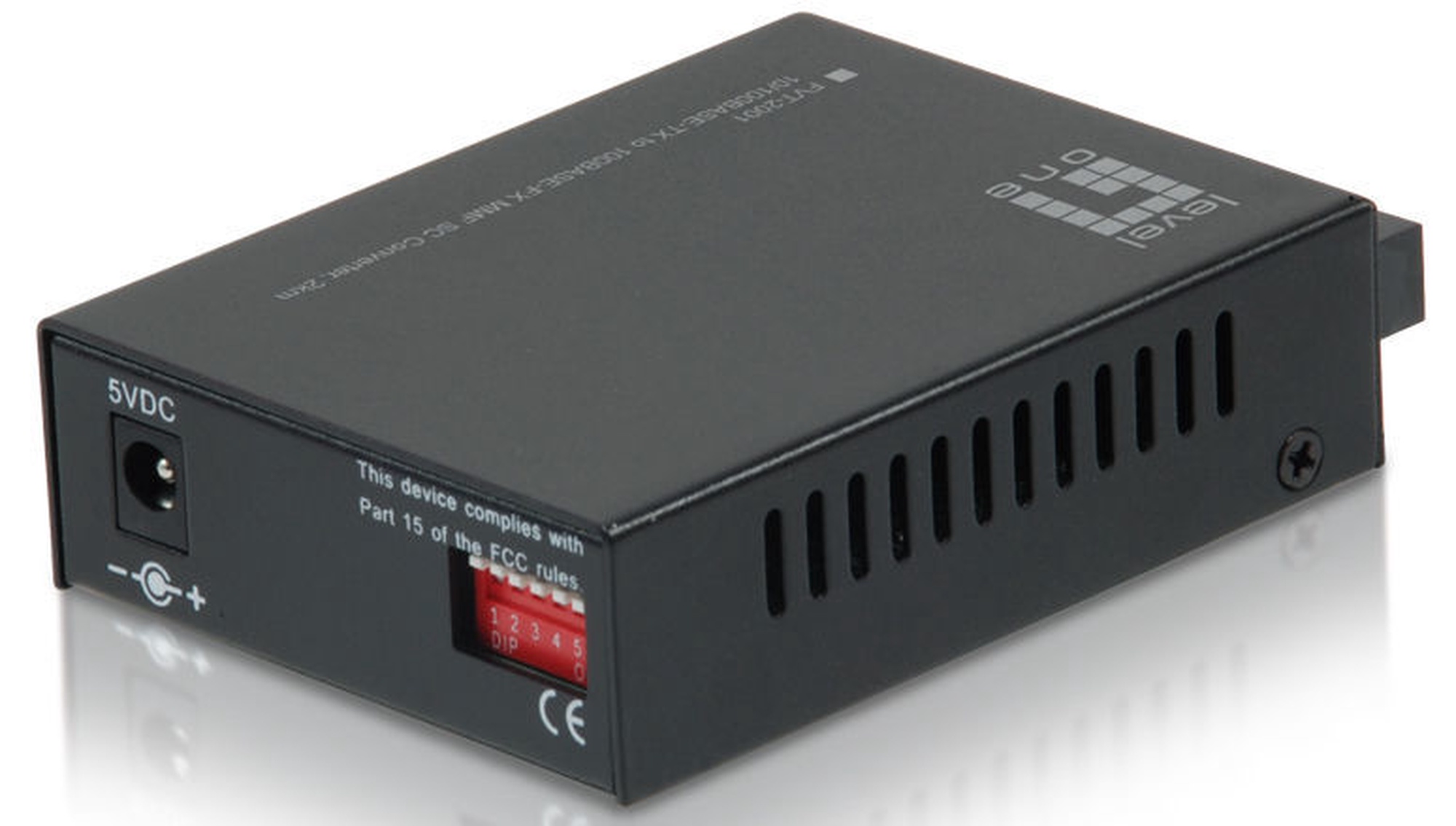

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.

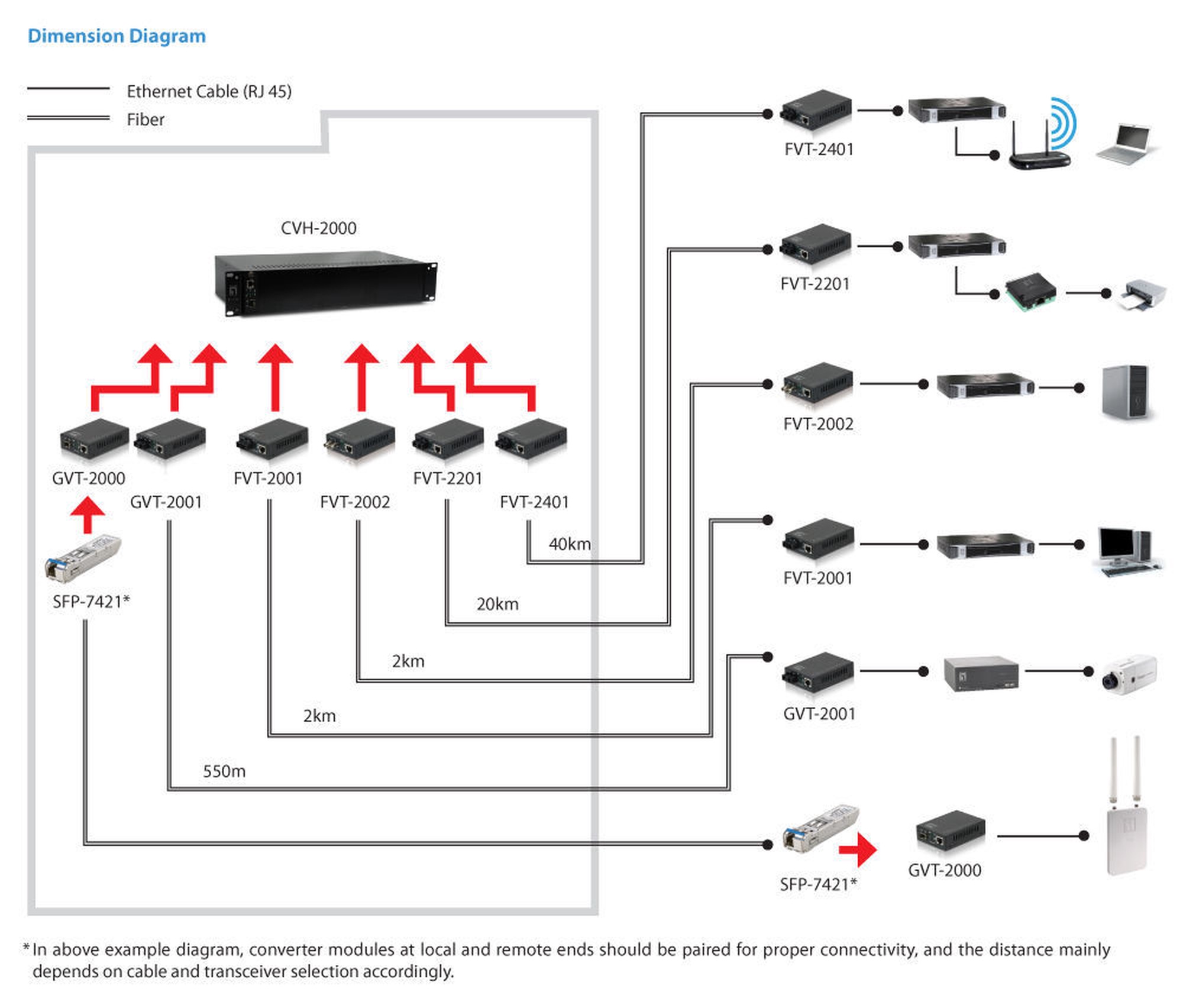

The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

General:
DIP Switch 1: LFP function
DIP Switch 2: Transmission Mode
DIP Switch 3: Auto/Force the UTP port work mode
DIP Switch 4: 10/100M for UTP port
DIP Switch 5: Full/Half Duplex mode for UTP port
DIP Switch 6: Normally close

Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)

Port:
1 x 100Base-FX Multi-mode duplex SC
Fiber cable: 50/125um, 62.5/125um
1 x 10/100Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation

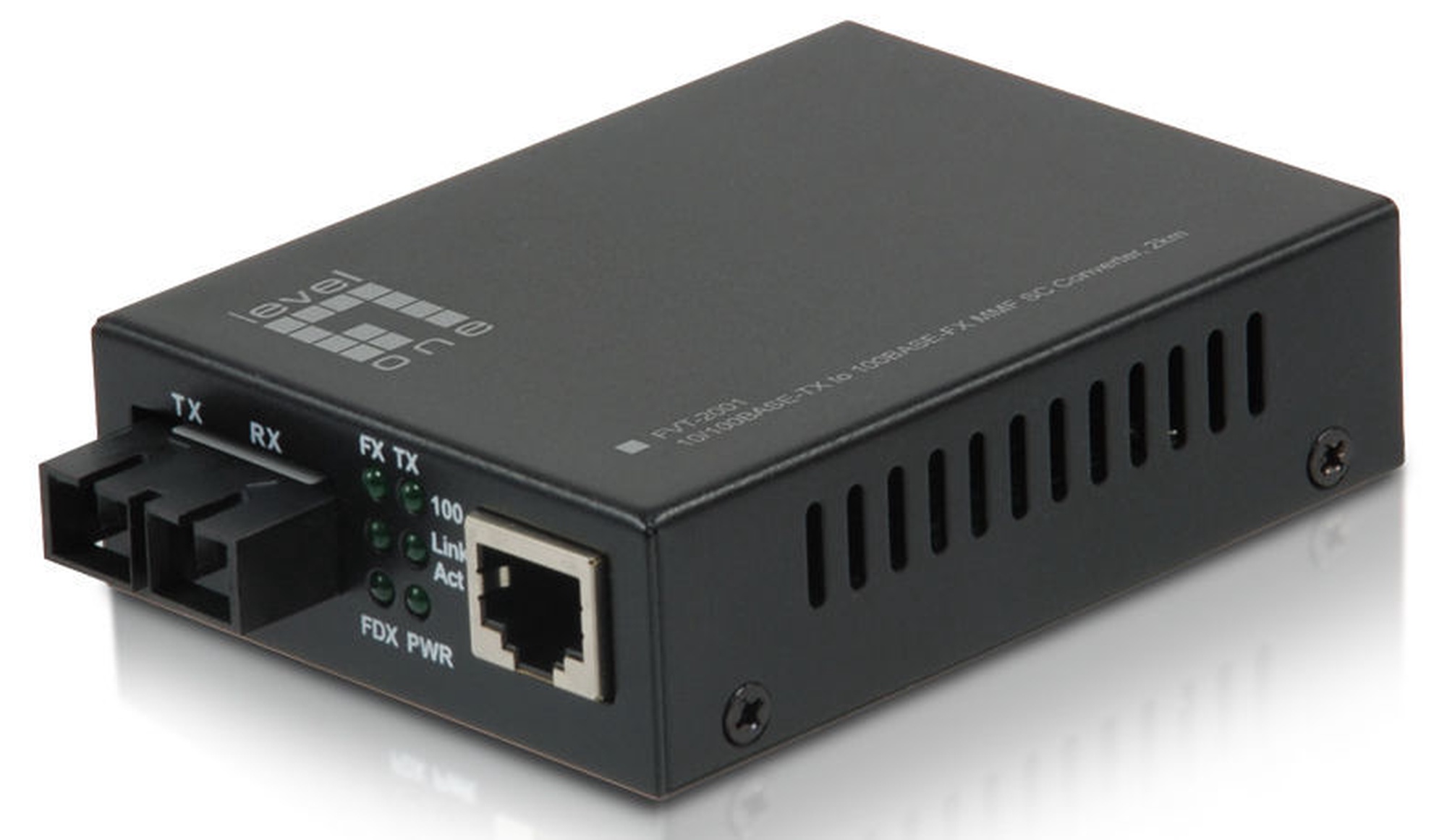

Indicator: PWR, TX (FDX, 100, Link/Act), FX (100, Link/Act)
Wavelength (nm): 1310nm
Transmission Method: Store and forward (Default)
Power Input: DC 5V/1A
Operating Temperature (°C):

Storage: -40 ~75 °C
Operating: -10 ~ 55 °C
Operating Humidity (Non-condensing): 5 ~ 90 %
Mount: Desk, chassis mounted
