Rezervuārs Singularity Computers, sudraba krās.

Protium Reservoir:

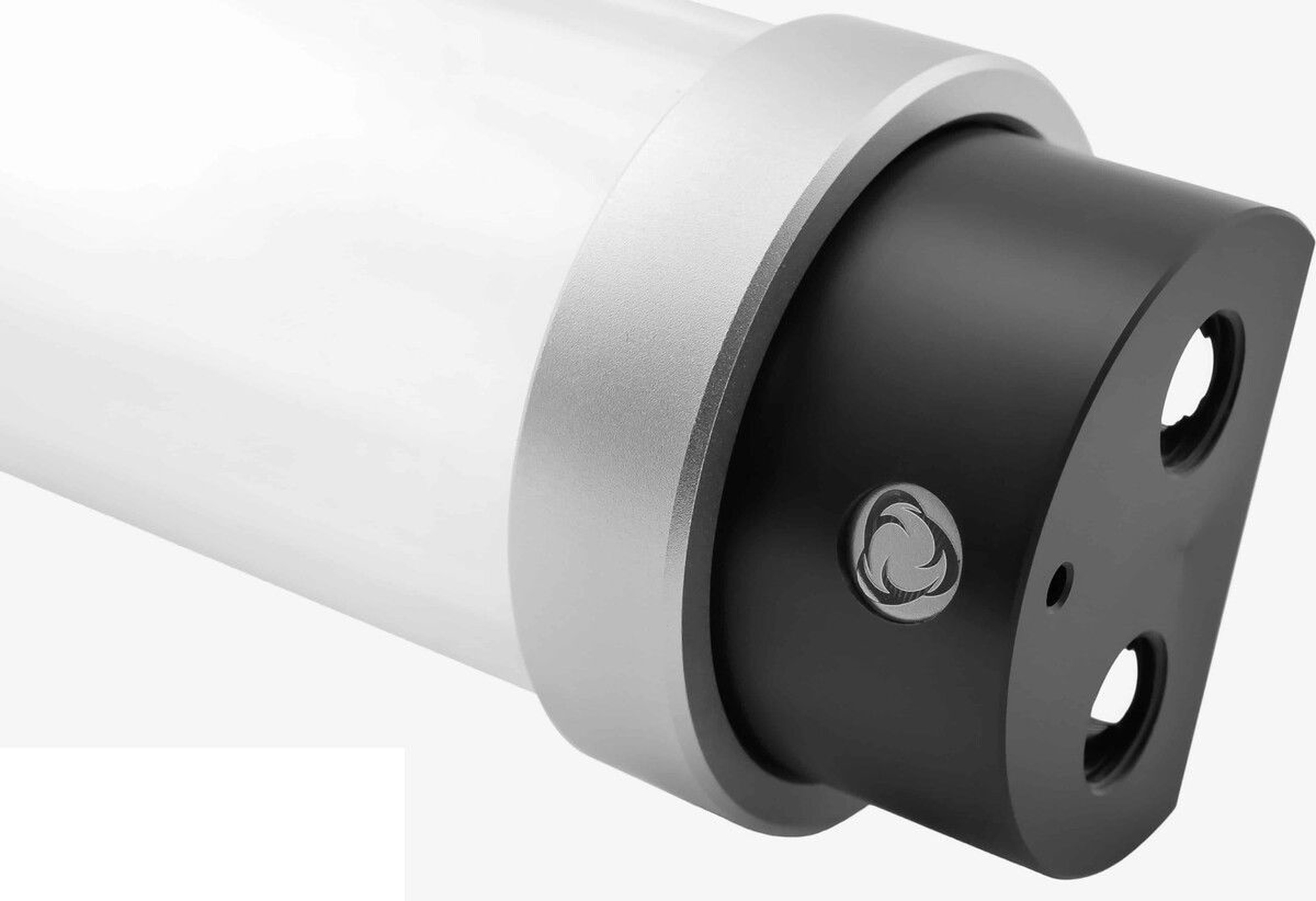

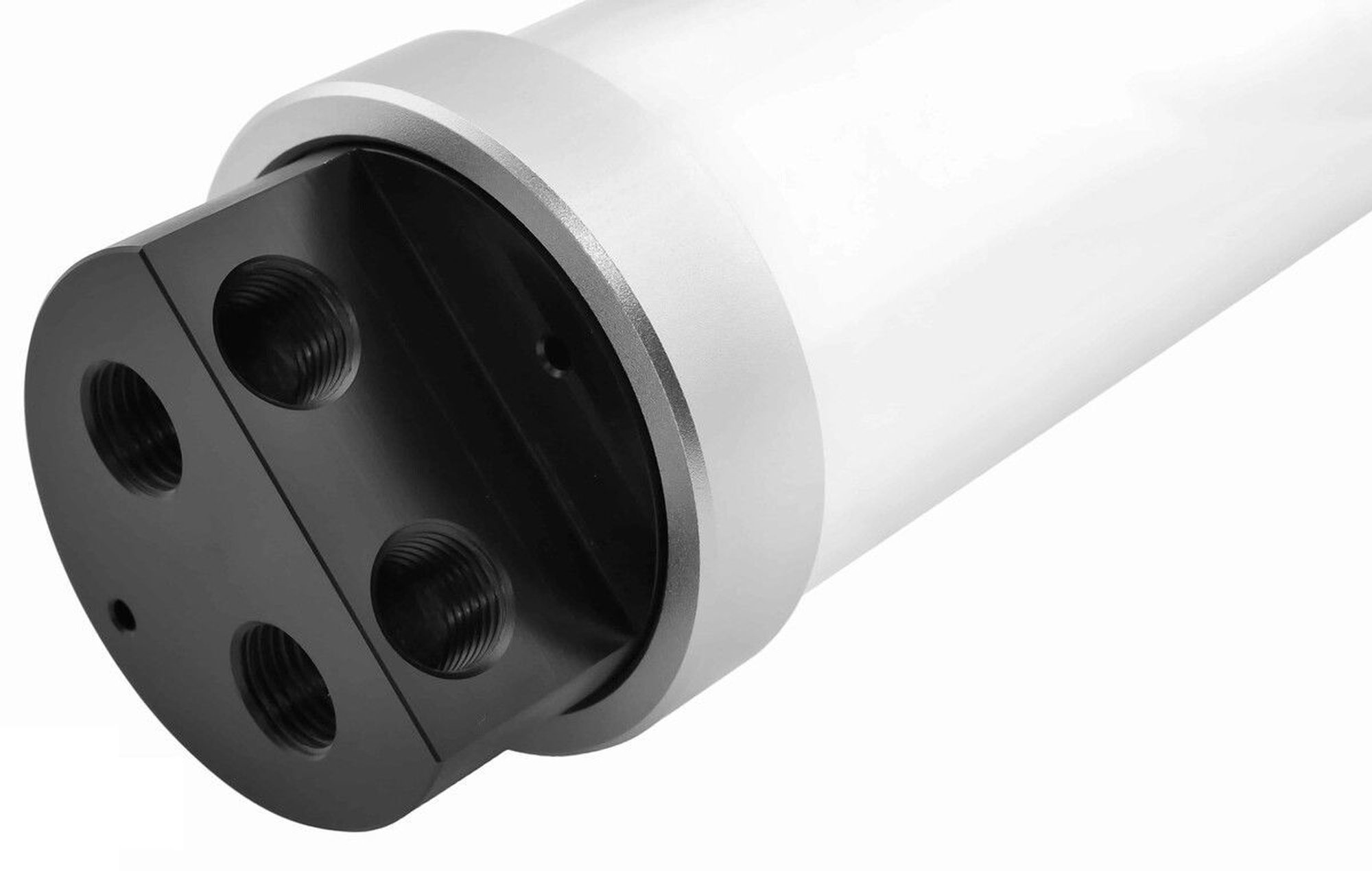

Protium reservoirs have 7 ports for maximum loop design options. On one end is a low profile three port cap and on the other end a 90 degree quad port cap. Protium has an aluminum retention ring design allowing the caps to be rotated 360 degrees to face any direction. The retention ring design also increases durability as it supports the acrylic reservoir tube thread. There is no acrylic on acrylic thread and the o-rings surface does not rotate on the o-rings which maximises the lifespan or the o-rings. We use our own specially developed clear silicon o-rings to match our acrylic components and for the higher ‘set point’ resistance of silicon. The quad port cap on the acrylic versions has two 3mm LED positions to create a lighting feature.

Quality:
Created with a manufacturing process used in industries such as aerospace. All components are carved from a solid block of material. Over engineered for maximum strength and lifespan. Anodised 6061 aluminium for the toughest and most resistant surface available. Stainless steel fasteners for maximum strength and corrosion resistance. Our designs are consistently improved and optimised.

Features:
Vastly increases inlet/outlet and loop design options.
Inlet/outlet positions at 90 degrees for a cleaner loop.
Caps can be rotated to face any direction.
No acrylic on acrylic threads.
O-ring surfaces do not rotate on the o-ring.
CNC milled Acrylic or Acetyl from a solid block.
CNC lathed aluminum retention rings.
7 ports. 3 port low profile cap and quad port 90 degree cap.
Just two components to create a full pump and reservoir combination.
Caps Material/Finish Options: Acrylic, Frosted Acrylic, Black Acetyl.
Retention Ring Color Options: Black, Silver.
3mm LED mounting positions on both caps.
The frosted acrylic version acts as a light diffuser.
Can be used standalone or with our pump components.
16mm hardline compression fittings fit side by side and on all ports directly.

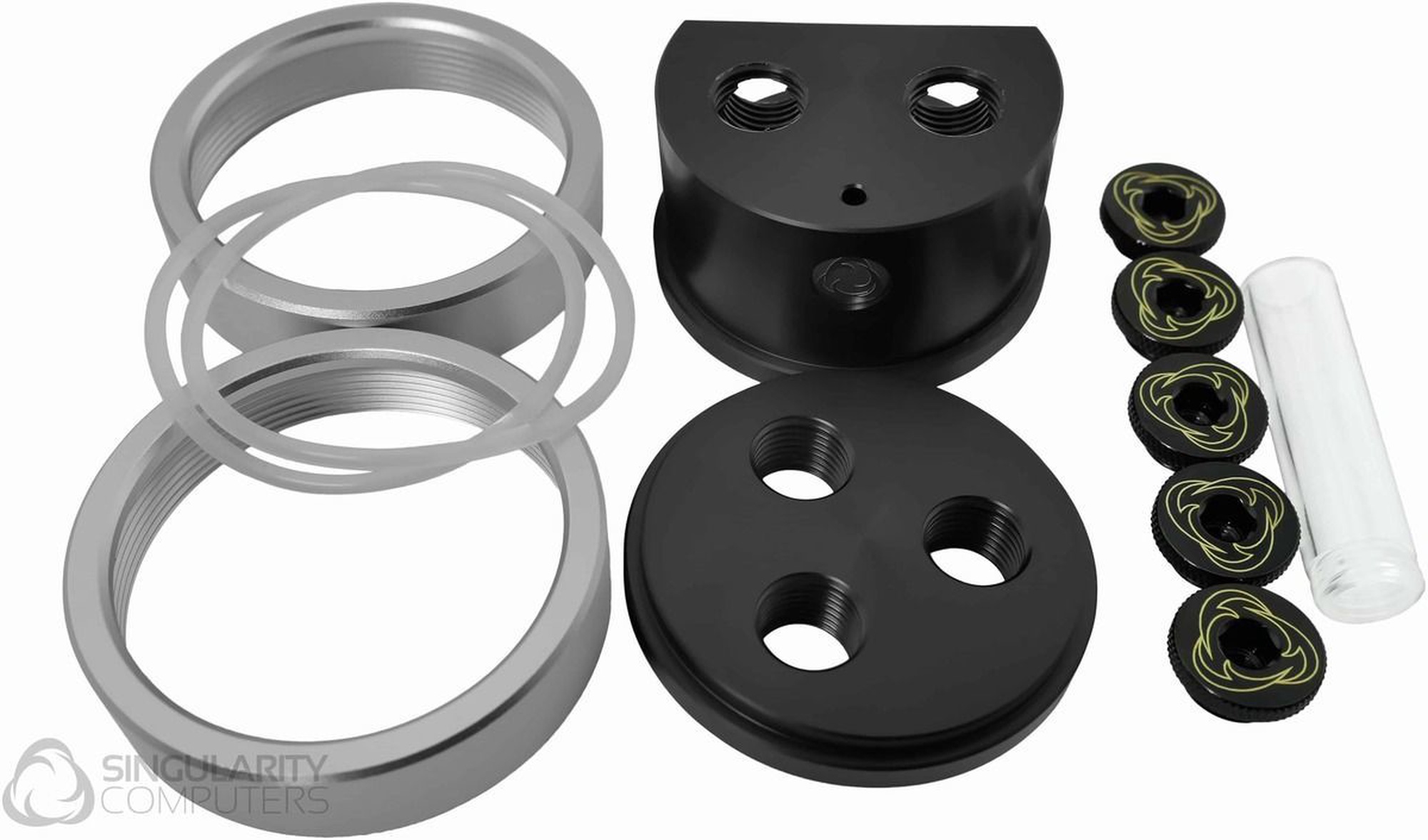

Included Items:

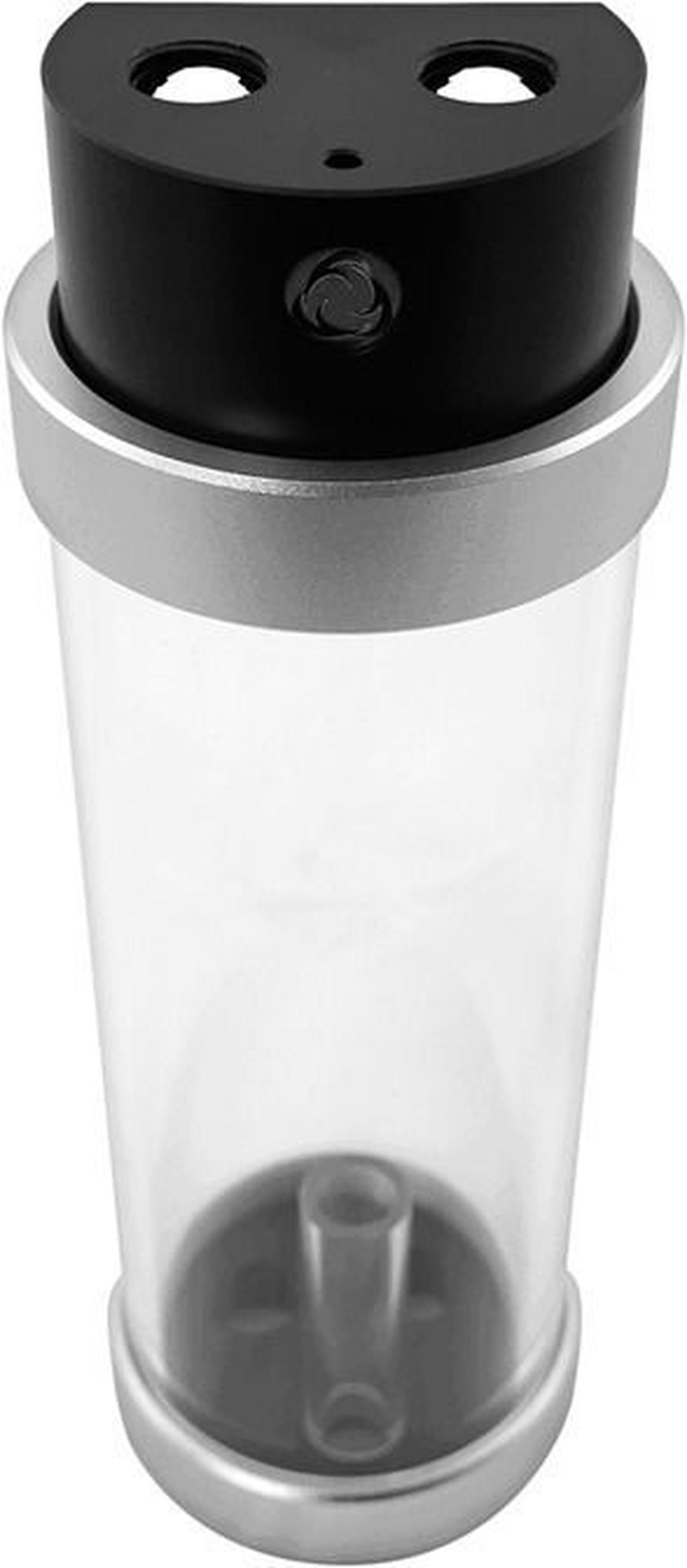

60mm Acrylic Reservoir Tube (External Threads).
Aluminum Retention Rings: x2.
90 Degree Quad Port Cap.

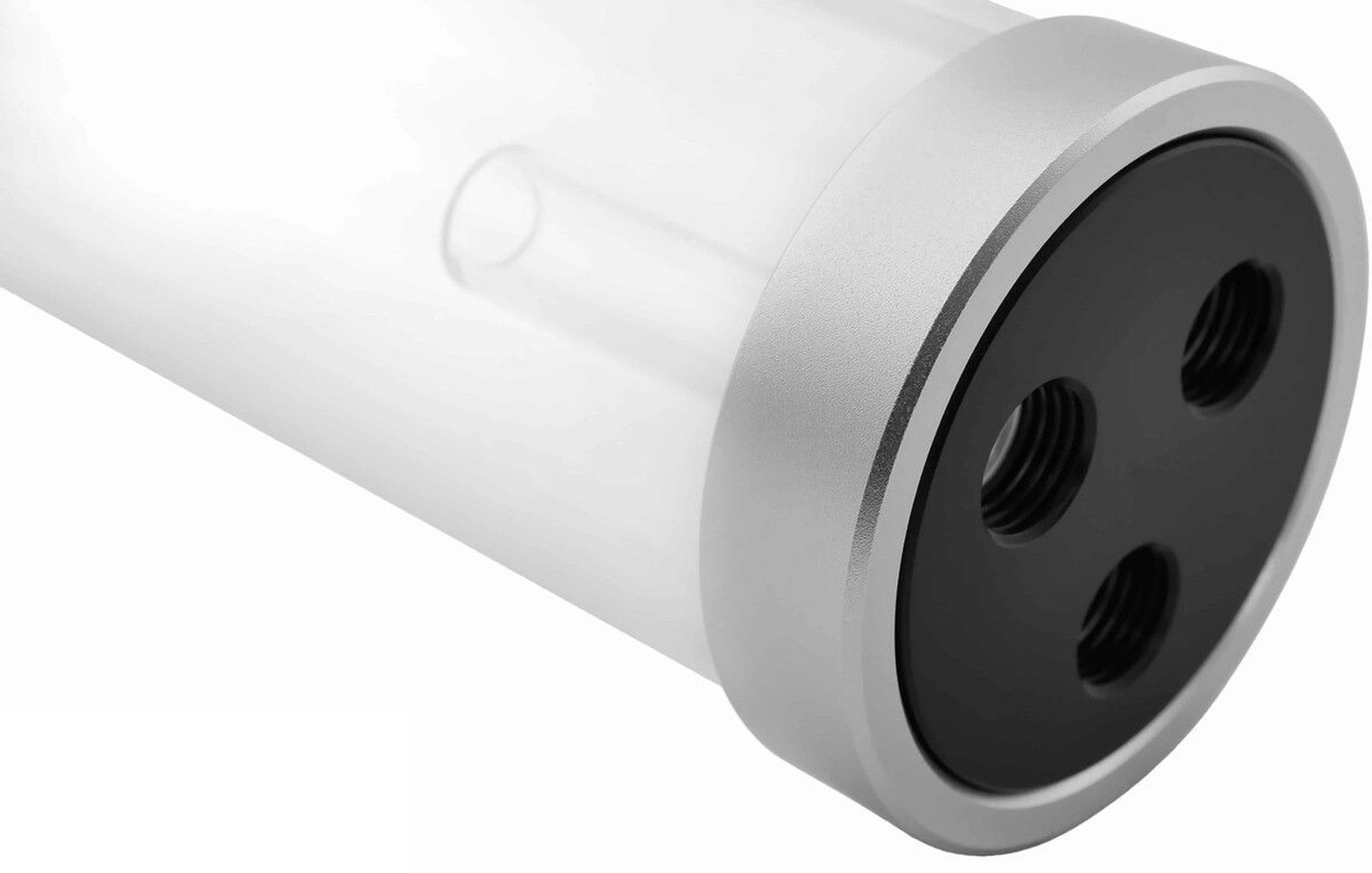

Triple Port Cap.
16mm Internal Acrylic Flow Tube.
G1/4” Stop Fittings: x5.
Silicon O-rings x2.

Create a Combo:

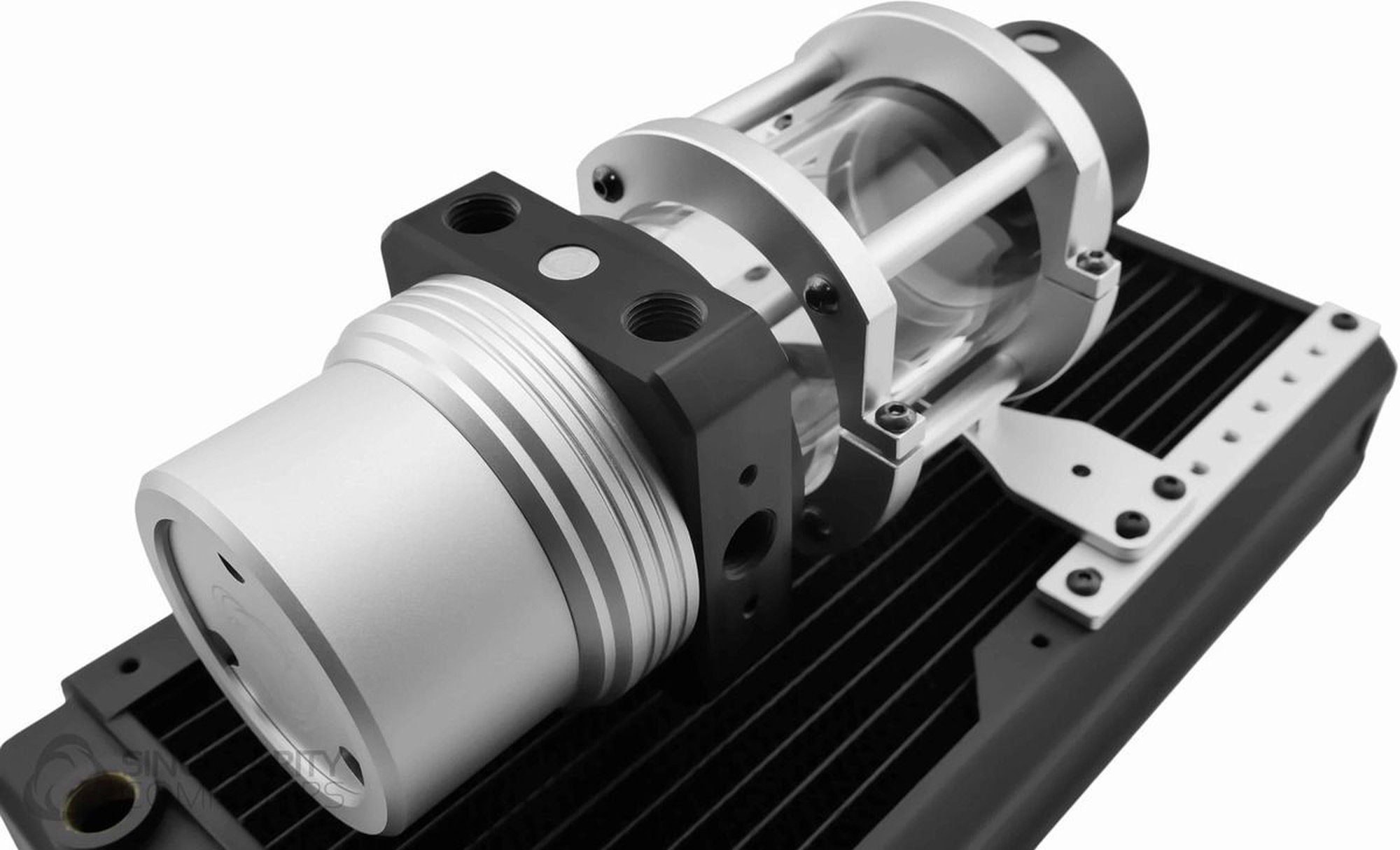

To create the Protium D5 Pump and Reservoir Combo you need:
Protium D5 Pump Top.
Protium D5 Pump Cover
Protium Reservoir.
D5 Pump (Any Standalone D5 Pump)

Specifications:
D5 Pump & Reservoir Combos (Full assembly including Quad Port. For SC Stop fitting add 5mm):
100mm = 210mm
150mm = 260mm
200mm = 310mm
250mm = 360mm
300mm = 410mm
350mm = 460mm
