Rīks Azimut Standard TOOL214, tērauds, melna krās./hroma krās.

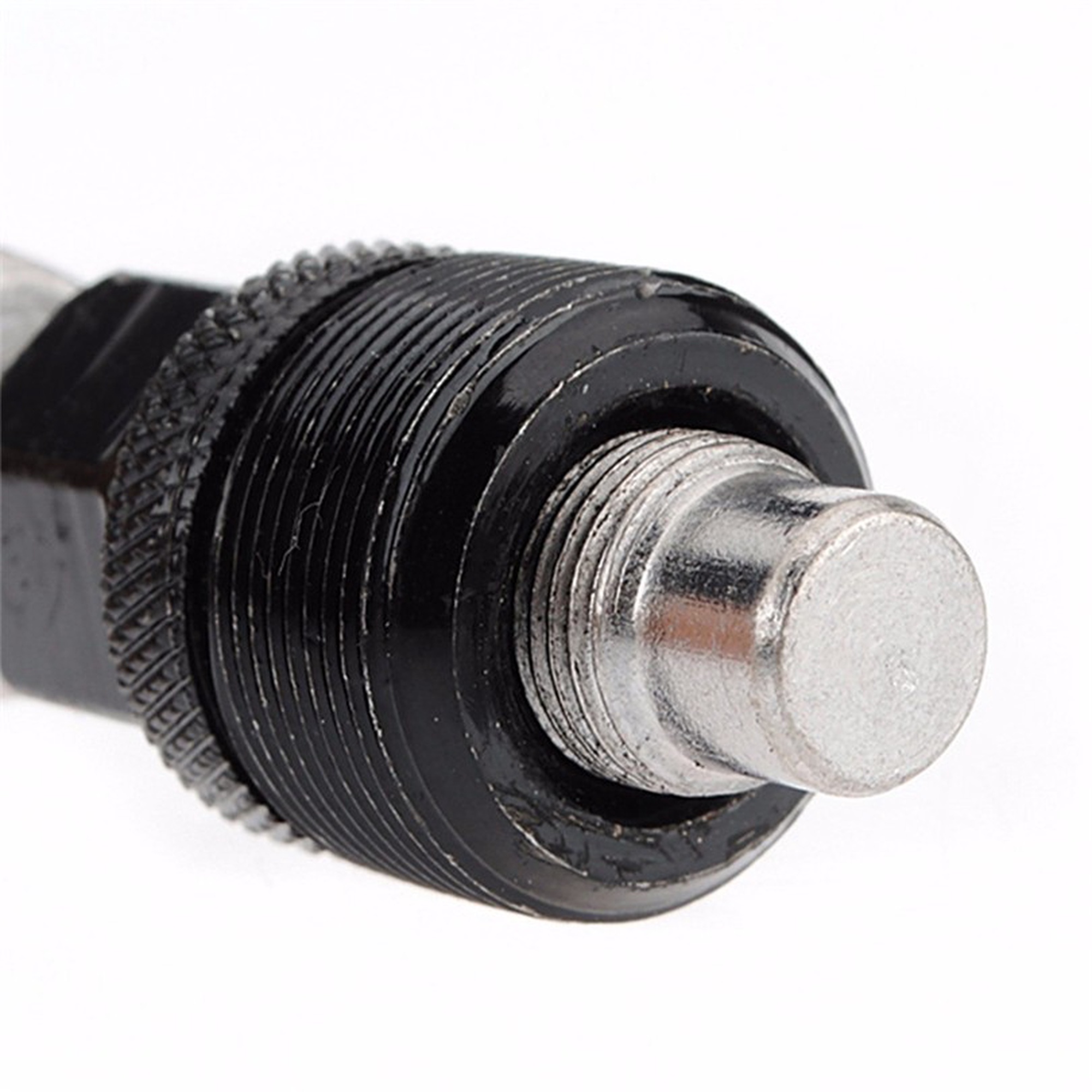

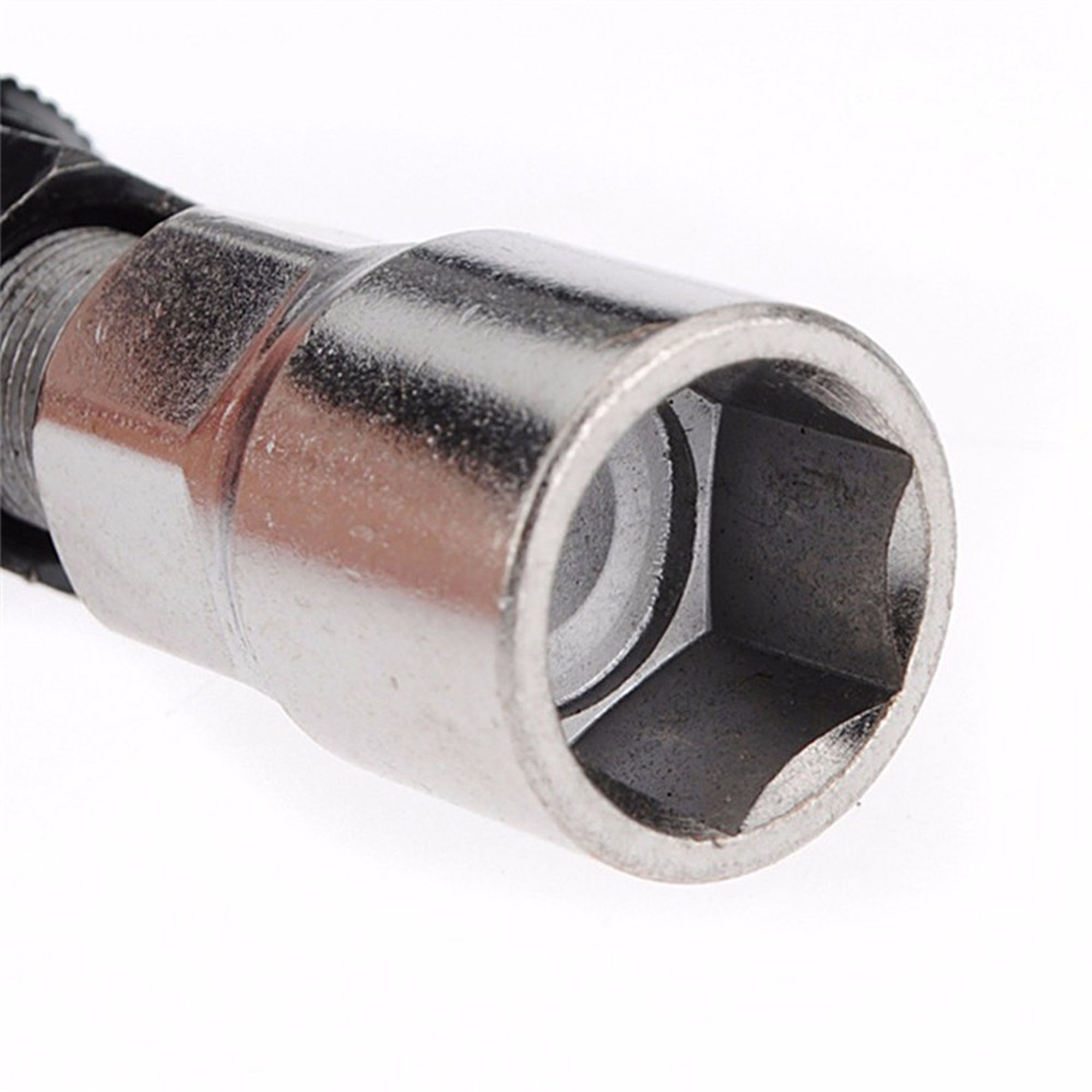

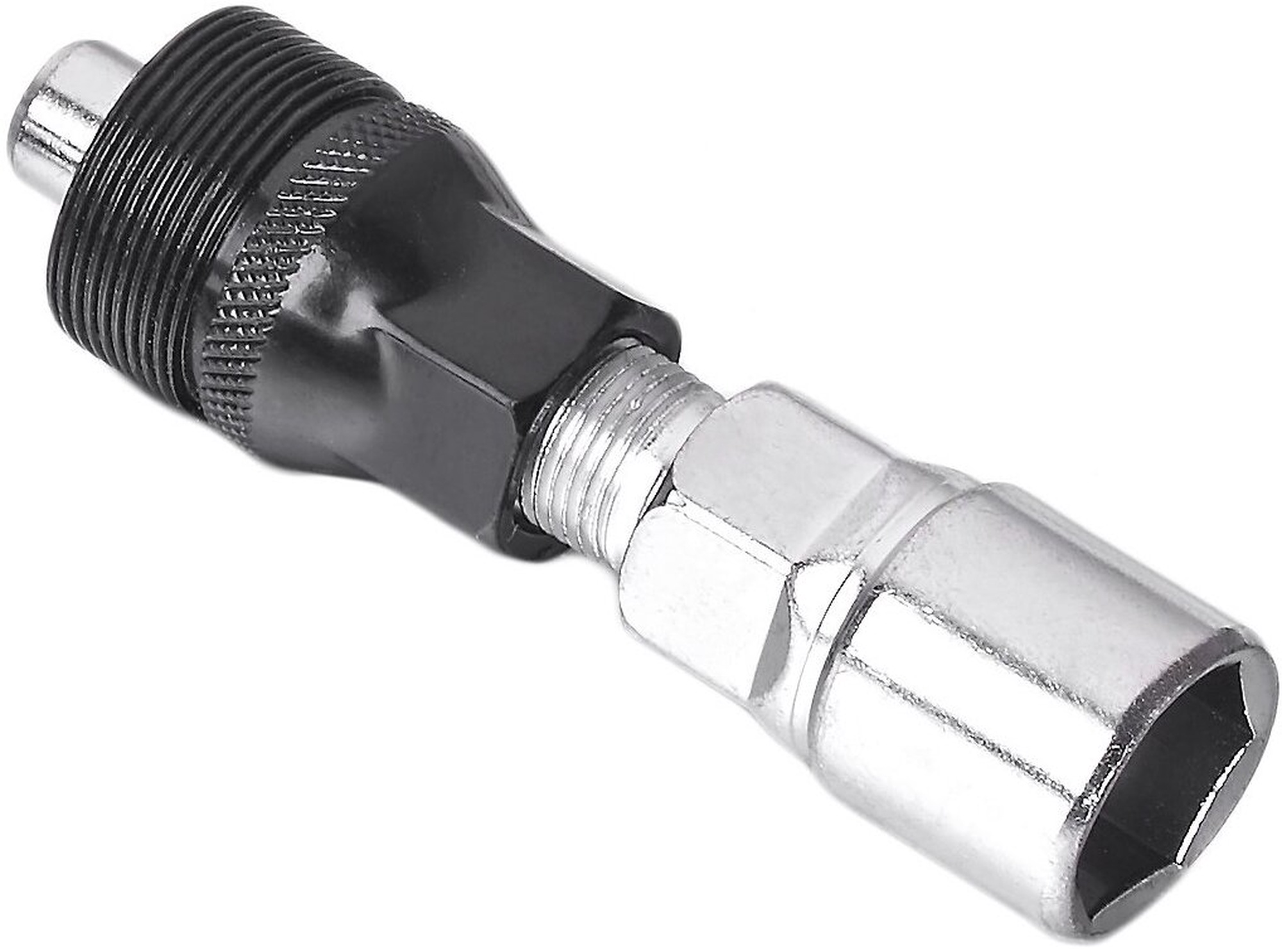

This robust tool is designed for removing and installing Shimano/ISIS cranks. This tool is a must in every bike enthusiast's toolbox. Only suitable for Square Taper shaft couplings. Does not work with OCTALINK.

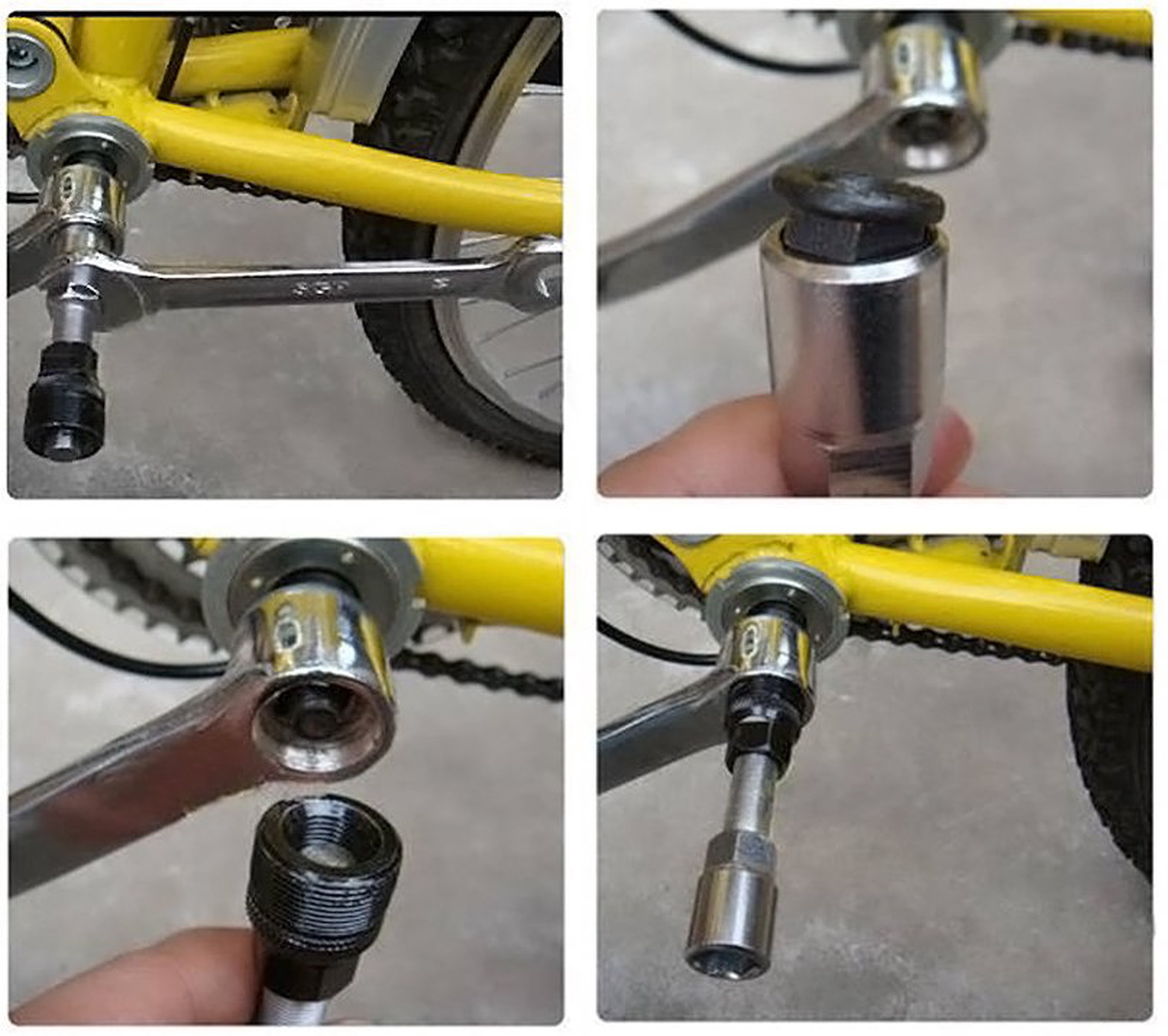

Instructions (additional tools required):
1. If present, remove the plug covering the crank bolt
2. Remove the screw with the silver part of the tool and a 15mm spanner (or hex key)
3. Unscrew the black part of the tool almost all the way
4. Screw it into the place where you unscrewed the crank bolt
5. Using a hex key or a 15mm wrench, turn the silver part of the tool clockwise until the crank comes off Attention!

Before using additional tools, always first adjust the thread by turning slowly by hand. Otherwise, immediately turning with force with a 15mm or hex key can damage the crank thread.
