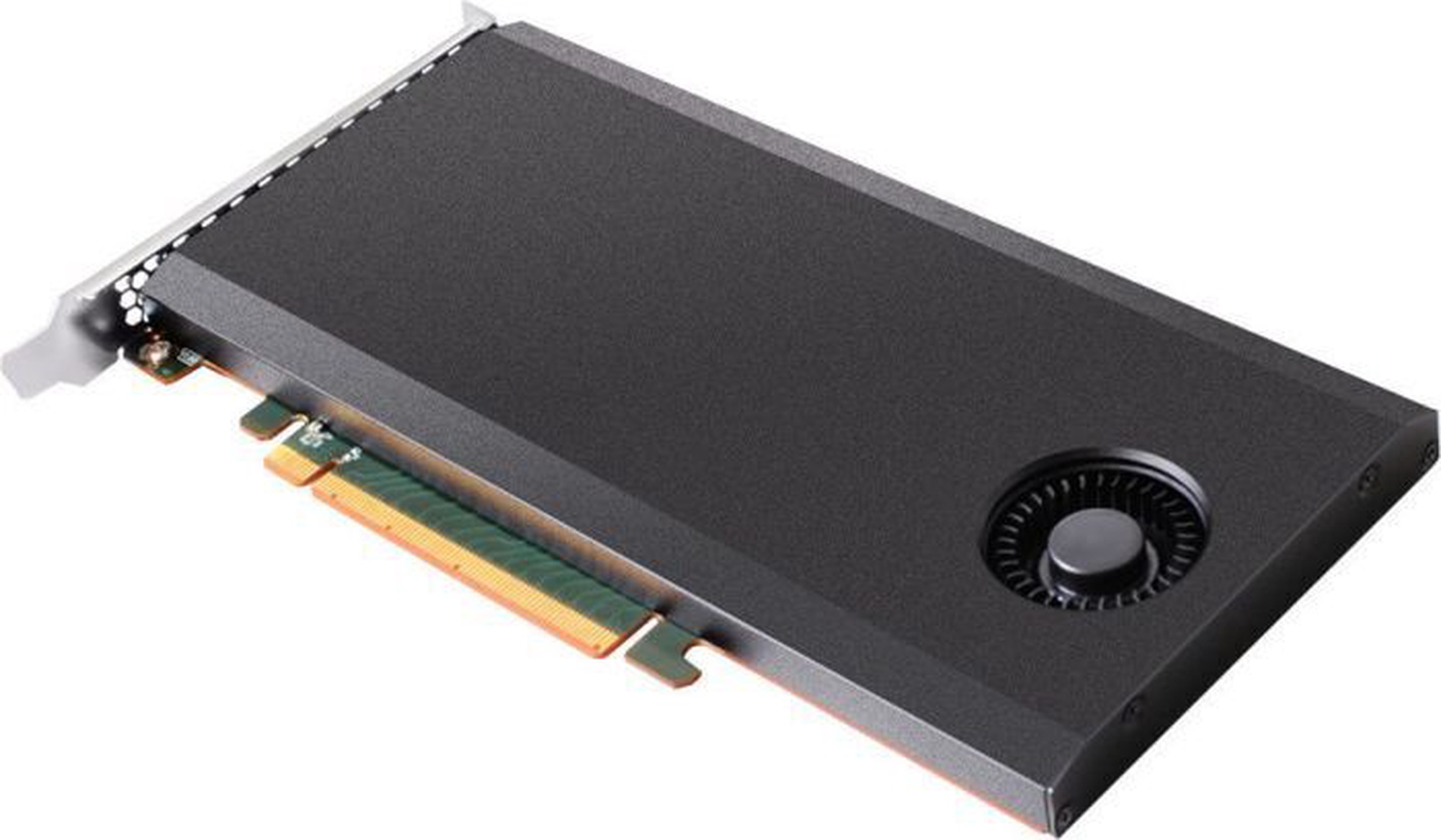

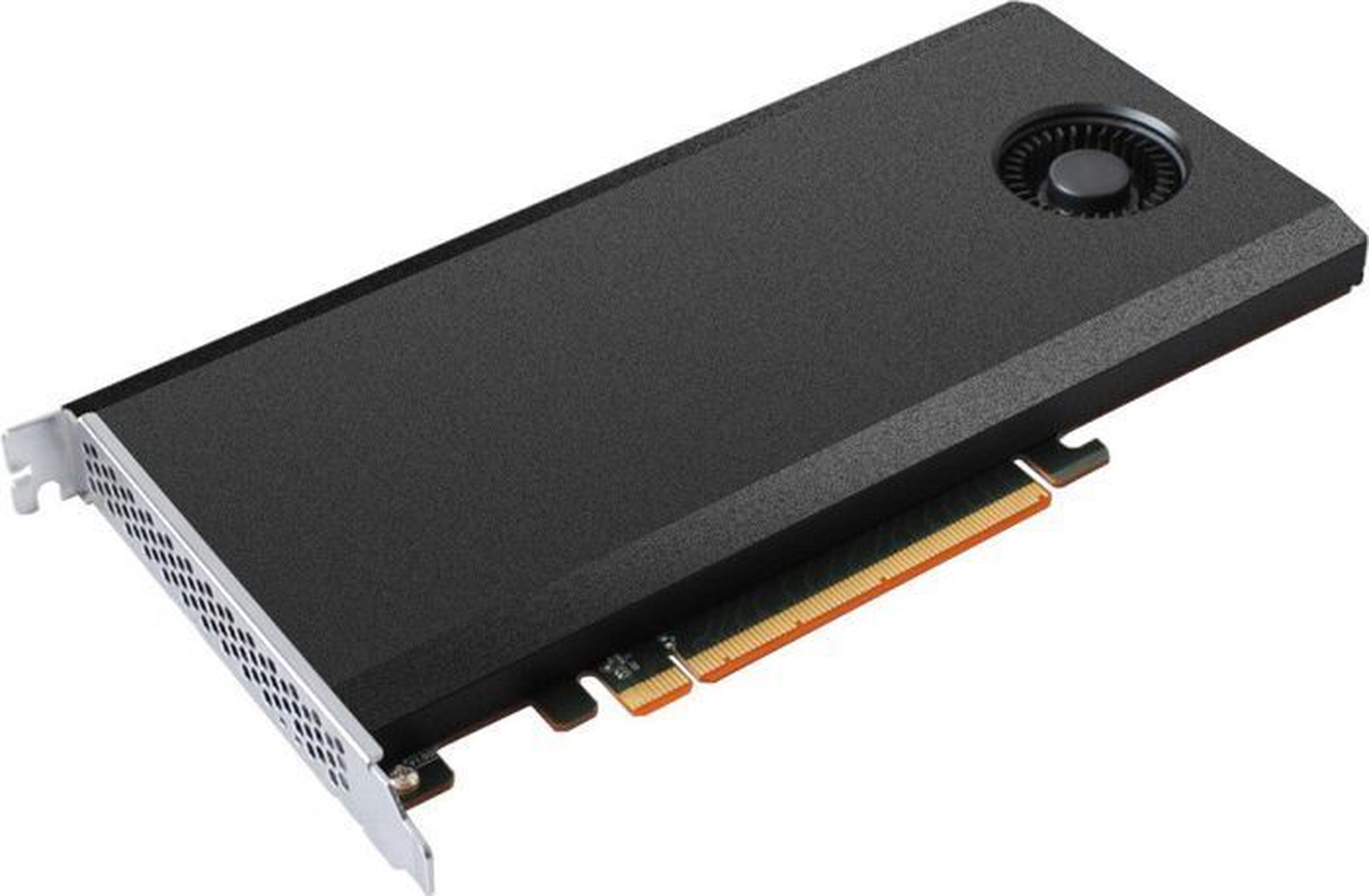

Powered by our next generation NVMe hardware architecture, industry-proven RAID stack, and comprehensive boot capability, the SSD7103 delivers unbeatable performance and versatility, all packaged in a compact device no larger than your average video adapter. The SSD7103 is a direct replacement for the SSD7102, and was designed for easy integration into any Intel based and AMD X399 desktop, server or workstation PC with a free, dedicated PCIe 3.0 x16 slot, and can deliver up to 14,000MB/s of transfer performance and support up to 4 individual boot volumes, in single-drive or RAID modes.

Like every HighPoint NVMe solution, the SSD7103 benefits from our market-proven, performance-focused NVMe hardware architecture, which delivers end to end PCIe 3.0 x16 bus bandwidth. 4x dedicated lanes are allocated to each M.2 port to ensure each SSD can interface directly with the host system’s CPU for maximum transfer performance, and immediate response time.

Unlike the majority of motherboard-based NVMe solutions, the SSD7103 is capable of supporting any mainstream MLC, TLC & QLC M.2 SSD in today’s marketplace. Customers are free to mix and match up to four drives to meet each application’s budget, performance or capacity requirement. The SSD’s can be configured to operate independently as either storage or boot volumes, or combined into one or more RAID arrays.
The SSD7103 is a simple NVMe performance upgrade for workstation and server platforms. Instead of a costly, time consuming motherboard upgrade, customers can easily integrate a compact PCIe device into their existing infrastructure. It enables any system with a current Intel-based motherboard to support bootable NVMe RAID configurations.

The SSD7103 is the industry’s fastest and most versatile NVMe-based booting solution. The four M.2 channels can support individual boot drives or multiple bootable RAID arrays. Customers can easily tune the NVMe configuration for maximum performance, security or a combination of both.

Expanded Compatibility

The second generation SSD7103 was designed for easy integration into industry standard motherboard platforms using off-the-shelf M.2 SSD’s. It has been extensively tested with a wide range of commercially available M.2 NVMe drives from all major manufacturers, including MLC, TLC & QLC models, in a variety of hardware environments across both Windows and Linux platforms.

The SSD7103 supports any industry standard M.2 form factor including 2242, 2260, 2280, and 22110. The first two digits of each form factor represent the width of each SSD, in millimeters (standardized for all models). The remaining digits represent the length of each SSD.

Unlike many NVMe controllers or solutions, which are often restricted to specific motherboards or chipsets, the SSD7103 is compatible with Intel and AMD X399 based workstation and server platforms. Its blazing fast performance, combined with comprehensive NVMe boot capability, makes it an ideal fit for nearly any modern computing platforms with a free PCIe 3.0 slot with dedicated x16 lanes
