Tīkla produktu piederums LevelOne

The HVE-9005 HDMI Extender kit over Cat.5 with HDBaseT-Lite & Bi-directional IR boosts your video/audio transmission up to a distance of 60m (198ft) in HDTV 1080p with 48-bit color depth. HVE-9005 also supports the most advanced 3D video format compliant with HDMI specifications and therefore guarantees the highest 3D video compatibility on the market. A cost-effective solution requiring only one Cat.5/5e/6 cable, allowing users to easily extend an HDTV installation from a DVD or Blu-ray Disc player, PS3, PC, or any other sources compliant with TMDS. The HVE-9005 sends a perfect quality signal to remote display monitors including HDMI or DVI-enabled TV sets or LCD PC monitors.

The advanced design and latest HDMI technology of HVE-9005 supports deep color video, DTS-HD or Dolby TrueHD audio as well as HDCP. This flexibility makes HDCP-compliant DVD or PS3 players transmit the highest quality video and audio for a greater distance when integrating several separate components, all at a minimal cost. In addition, HVE-9005 is equipped with a bi-directional IR pass-through path, allowing users to boost IR control distance up to 60m (198 ft) and making IR control, including HDMI signals, possible through a single Cat.5/5e/6 cable.

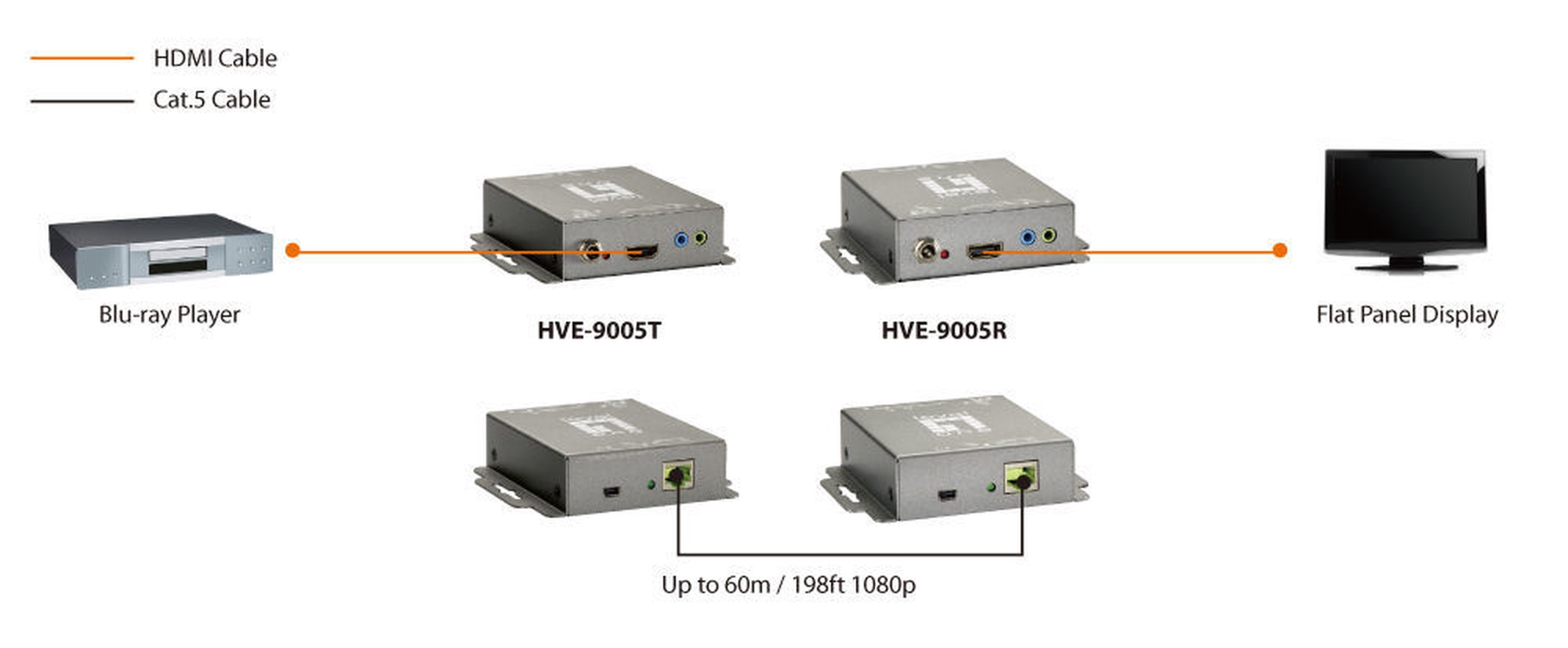

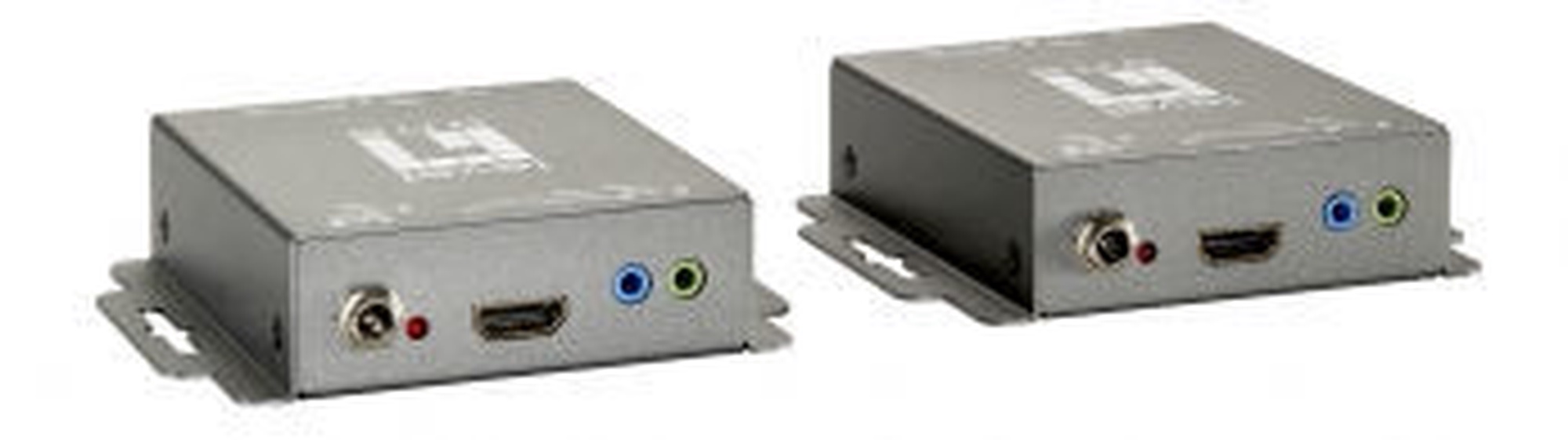

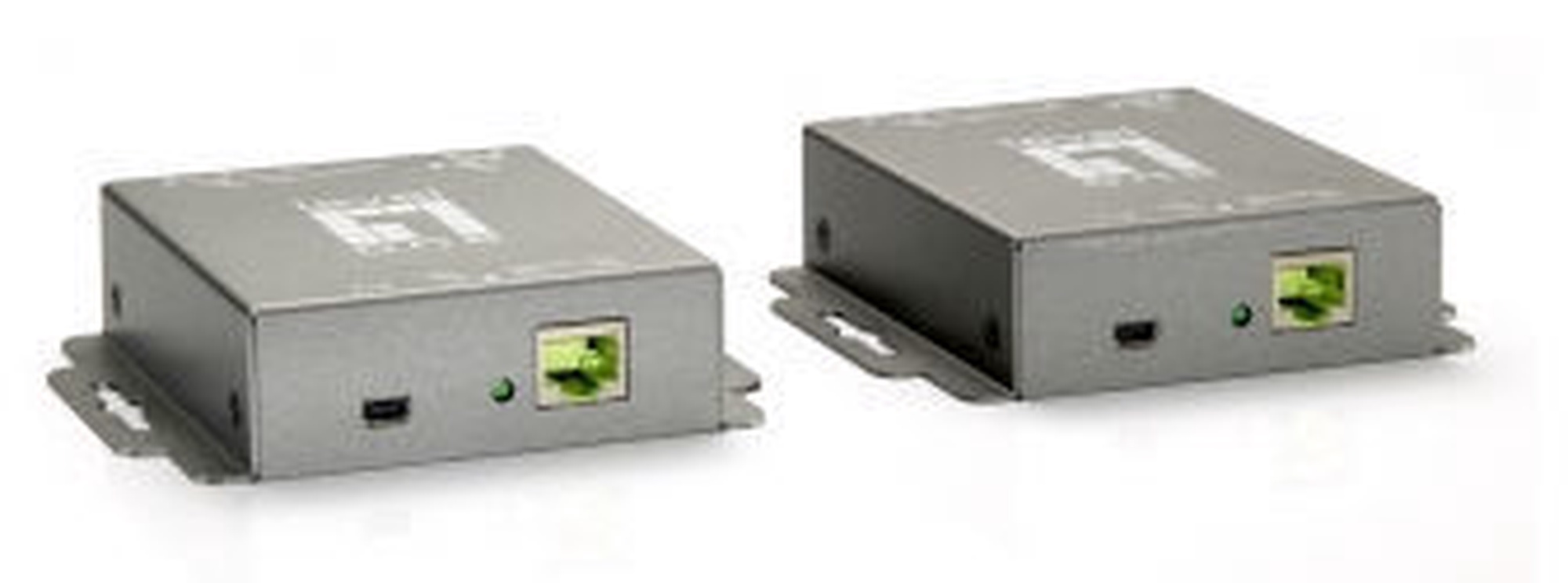

The HVE-9005 includes two units: a transmitting unit (HVE-9005-TX) and receiving unit (HVE-9005-RX). The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. HVE-9005 offers the most convenient solution for digital signage installations with a long distance A/V transmission path, and with 10G transmission-width readiness, HVE-9005 is primed for your next-generation HDMI applications!
