Tīkla produktu piederums LevelOne

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.

The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.

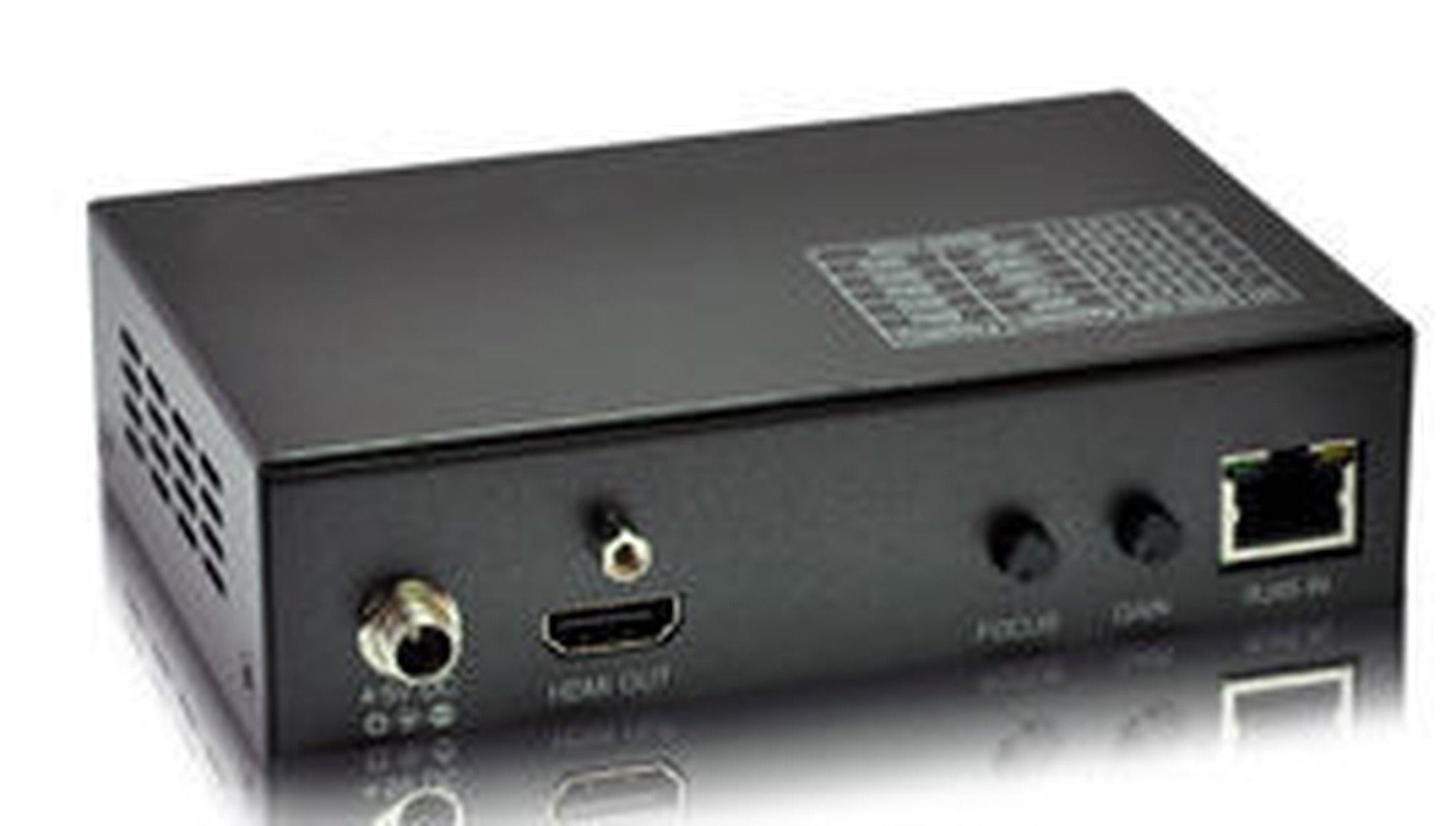

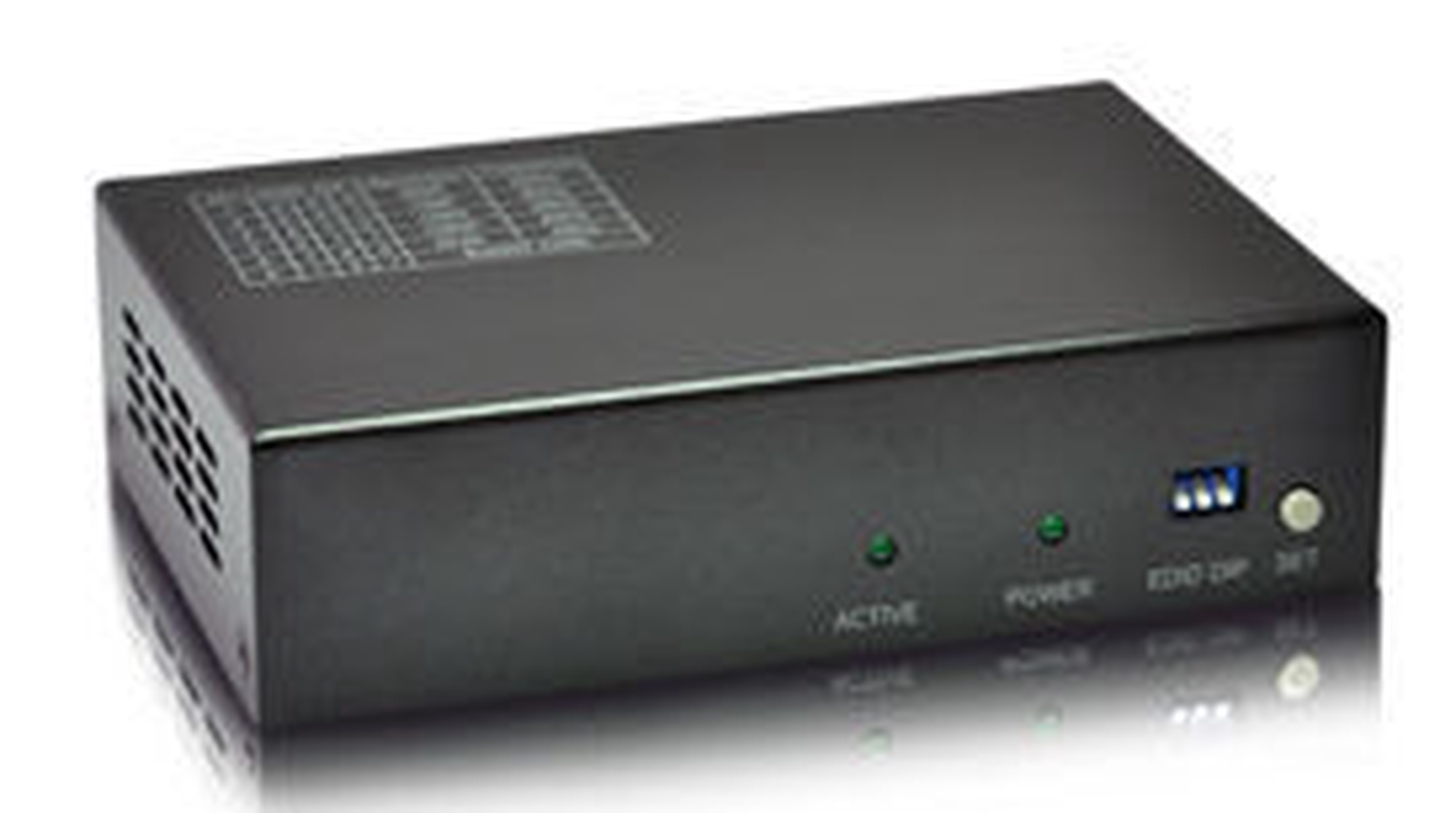

The LevelOne HVE-9111R is a HDMI Receiver, supports HDMI output resolution of up to 4K.

Port:
1 x RJ45 input
1 x HDMI output

Button/Knob:
1 x Focus knob
1 x Gain Knob

Resolution: 4k x 2k @30 Hz
Power Input: DC 5V/2A
Power Consumption: 1200mA
Bandwidth: 25-340MHz
Operating Temperature (°C): Operating: 0°C ~ 48°C / Storage: -20°C ~ 60°C
Operating Humidity (Non-condensing): 10~80% RH
