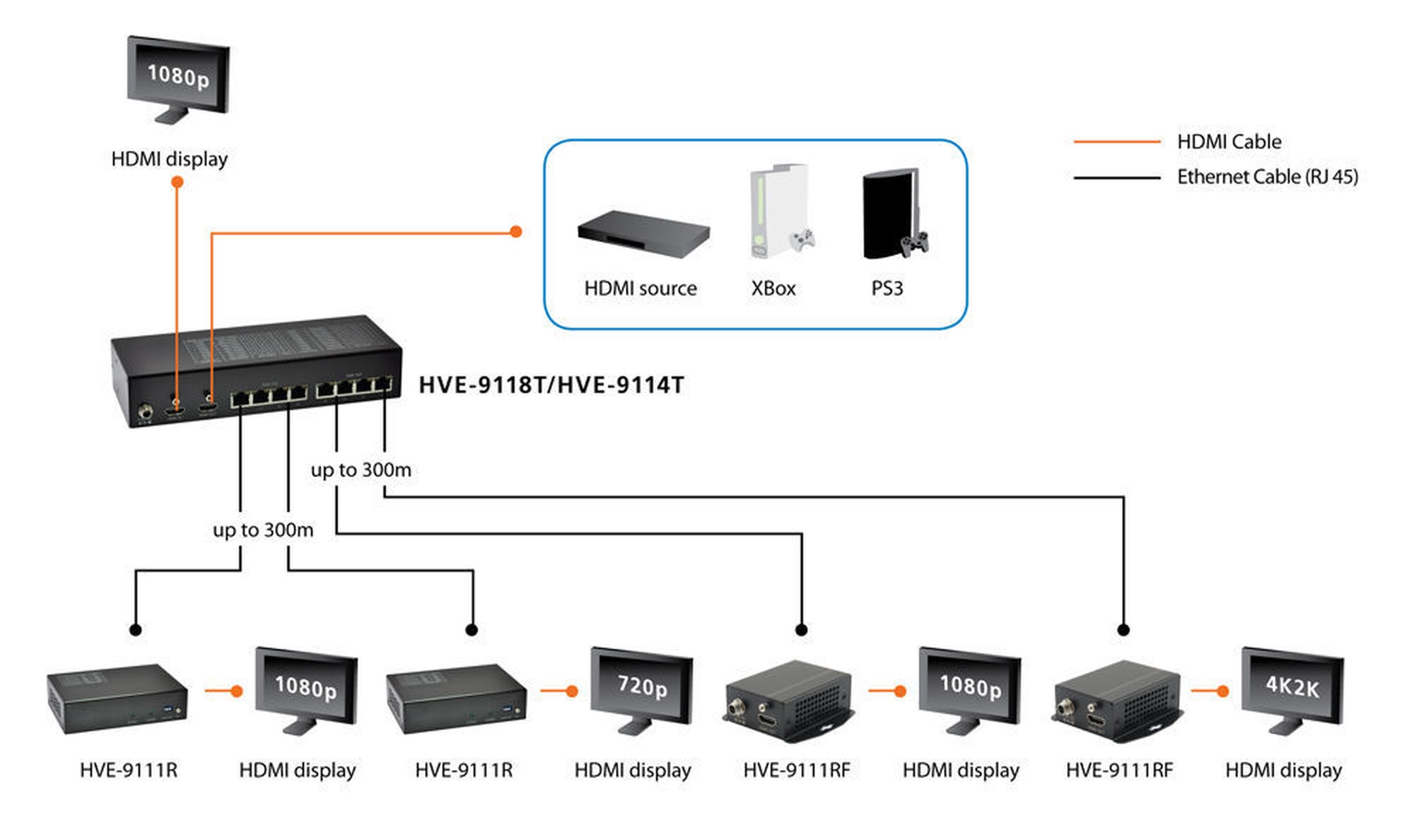

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.

The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.

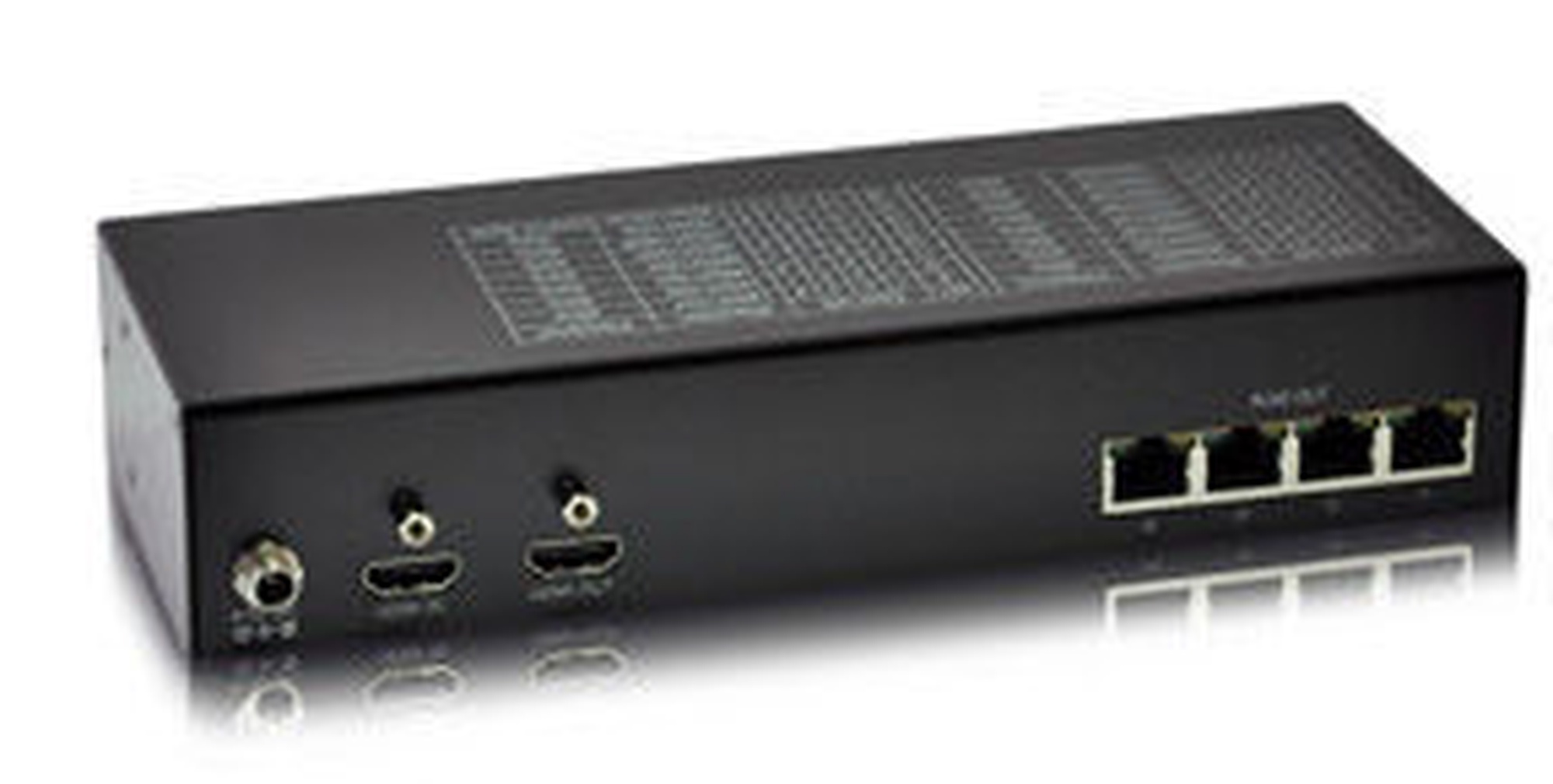

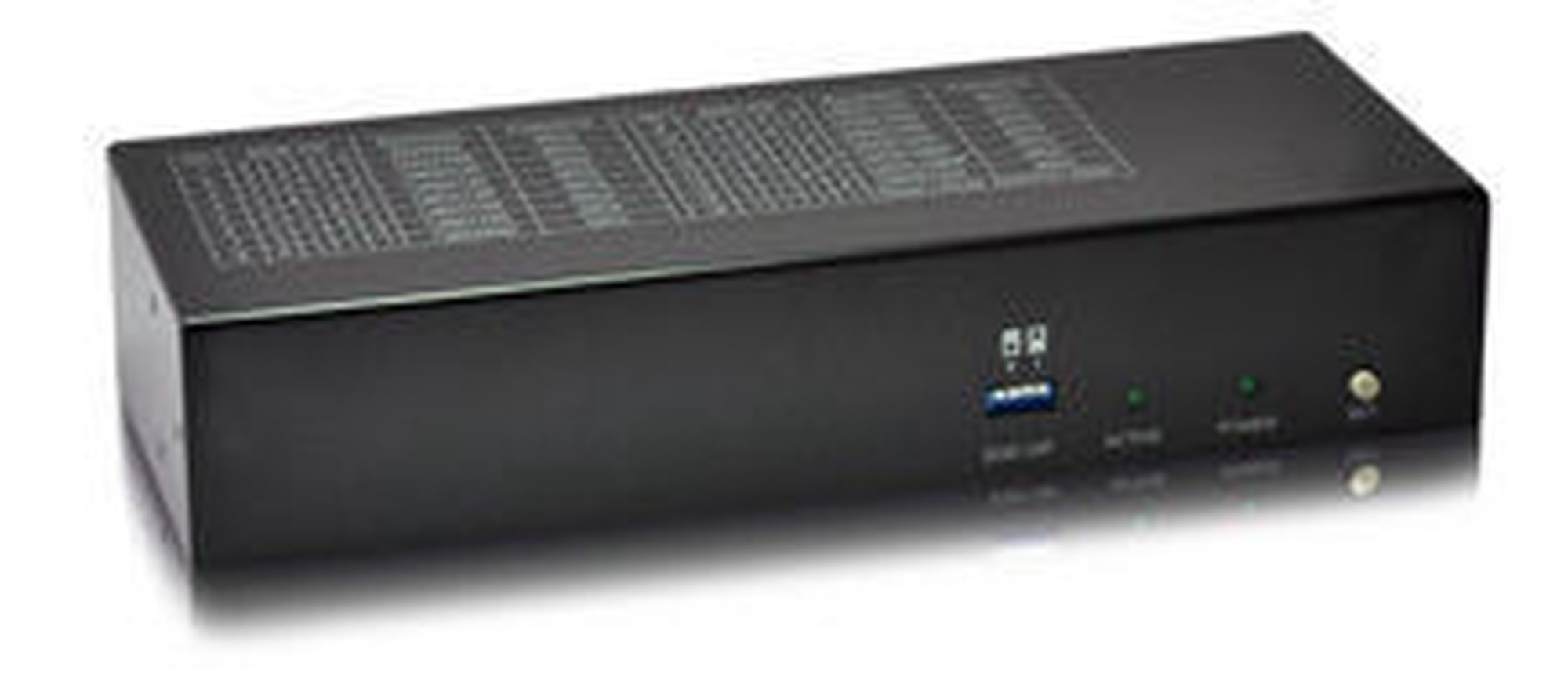

The LevelOne HVE-9114T is a HDMI Transmitter with 1 HDMI local output port and 4 link ports for connecting to 4 receivers.

Port:
1 x HDMI input
1 x HDMI local output
4 x RJ45 output
Resolution: 1920 x 1200@60Hz/1080P (Local HDMI output)
Power Input: DC 5V/2A
Power Consumption: 800mA
Bandwidth: 25-340MHz
Operating Temperature (°C): Operating: 0°C ~ 48°C / Storage: -20°C ~ 60°C
Operating Humidity (Non-condensing): 10~80% RH
